Module Power, Ground, Serial Data and MIL

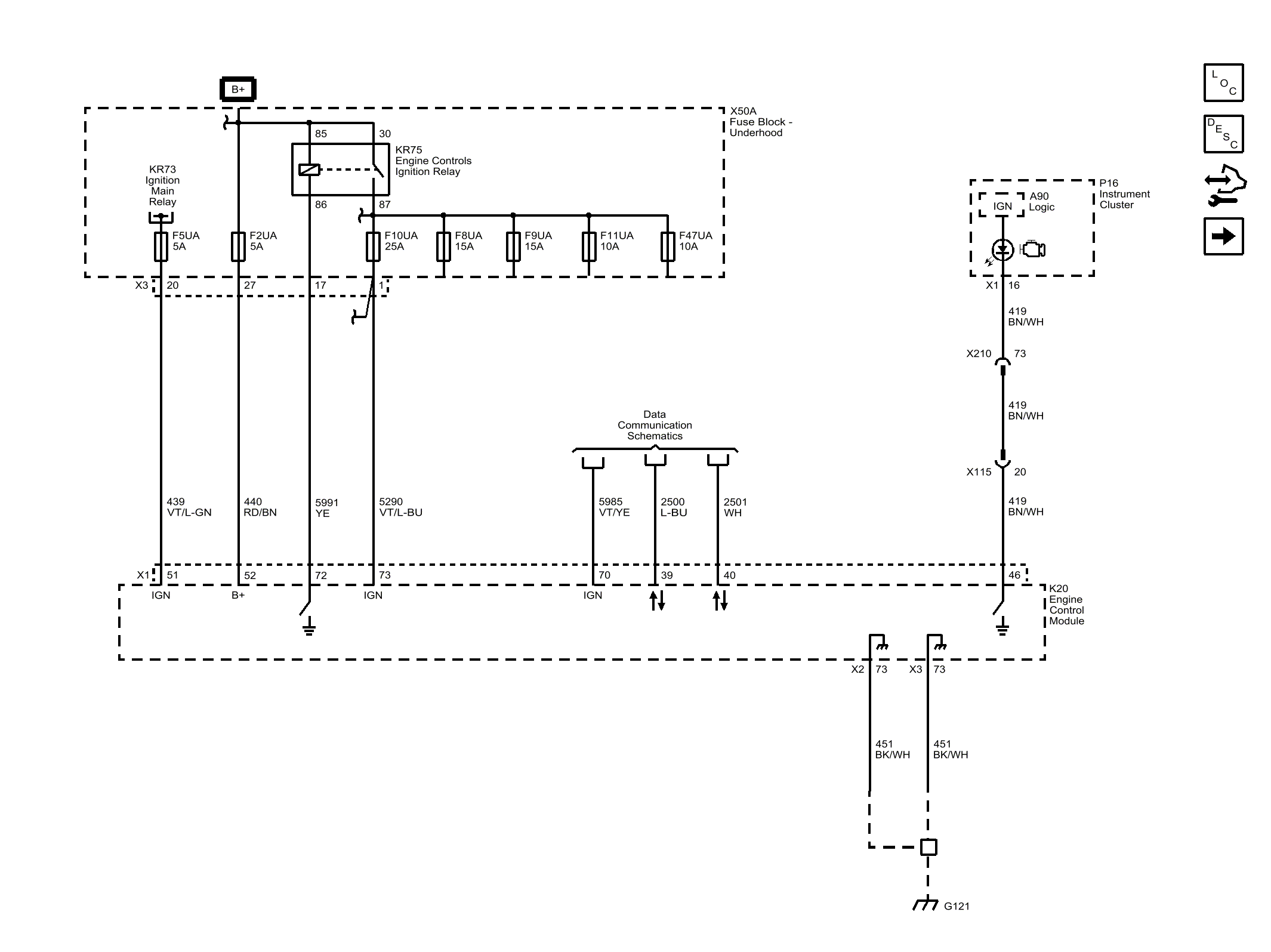

Fig 1: Module Power, Ground, Serial Data and MIL

GM4454165

Courtesy of GENERAL MOTORS COMPANY
