Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (Rear LF3)

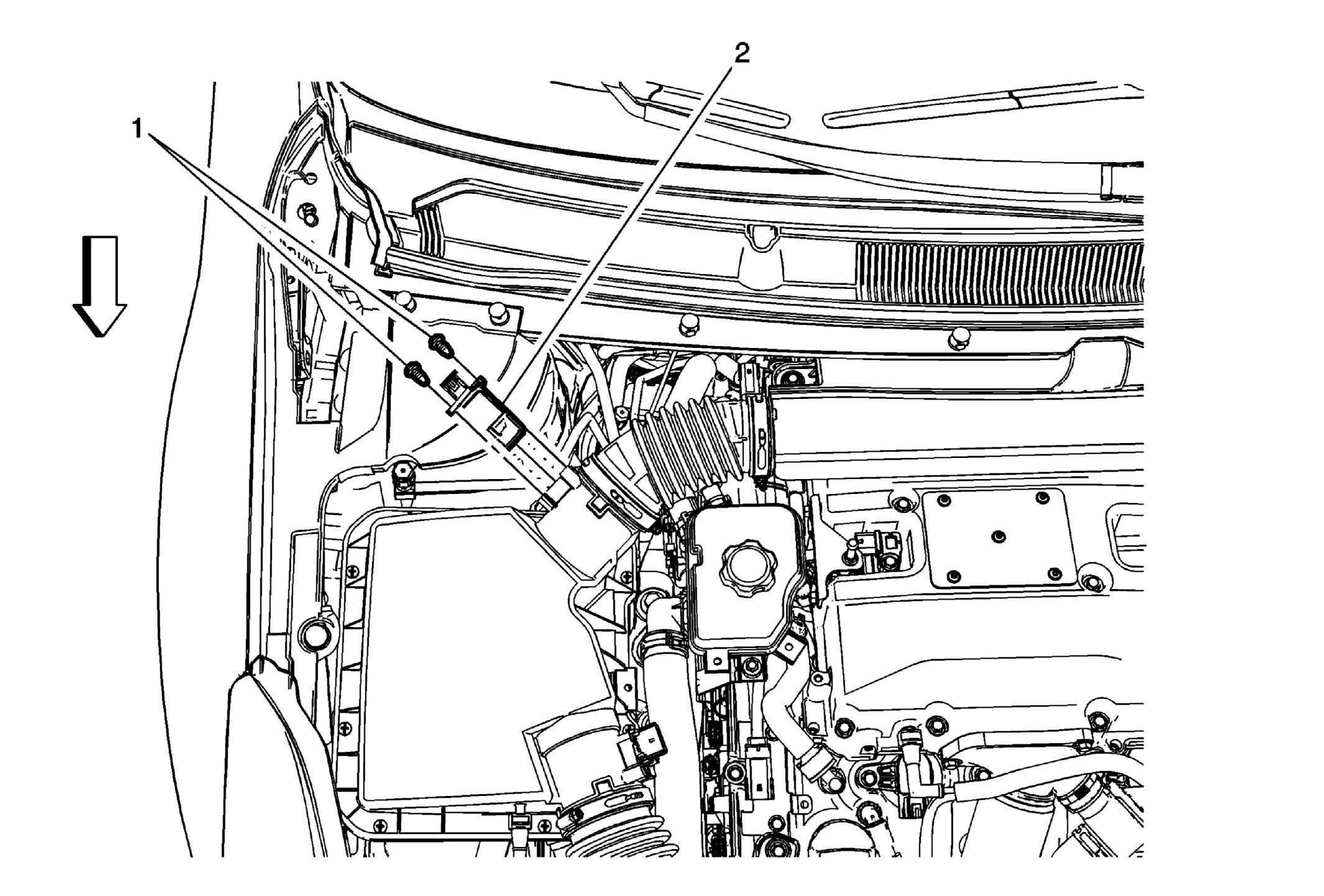

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor (Rear LF3)
GM3291038Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Front Compartment Side Sight Shield-Right Side Front Compartment Side Sight Shield Replacement
1 Mass Air Flow Sensor Fasteners (Qty :2)
CAUTION:

Refer to Fastener Caution .
2 Mass Air Flow Sensor
Procedure
Disconnect the electrical connector.
