Intake Air Pressure and Temperature Sensor Replacement (LF3)

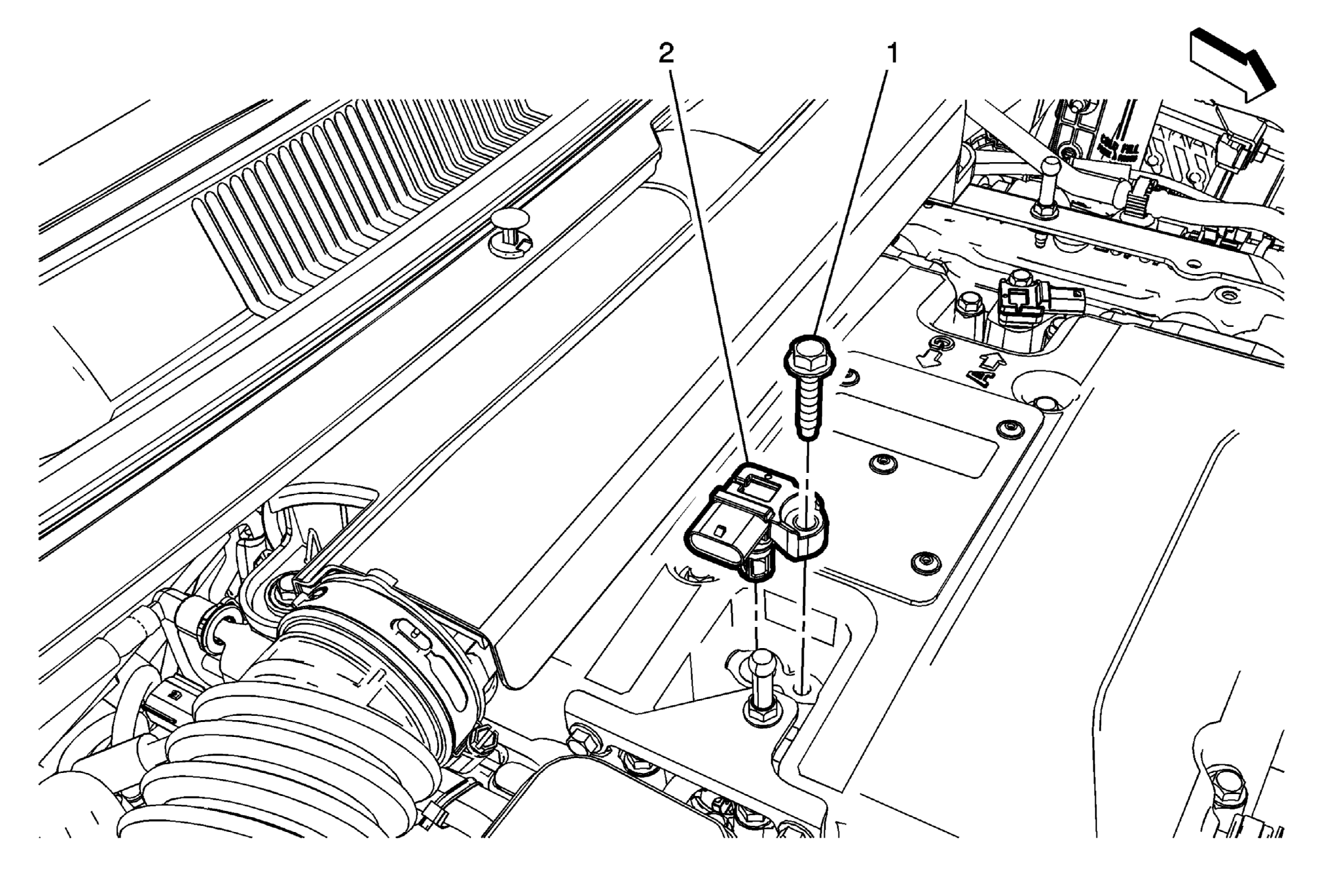

Fig 1: Intake Air Pressure and Temperature Sensor (LF3)
GM3356282Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) .
  2. Disconnect the electrical connector from the manifold absolute pressure sensor.
1 Intake Air Pressure and Temperature Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Intake Air Pressure and Temperature Sensor
