Fuel Feed Pipe Replacement (At Tank AWD)

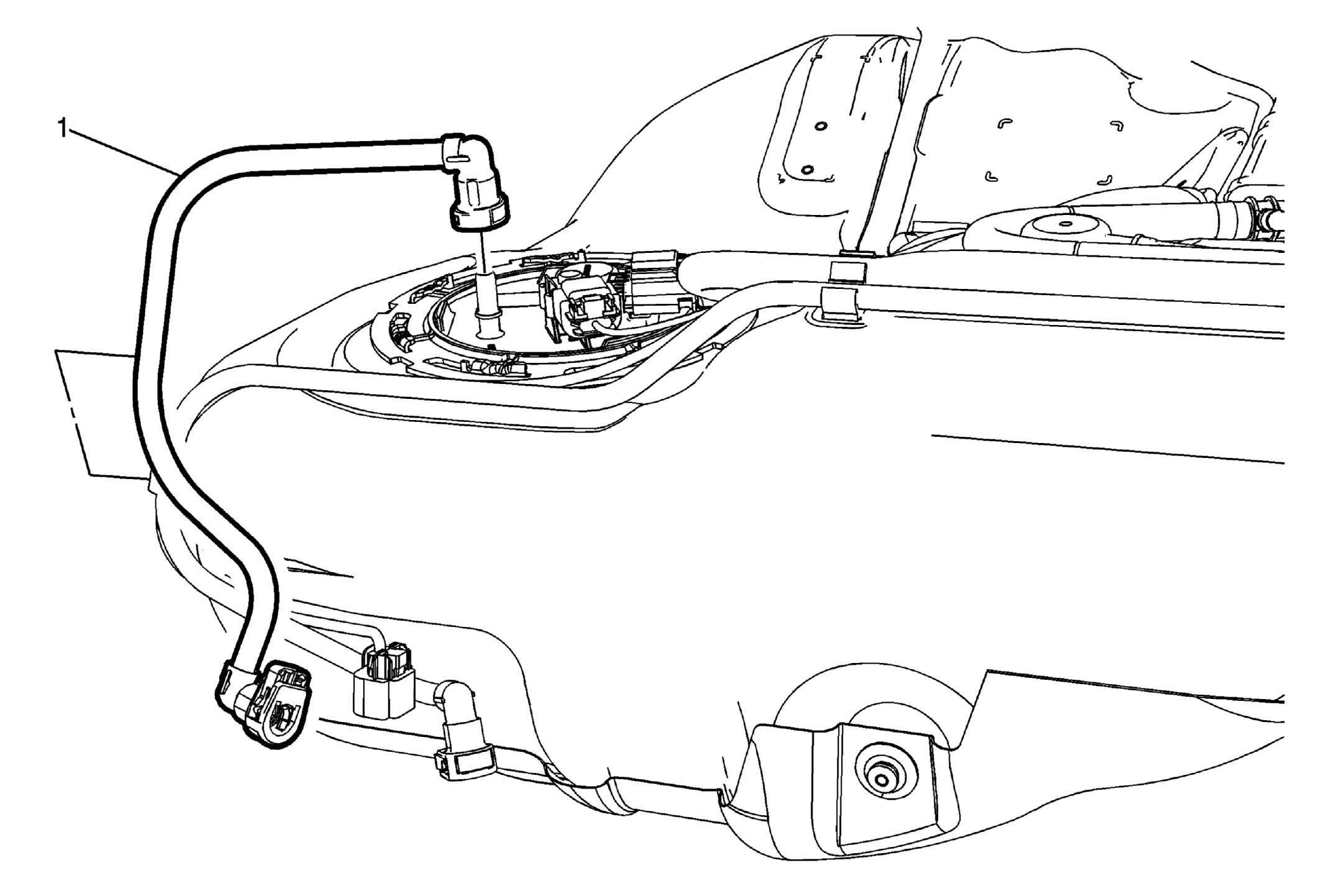

Fig 1: Fuel Feed Pipe At Tank (With AWD)
GM2673782Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
1 Fuel Feed Pipe

Procedure

  1. Disconnect the fuel feed pipe from the fuel tank retainer.
  2. Disconnect the fuel feed pipe from the fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service .
