Home >> Cadillac >> 2017 >> XTS Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic Wiring Diagrams >> Antilock Brake System Wiring Schematics >> Module Power, Ground, Subsystem References and Brake Applied Signal

Module Power, Ground, Subsystem References and Brake Applied Signal

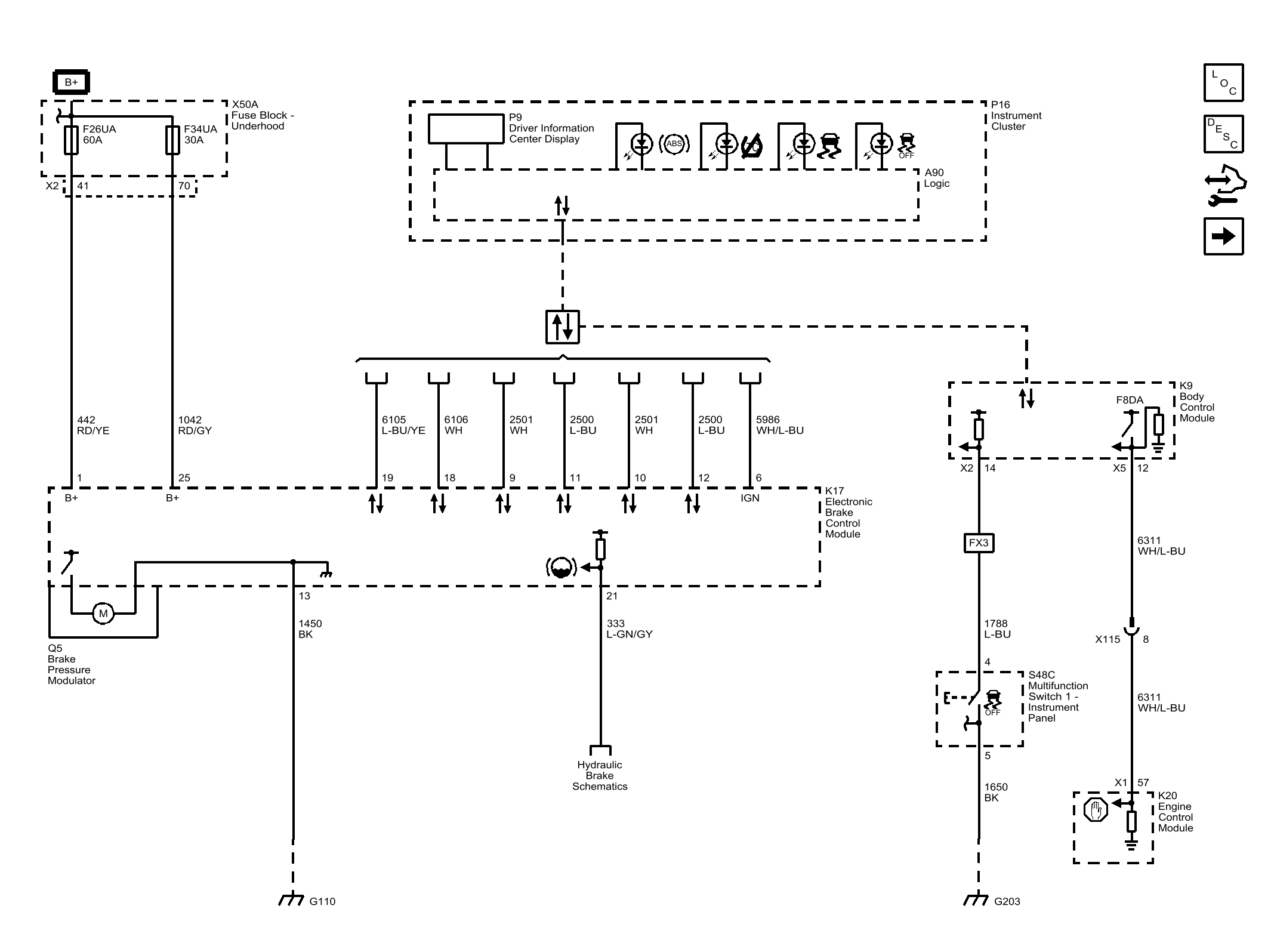

Fig 1: Module Power, Ground, Subsystem References and Brake Applied Signal

GM4453980

Courtesy of GENERAL MOTORS COMPANY
