Radio Rear Speaker Replacement

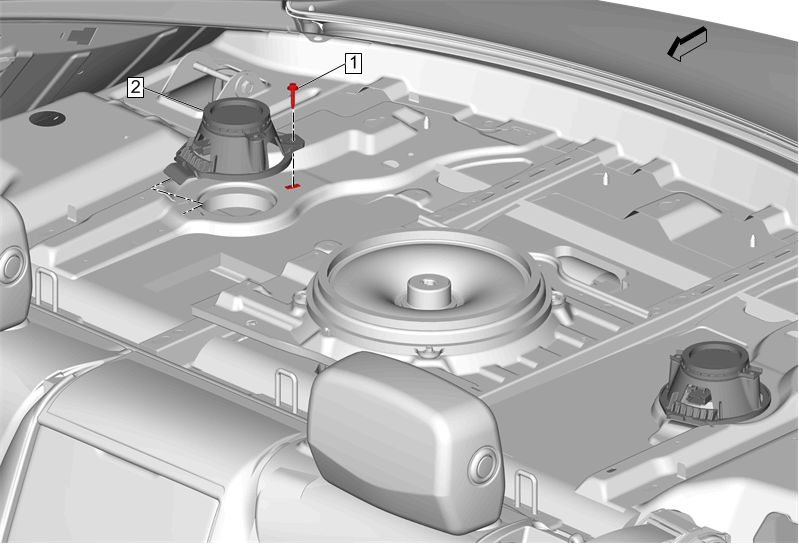

Fig 1: Radio Rear Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement (Without DB3)Rear Window Panel Trim Replacement (With DB3)
1	Radio Rear Speaker Fastener CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Rear Speaker Procedure Disconnect the electrical connector.
