Front Seat Lane Departure Warning Actuator Replacement

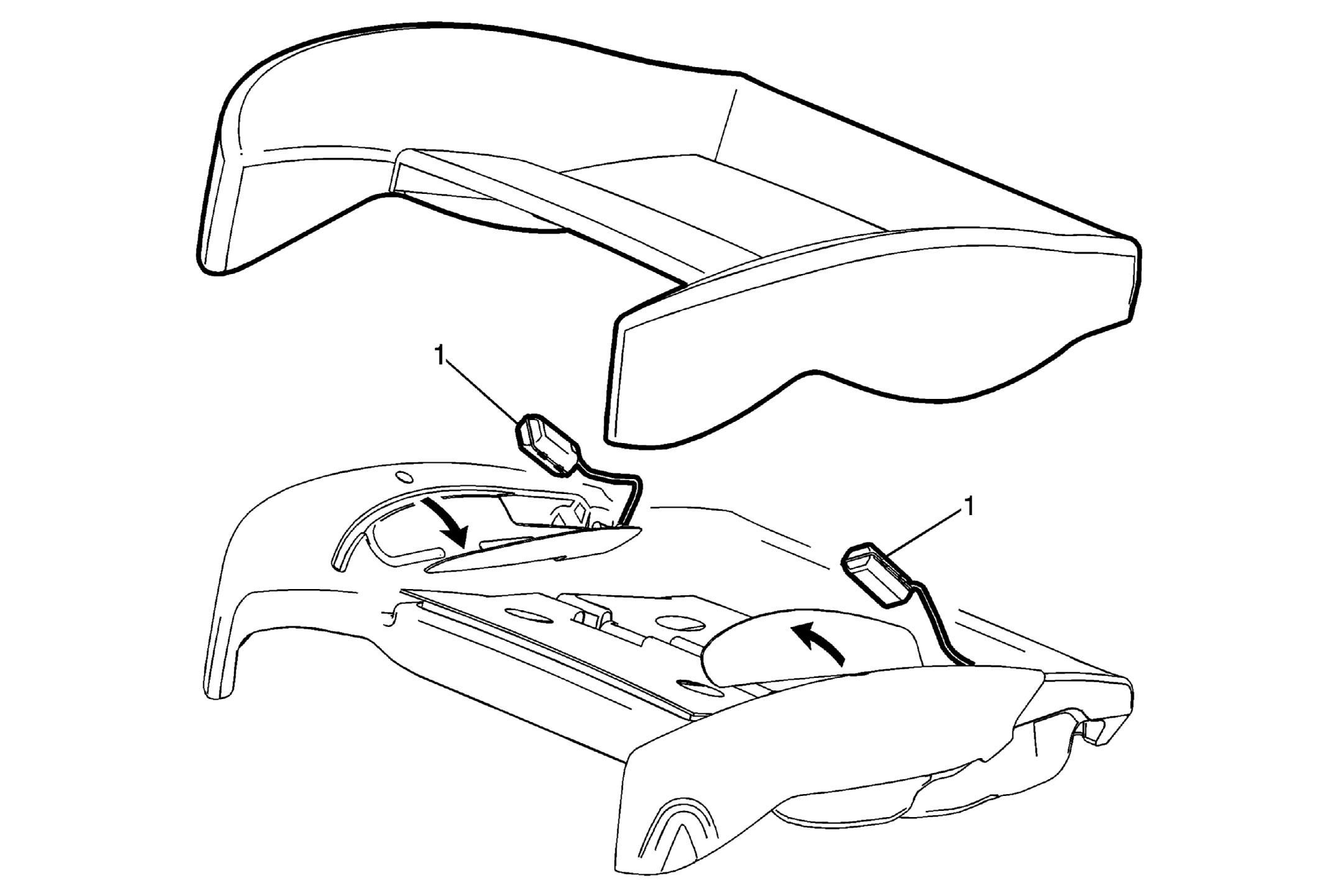

Fig 1: Front Seat Lane Departure Warning Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1	Driver Front Seat Cushion Haptic Motor Procedure Reposition the heater element as needed to gain access to the actuator wire. Cut the original actuator wire that connects to the main harness and splice in the new actuator wire. Refer to Wire to Wire Repair Remove the original actuator and discard it. Note the routing of the original wire and harness location for installation. NOTE: Adjust the splice location so that each splice is at least 40 mm (1.5 in) away from other splices, harness branches, or connectors.

Callout

Component Name

WARNING:

Preliminary Procedure

Driver Front Seat Cushion Haptic Motor

Procedure

Reposition the heater element as needed to gain access to the actuator wire.
Cut the original actuator wire that connects to the main harness and splice in the new actuator wire. Refer to Wire to Wire Repair
Remove the original actuator and discard it.
Note the routing of the original wire and harness location for installation.

NOTE:

Adjust the splice location so that each splice is at least 40 mm (1.5 in) away from other splices, harness branches, or connectors.
