Ignition Coil Replacement - Bank 1

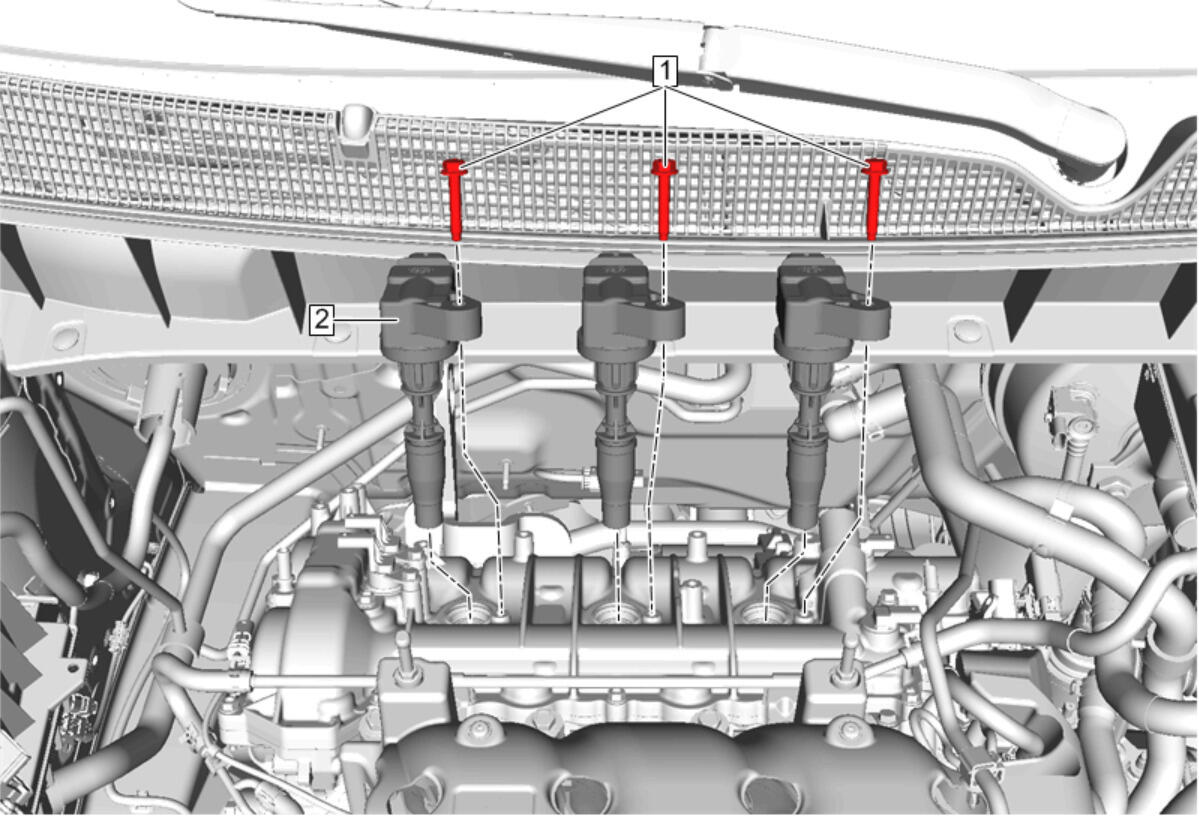

Fig 1: Ignition Coils - Bank 1
GM4316004Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Camshaft Housing Cover Insulator - Right Side. Refer to Camshaft Housing Cover Insulator Replacement - Right Side
1 Ignition Coil Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten to 10 N.m (89 lb in)
2 Ignition Coil (Qty: 3)
