Installation Procedure

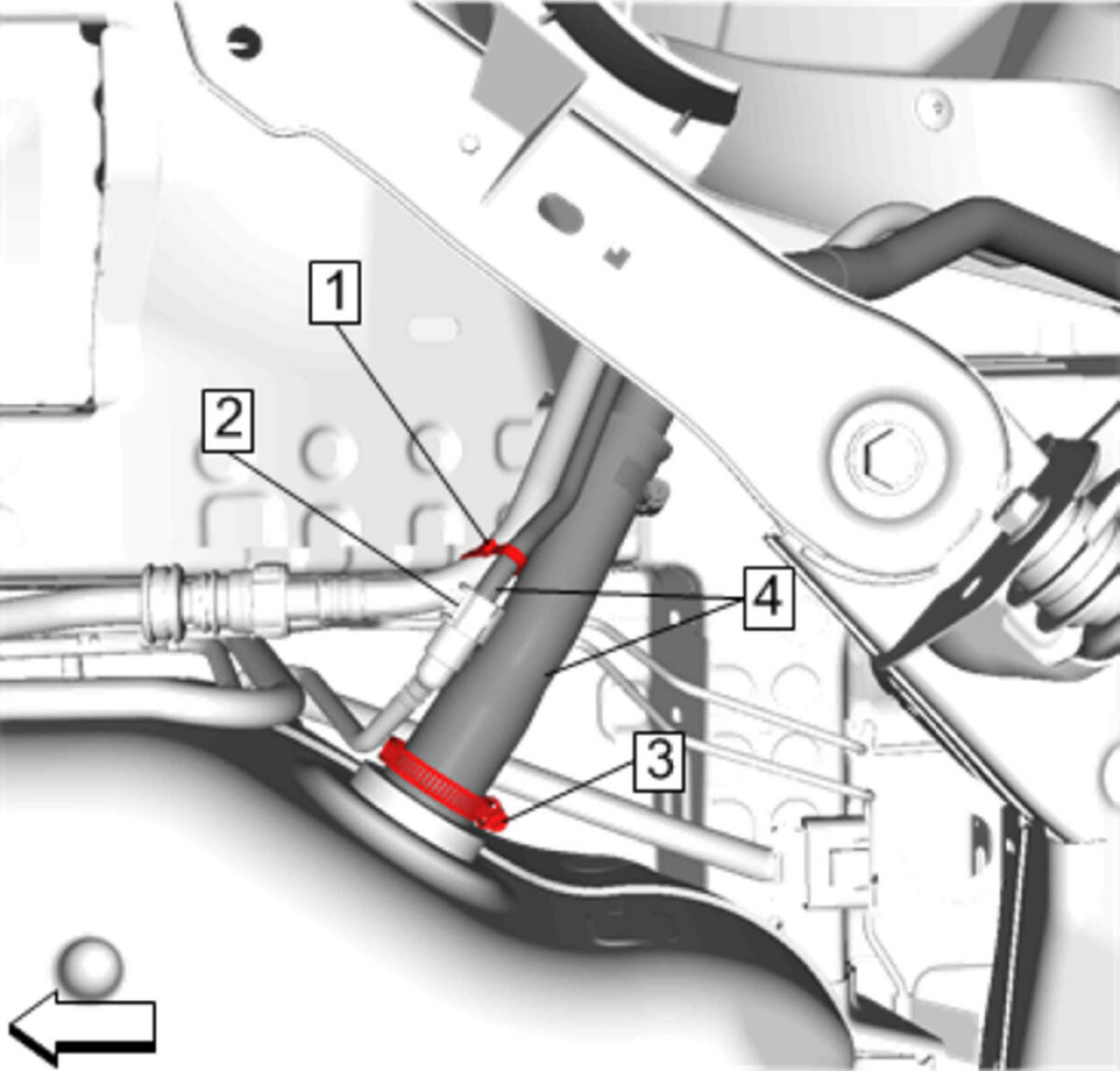

    Fig 1: Fuel Tank Filler Hose, Clamp, Tie Strap And Canister Vent Hose
    GM4317920Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Tank Filler Hose (4)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Fuel Tank Filler Hose Clamp (3) and tighten to 4 N.m (35 lb in)
  3. Connect Evaporative Emission Canister Vent Hose (2). Refer to Plastic Collar Quick Connect Fitting Service
  4. Install NEW Tie Strap (1)

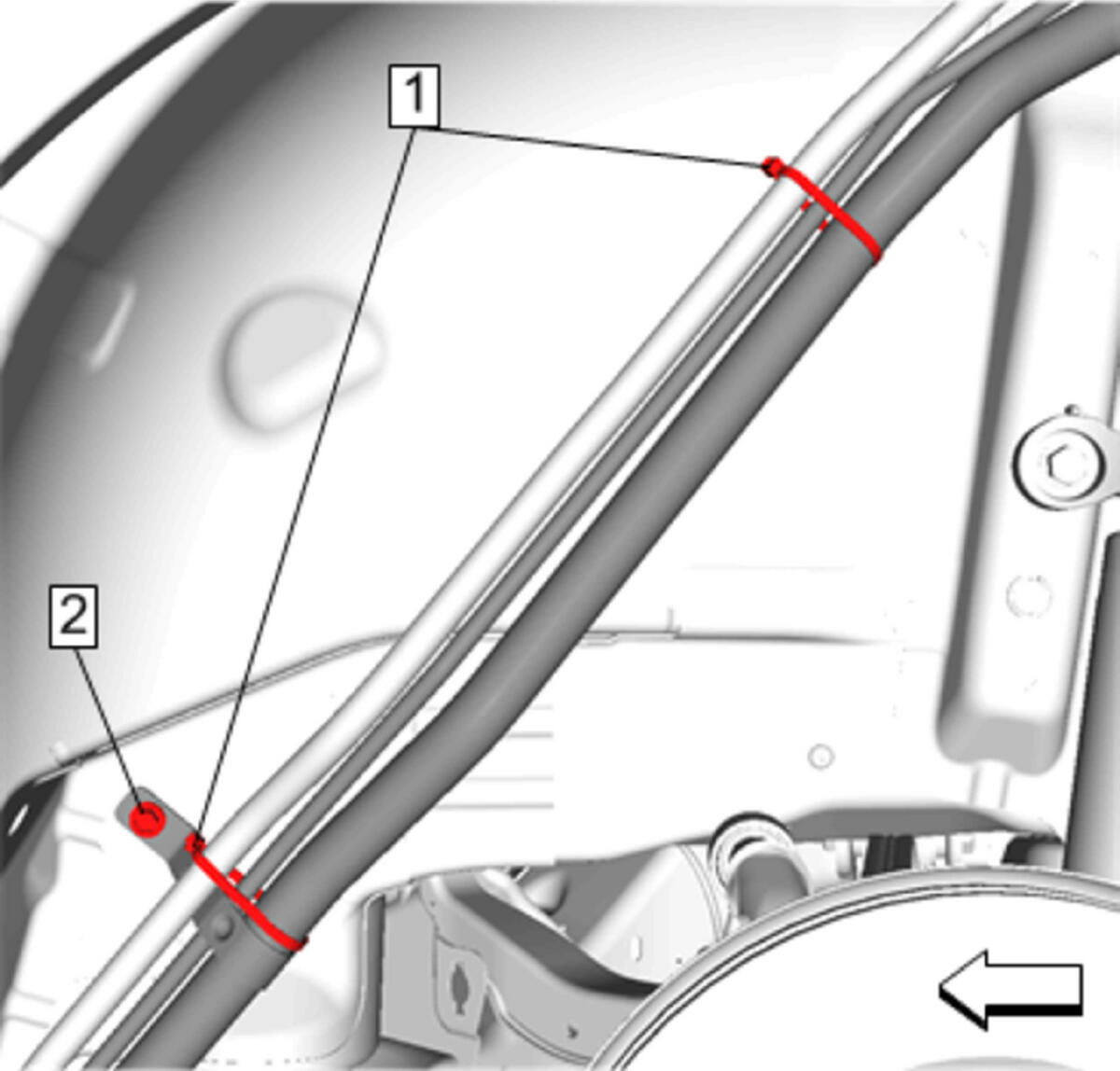

    5. Fig 2: Fuel Tank Filler Pipe Tie Straps And Bolt
    GM4317913Courtesy of GENERAL MOTORS COMPANY
  5. Install Fuel Tank Filler Pipe Bolt (2) and tighten to 9 N.m (80 lb in)
  6. Install NEW Tie Straps (1) (Qty: 2)

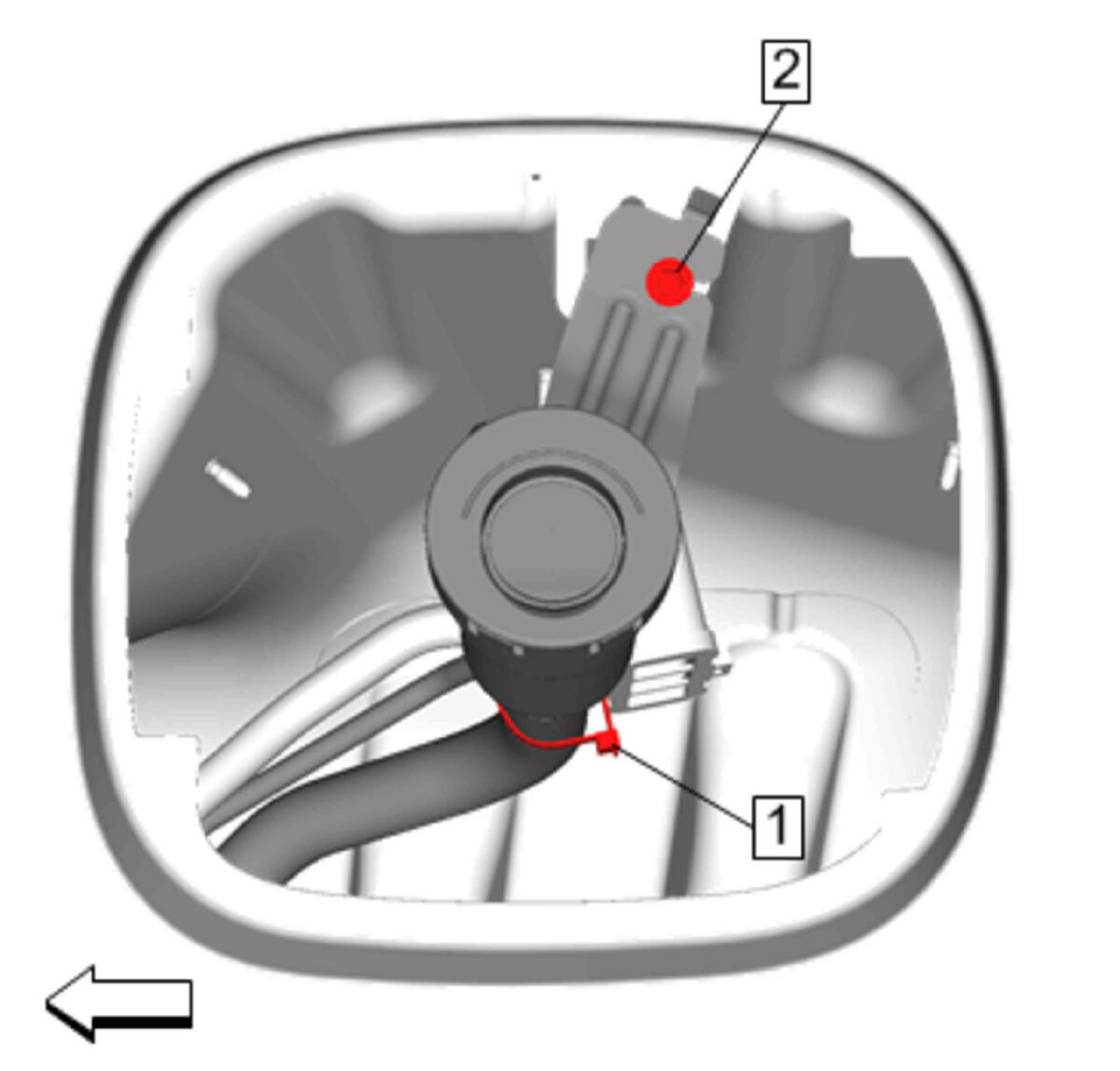

    7. Fig 3: Fuel Tank Filler Pipe Tie Strap And Bolt
    GM4317904Courtesy of GENERAL MOTORS COMPANY
  7. Install Fuel Tank Filler Pipe Bolt (2) and tighten to 2.5 N.m (22 lb in)
  8. Install NEW Tie Strap (1)
  9. Install Fuel Tank Filler Pipe Housing. Refer to Fuel Tank Filler Pipe Housing Replacement
  10. Install Rear Wheelhouse Liner. Refer to Rear Wheelhouse Liner Replacement
