Fuel Tank Filler Hose Replacement (AWD)

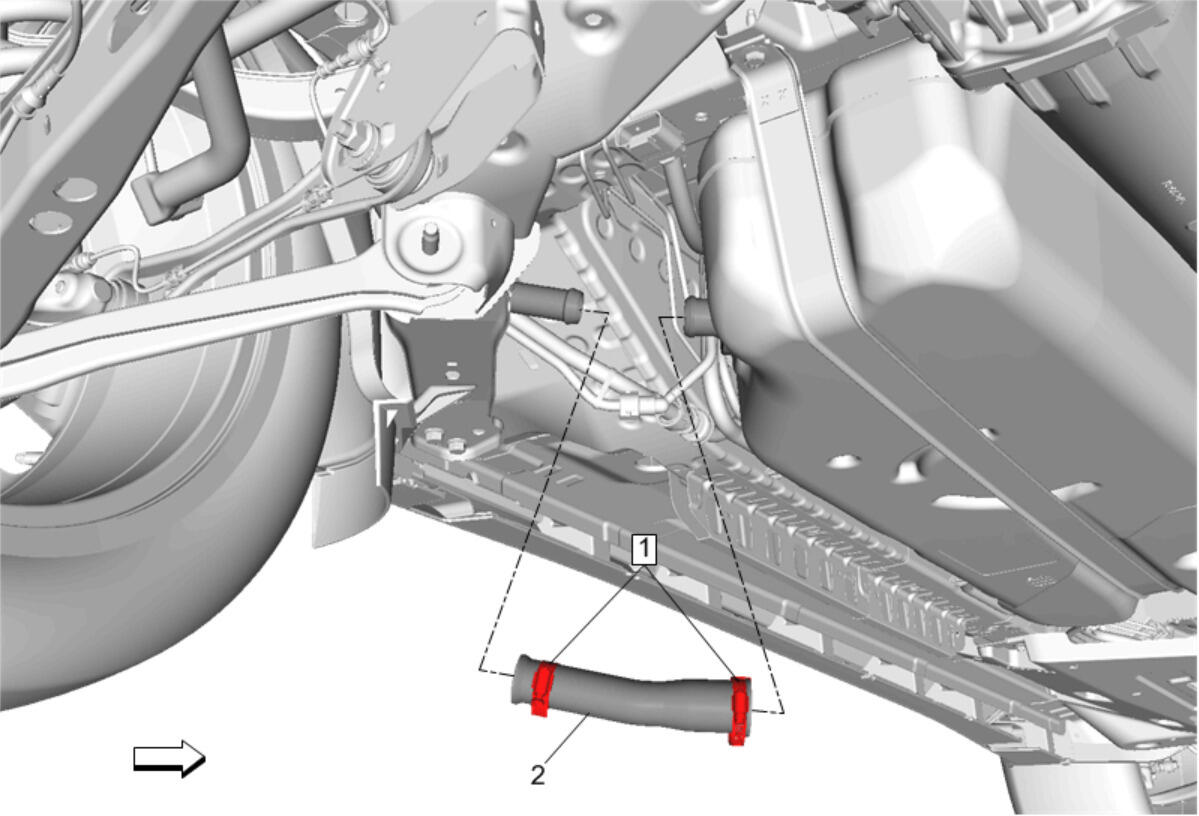

Fig 1: Fuel Tank Filler Hose (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain Fuel Tank. Refer to Fuel Tank Draining Raise and support vehicle. Refer to Lifting and Jacking the Vehicle
1	Fuel Tank Filler Hose Clamp (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Fuel Tank Filler Hose

Callout

Component Name

Preliminary Procedures

Fuel Tank Filler Hose Clamp (Qty: 2)

CAUTION:

Tighten
4 N.m (35 lb in)

Fuel Tank Filler Hose
