Front Side Door Window Switch Replacement - Right Side

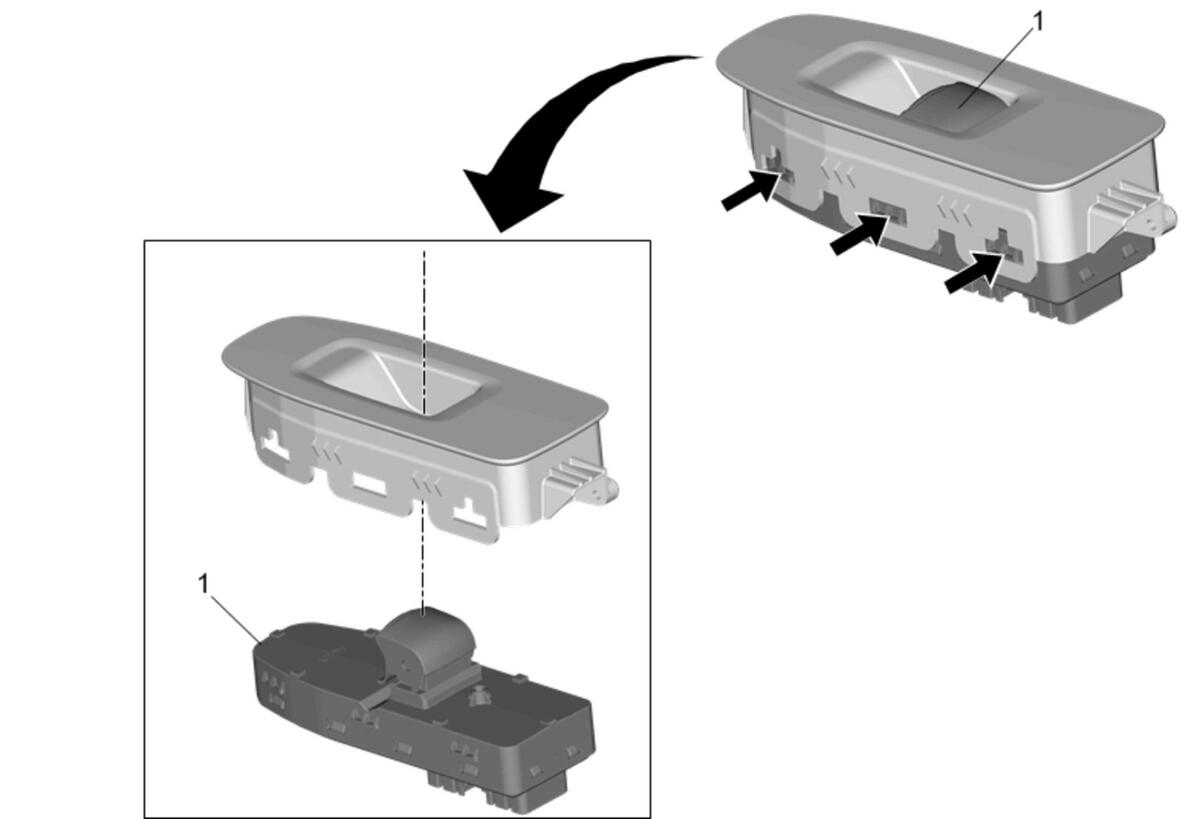

Fig 1: Front Side Door Window Switch - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Accessory Switch Mount Plate Replacement - Passenger Side
1	Front Side Door Window Switch Procedure Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch. Disconnect the electrical connector.

Callout

Component Name

Front Side Door Window Switch

Procedure

Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
Disconnect the electrical connector.
