Front Compartment Insulator Replacement

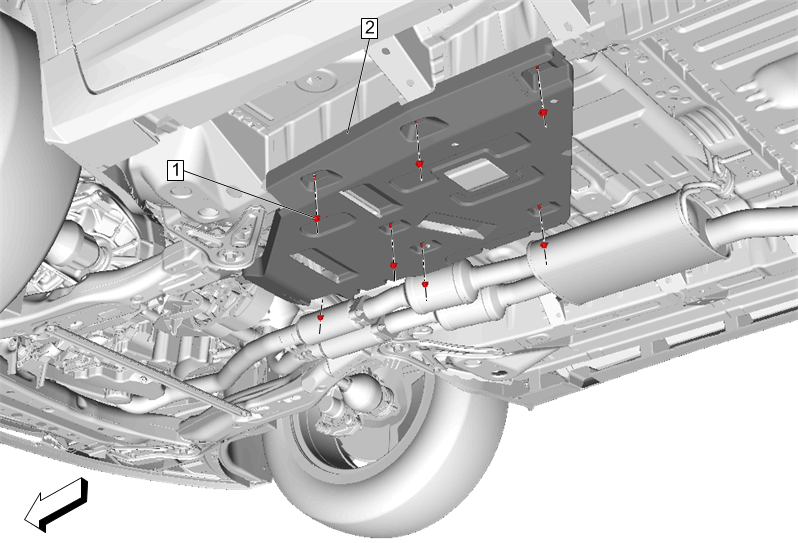

Fig 1: Cradle Alignment Pins

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Front Compartment Insulator Fastener (Qty: 7) CAUTION: Refer to Fastener Caution Tighten  9 N.m (80 lb in)
2	Front Compartment Insulator
