Radio Speaker Amplifier Replacement

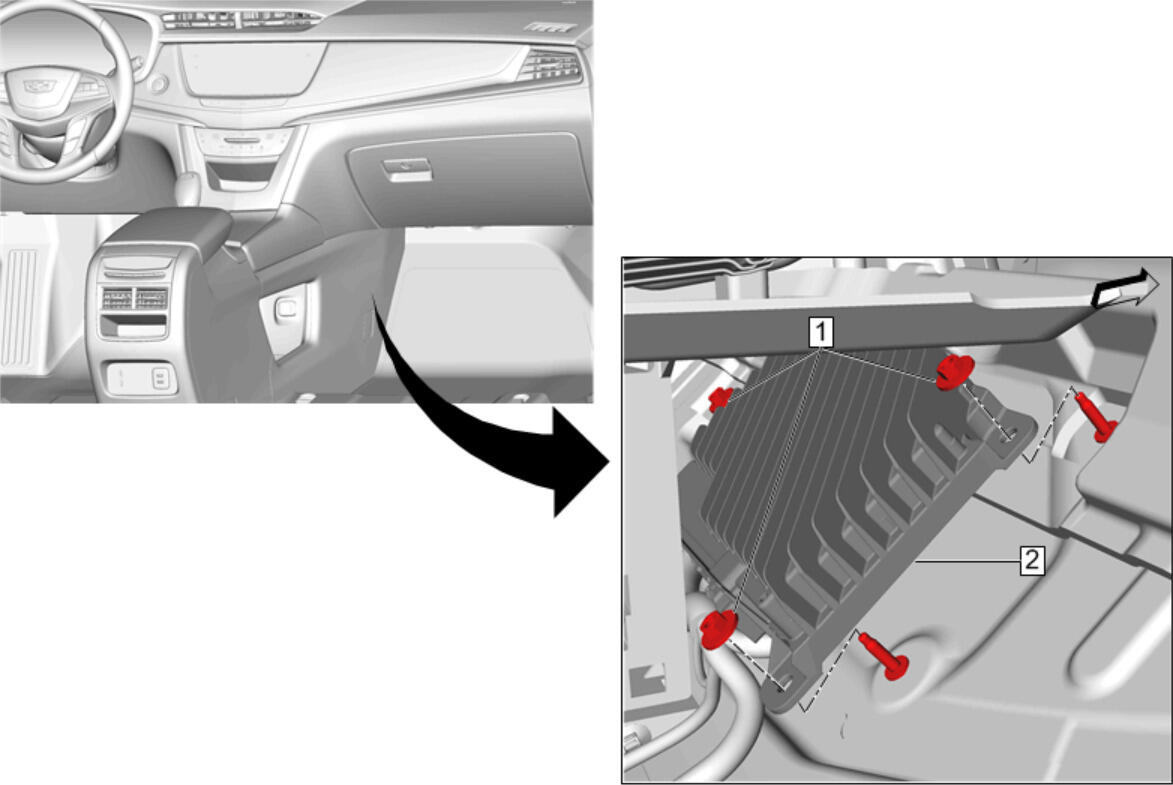

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Radio Speaker Amplifier Nut (Qty: 3) CAUTION: Fastener Caution Procedure Reposition the front right upper portion of the carpet nearest the amplifier in order to access the retaining nuts. Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedures

Front Floor Console Extension Panel Replacement - Left Side
Front Floor Console Extension Panel Replacement - Right Side

Radio Speaker Amplifier Nut (Qty: 3)

CAUTION:

Fastener Caution

Procedure
Reposition the front right upper portion of the carpet nearest the amplifier in order to access the retaining nuts.
Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
