Front Floor Speaker Replacement

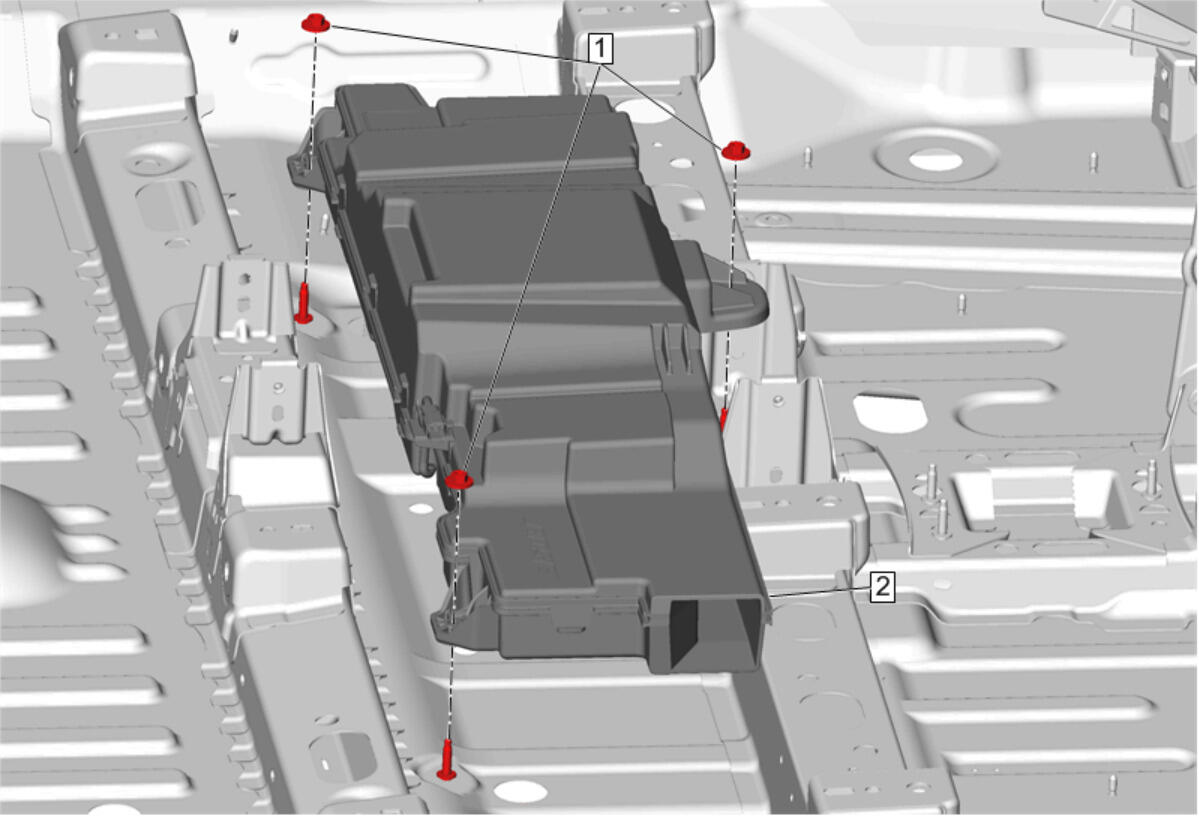

Fig 1: Front Floor Speaker
GM4295360Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Floor Rear Air Outlet Duct Replacement - Left Side
  2. Floor Rear Air Outlet Duct Replacement - Right Side
  3. Front Floor Console Rear Air Duct Replacement (Rearward of Auxiliary Blower)Front Floor Console Rear Air Duct Replacement (Forward of Auxiliary Blower)
1 Front Floor Speaker Nut (Qty: 3)
CAUTION:

Fastener Caution


Tighten
6 N.m (53 lb in)
2 Front Floor Speaker
Procedure
Disconnect the electrical connector.
