Installation Procedure

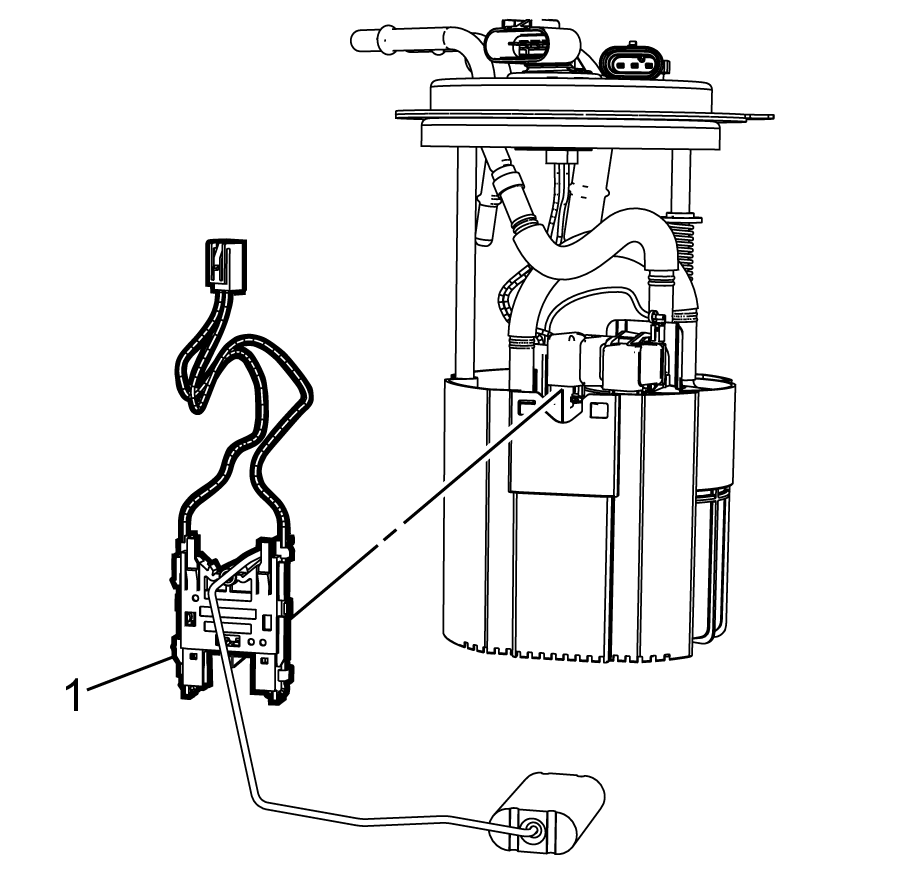

    Fig 1: Fuel Level Sensor
    GM3638795Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel level sensor (1) to the module.

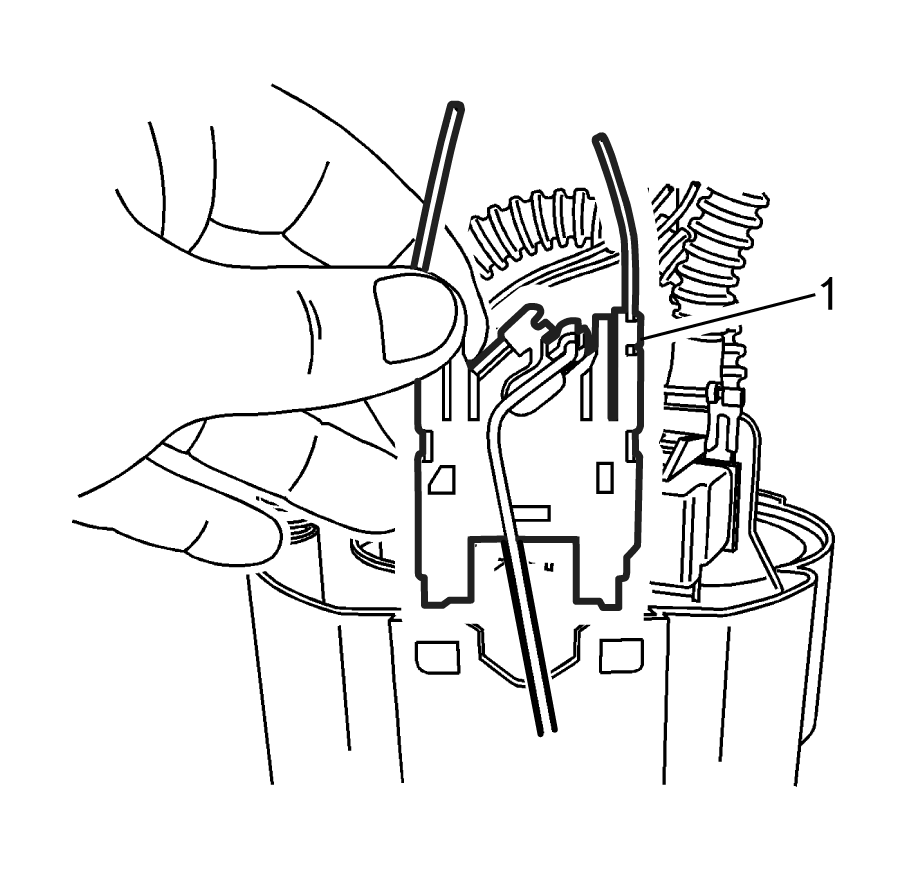

    2. Fig 2: Fuel Level Sensor
    GM3638787Courtesy of GENERAL MOTORS COMPANY
  2. Position and slide the fuel level sensor (1) down.
    3. Fig 3: Locating Fuel Level Sensor Tangs & Retainer
    GM1704575Courtesy of GENERAL MOTORS COMPANY
  3. Ensure that the level sensor tangs (2) are engaged at the bucket.
  4. Install the fuel level sensor electrical connector to the module cover.
  5. Ensure that the retainer (1) engaged the module cover.
  6. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (SWB) Fuel Tank Fuel Pump Module Replacement (LWB) .
