Chassis Control Module Replacement (Without Active Air Shutter)

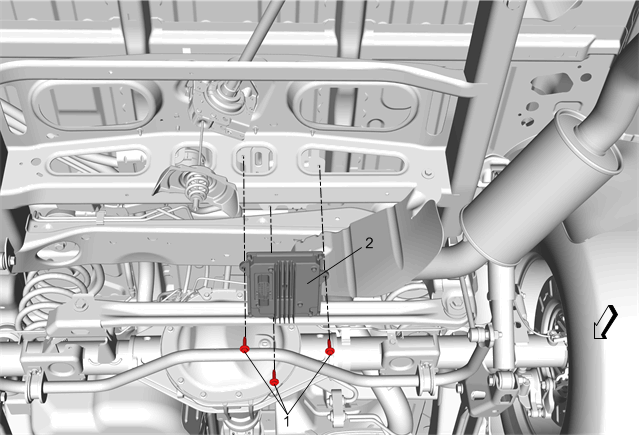

Fig 1: Chassis Control Module (Without Active Air Shutter)
GM3684603Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the spare tire. Refer to Spare Wheel Hoist Replacement .
1 Chassis Control Module Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Chassis Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to Control Module References .
