Front Seat Bolster Memory Module Replacement (22-Way Power)

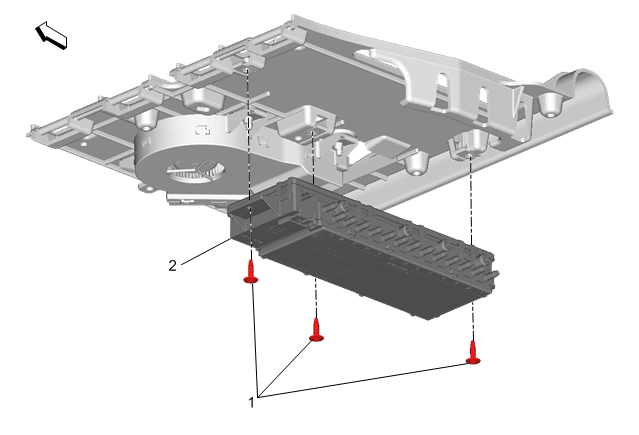

Fig 1: Front Seat Bolster Memory Module (22-Way Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Driver or Passenger Seat. Refer to Driver or Passenger Seat Removal and Installation
1	Front Seat Bolster Memory Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Bolster Memory Module Procedure Disconnect the electrical connector. Transfer components as necessary. Refer to Control Module References for programming and set up information, if required.

Callout

Component Name

Preliminary Procedure
Remove Driver or Passenger Seat. Refer to Driver or Passenger Seat Removal and Installation

Front Seat Bolster Memory Module Bolt (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Bolster Memory Module

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Refer to Control Module References for programming and set up information, if required.
