Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel (Cadillac)

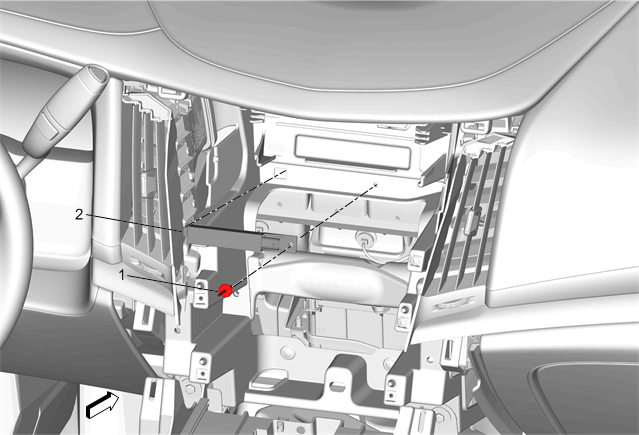

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove the radio. Refer to Radio Replacement (Cadillac with NGI)Radio Replacement (Cadillac with IOB) .
1	Ignition Lock Key Transmitter Antenna Rivet
2	Ignition Lock Key Transmitter Antenna Procedure  Disconnect the electrical connector.
