Installation Procedure

WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Front Brake Shield
    GM2202090Courtesy of GENERAL MOTORS COMPANY
  1. Install the front brake shield (1).

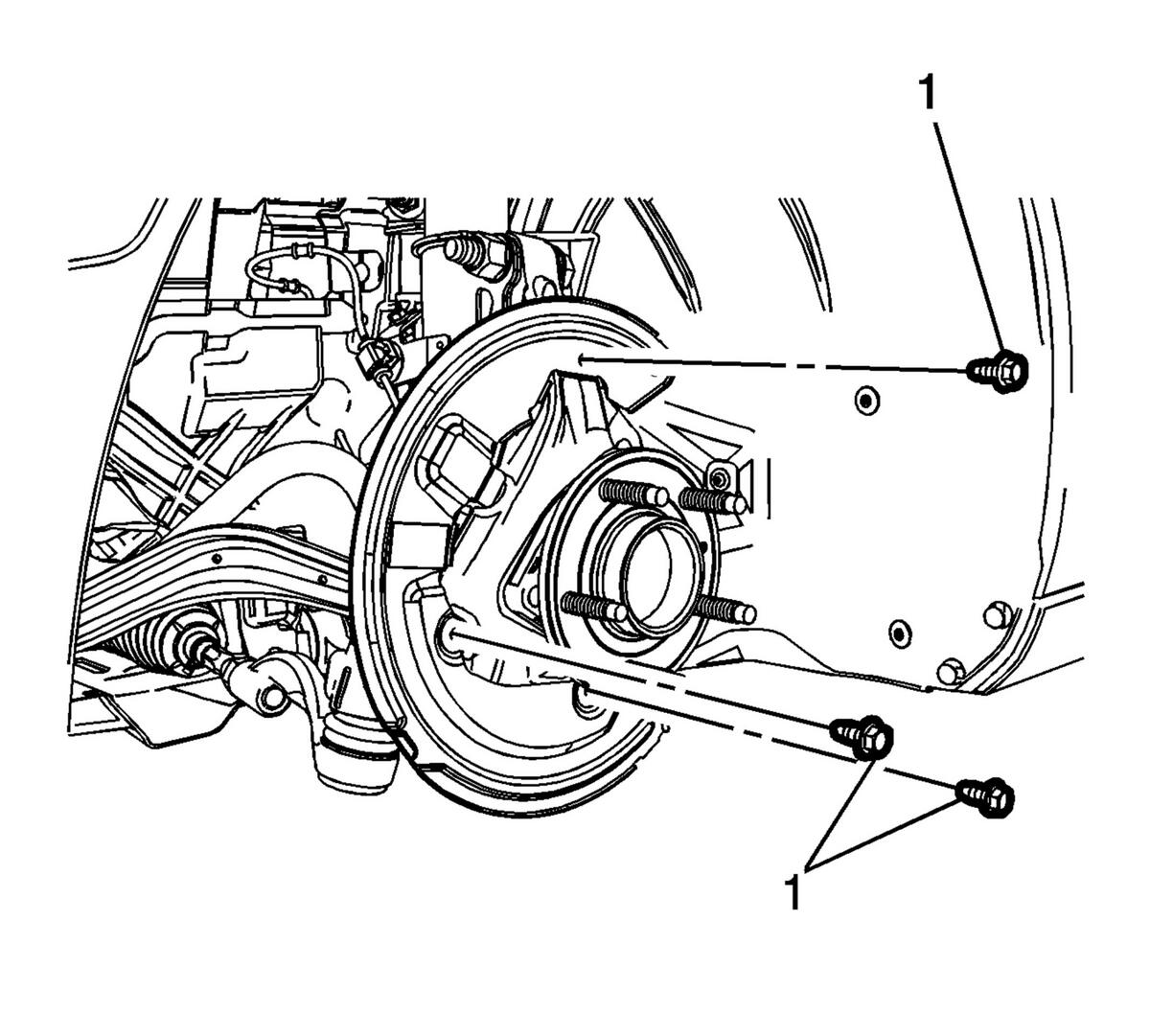

    2. Fig 2: Front Brake Shield Bolts
    GM2811297Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the front brake shield bolts (1) and tighten to 9 N.m (80 lb in).
  3. Install the front brake rotor. Refer to Front Brake Rotor Replacement .
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
