Installation Procedure

WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

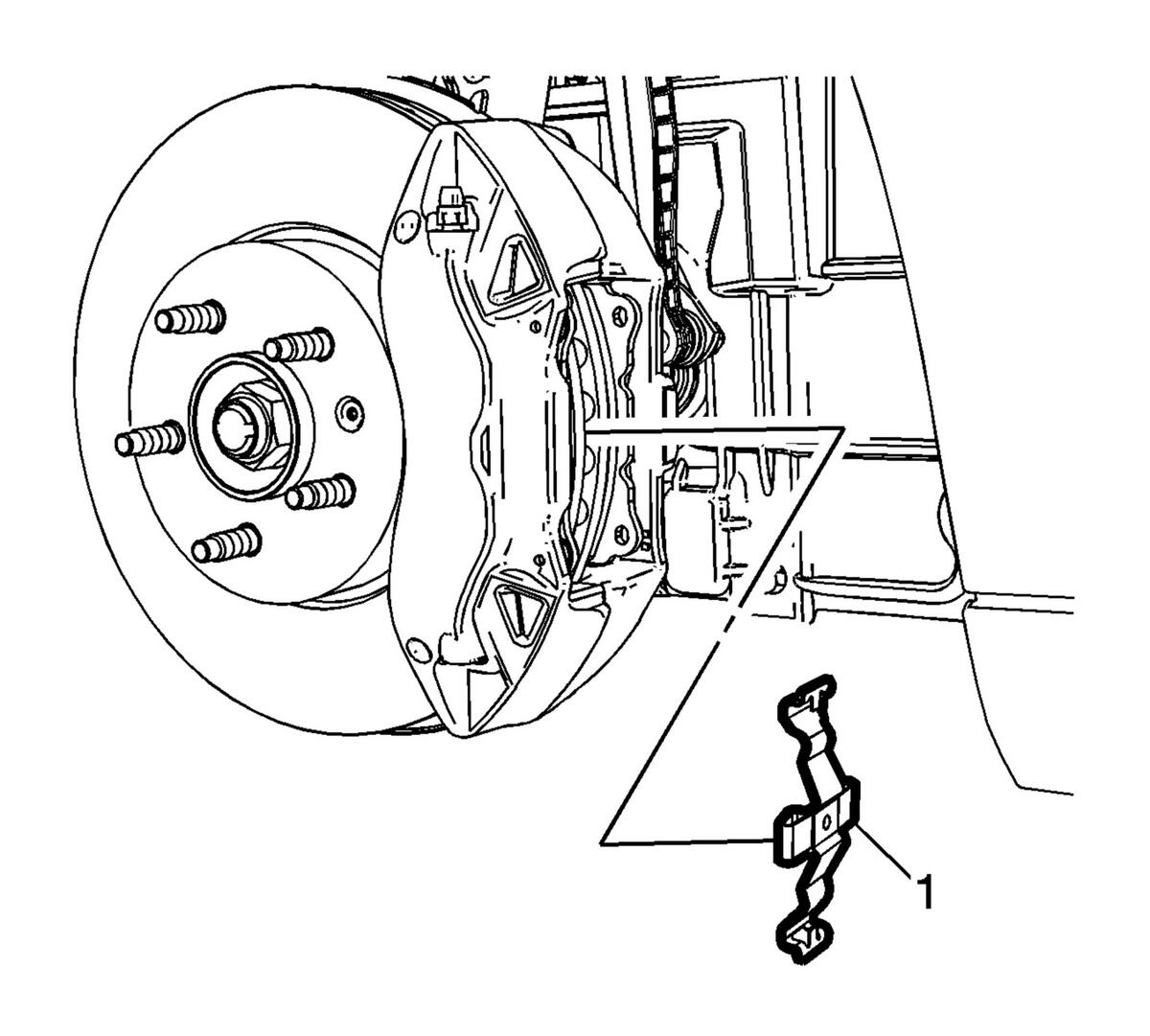

    Fig 1: Brake Pad Spring
    GM2827321Courtesy of GENERAL MOTORS COMPANY
  1. Install the brake pad spring (1).

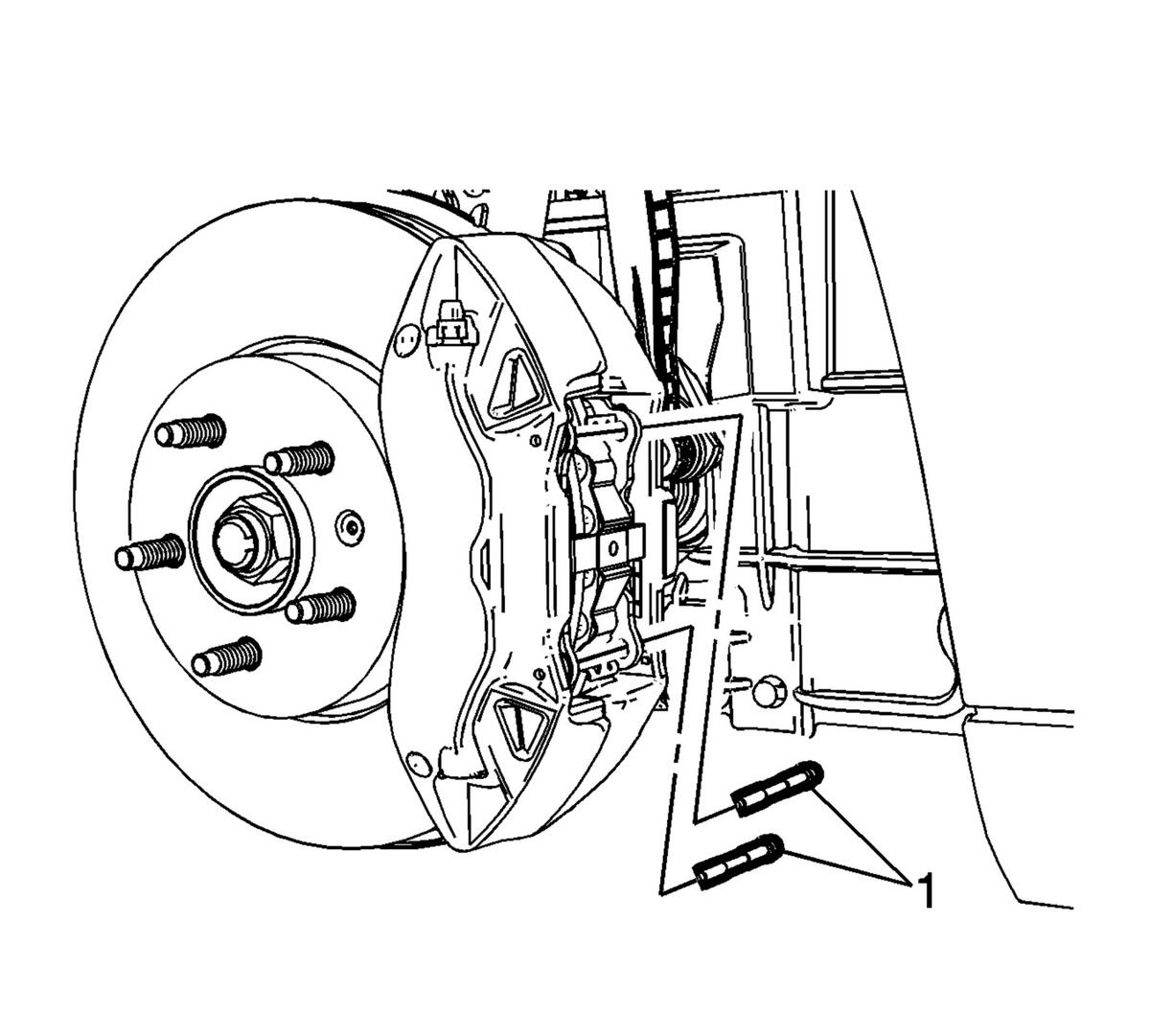

    2. Fig 2: Brake Caliper Pins
    GM2827318Courtesy of GENERAL MOTORS COMPANY
  2. Carefully drive the brake pad pins (1) into the brake caliper.
  3. Ensure the brake pad pin is fully seated in the brake caliper.
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
