Radio Antenna Coil Replacement
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

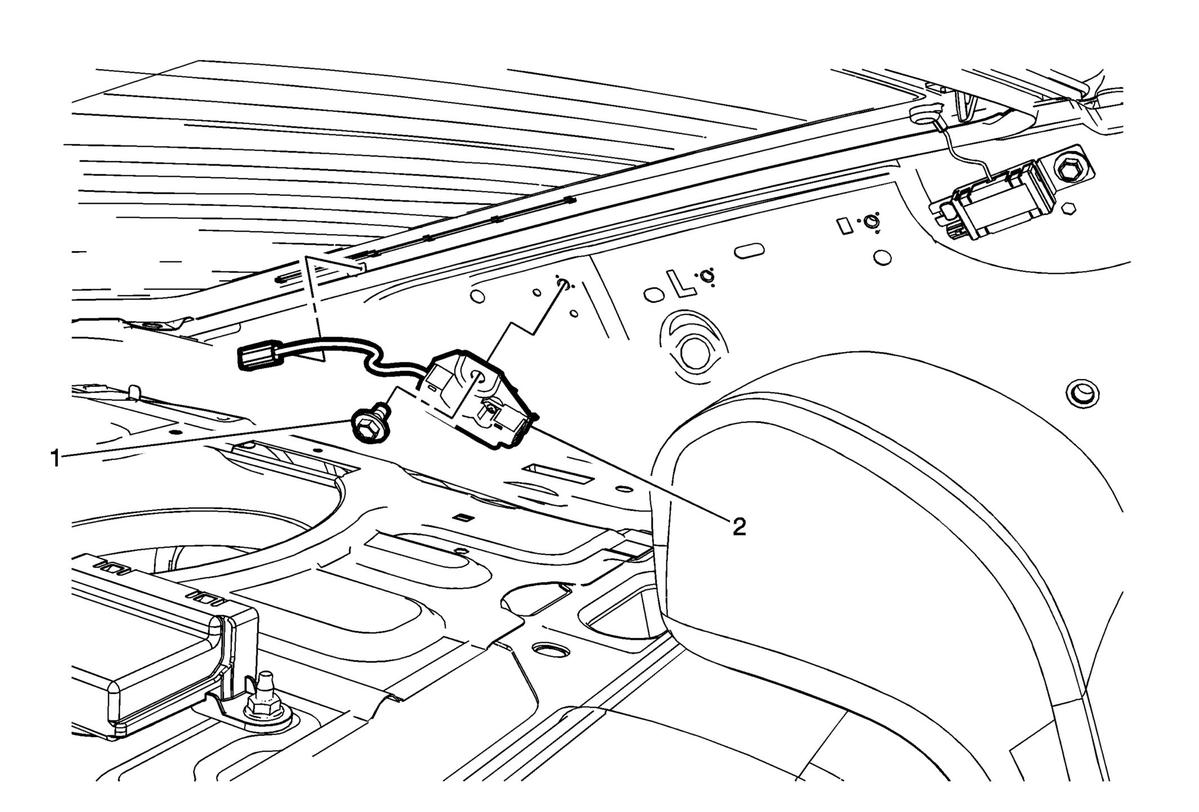

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the body side rear window garnish molding - left. Refer to Body Side Rear Window Garnish Molding Replacement . |
|
| 1 | Radio Antenna Coil Fastener
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Coil Procedure Disconnect the electrical connector. |
