Windshield Outside Moisture/Ambient Light and Humidity Sensor Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

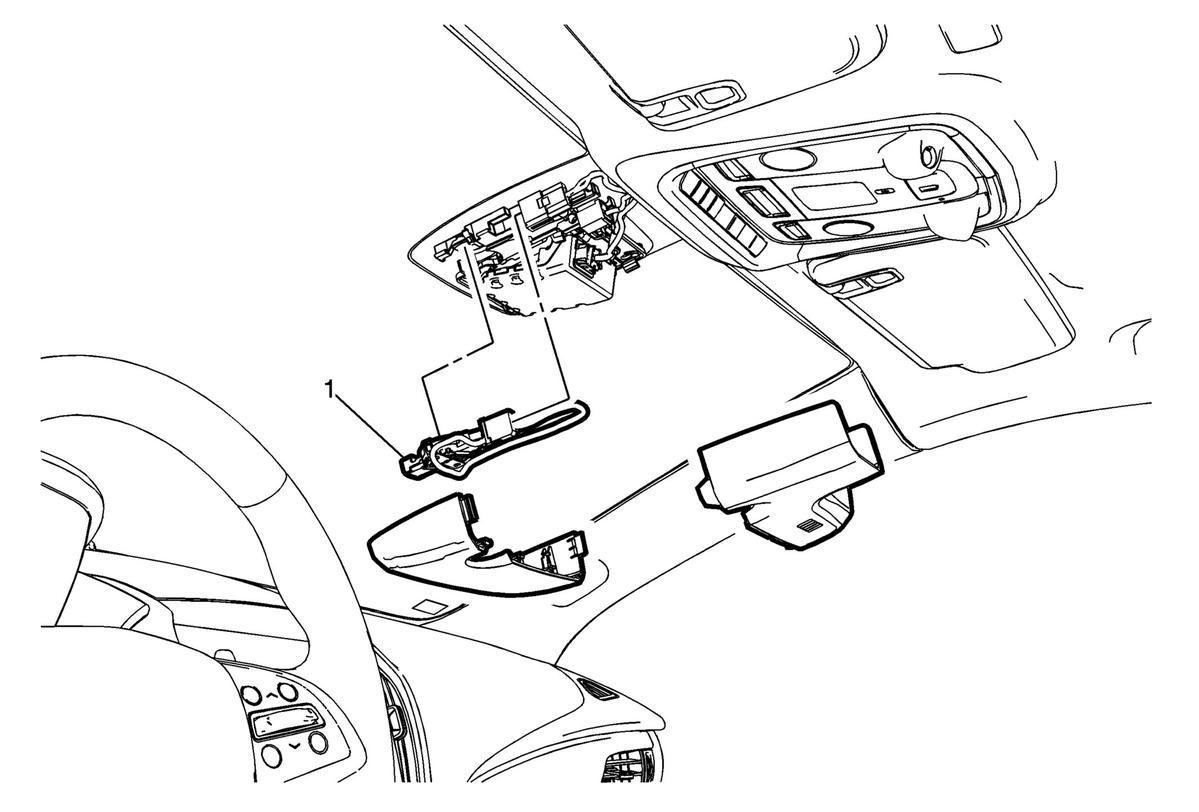

Fig 1: Inside Air Moisture and Windshield Temperature Sensor (ASV UFL)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .
1	Windshield Outside Moisture/Ambient Light and Humidity Sensor Procedures Unlatch the windshield outside moisture/ambient light and humidity sensor from the inside rear view mirror support bracket. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .

Windshield Outside Moisture/Ambient Light and Humidity Sensor

Procedures

Unlatch the windshield outside moisture/ambient light and humidity sensor from the inside rear view mirror support bracket.
Disconnect the electrical connector.
