Installation Procedure

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator assembly (1) to the vehicle.

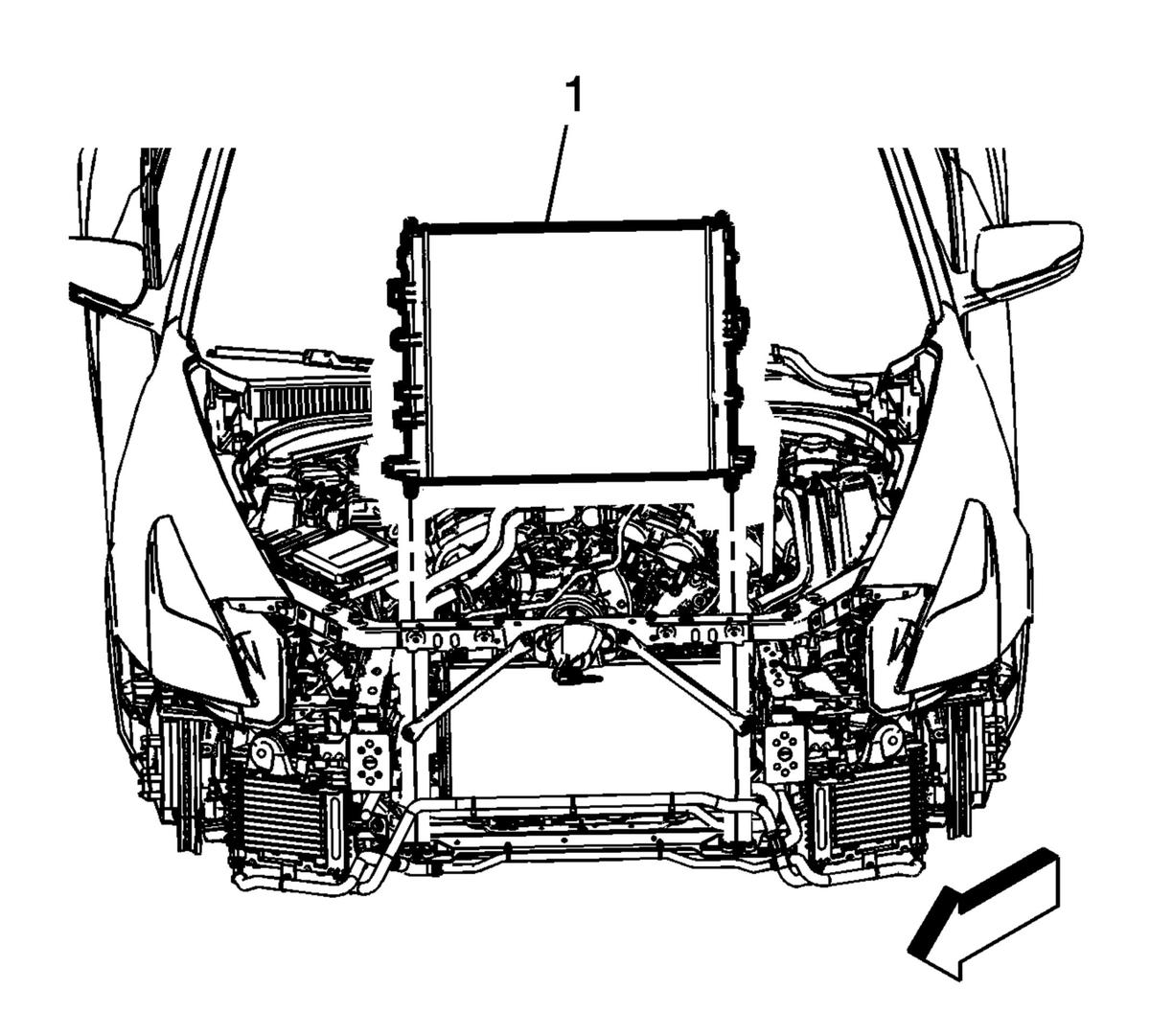

    Fig 1: Radiator
    GM3600694Courtesy of GENERAL MOTORS COMPANY
  2. Install the left and right charge air cooler radiator lower brackets from the radiator. Refer to Charge Air Cooler Radiator Lower Bracket Replacement - Left Side (LF3)  and Charge Air Cooler Radiator Lower Bracket Replacement - Right Side (LF3) .
  3. Install the engine coolant fan shroud (2) to the radiator. Refer to Engine Coolant Fan Shroud Replacement (LF3) .

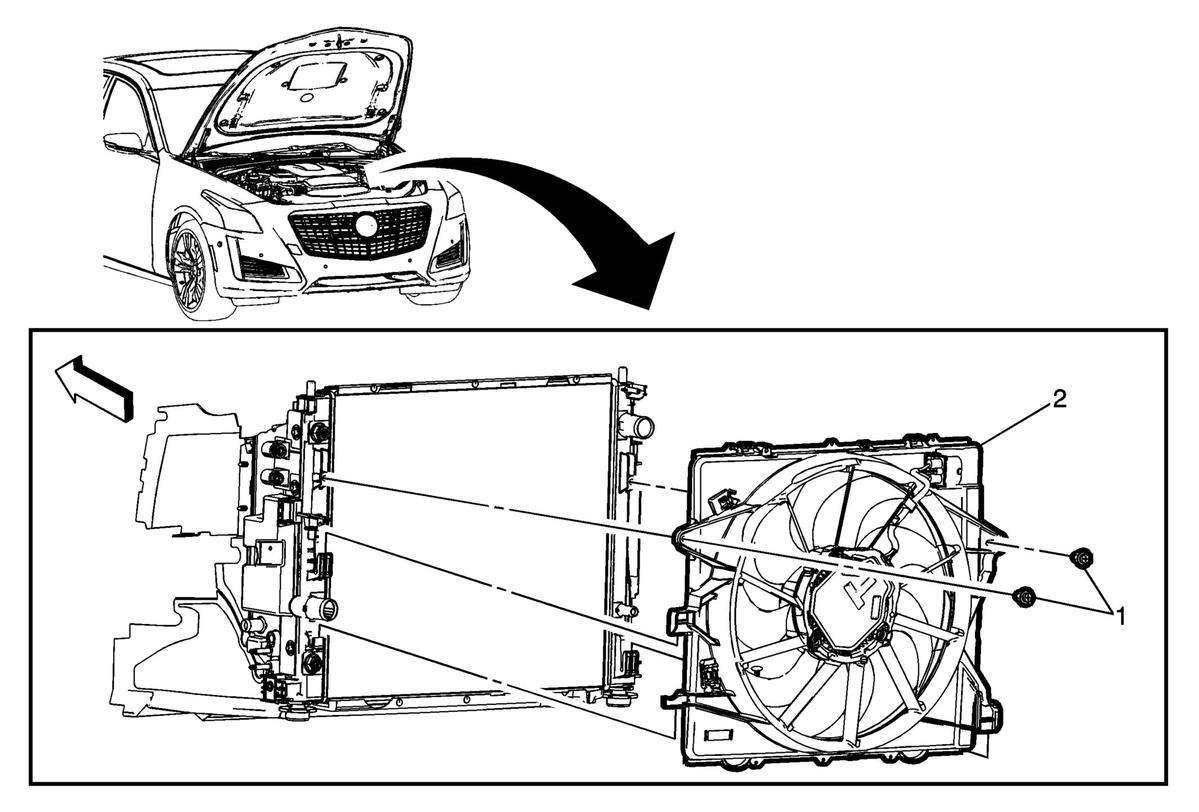

    Fig 2: Engine Coolant Fan Shroud (LF3)
    GM3586049Courtesy of GENERAL MOTORS COMPANY
  4. Install the transmission fluid cooler inlet and outlet pipe (2) to the radiator. Refer to Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF3 With V03) .

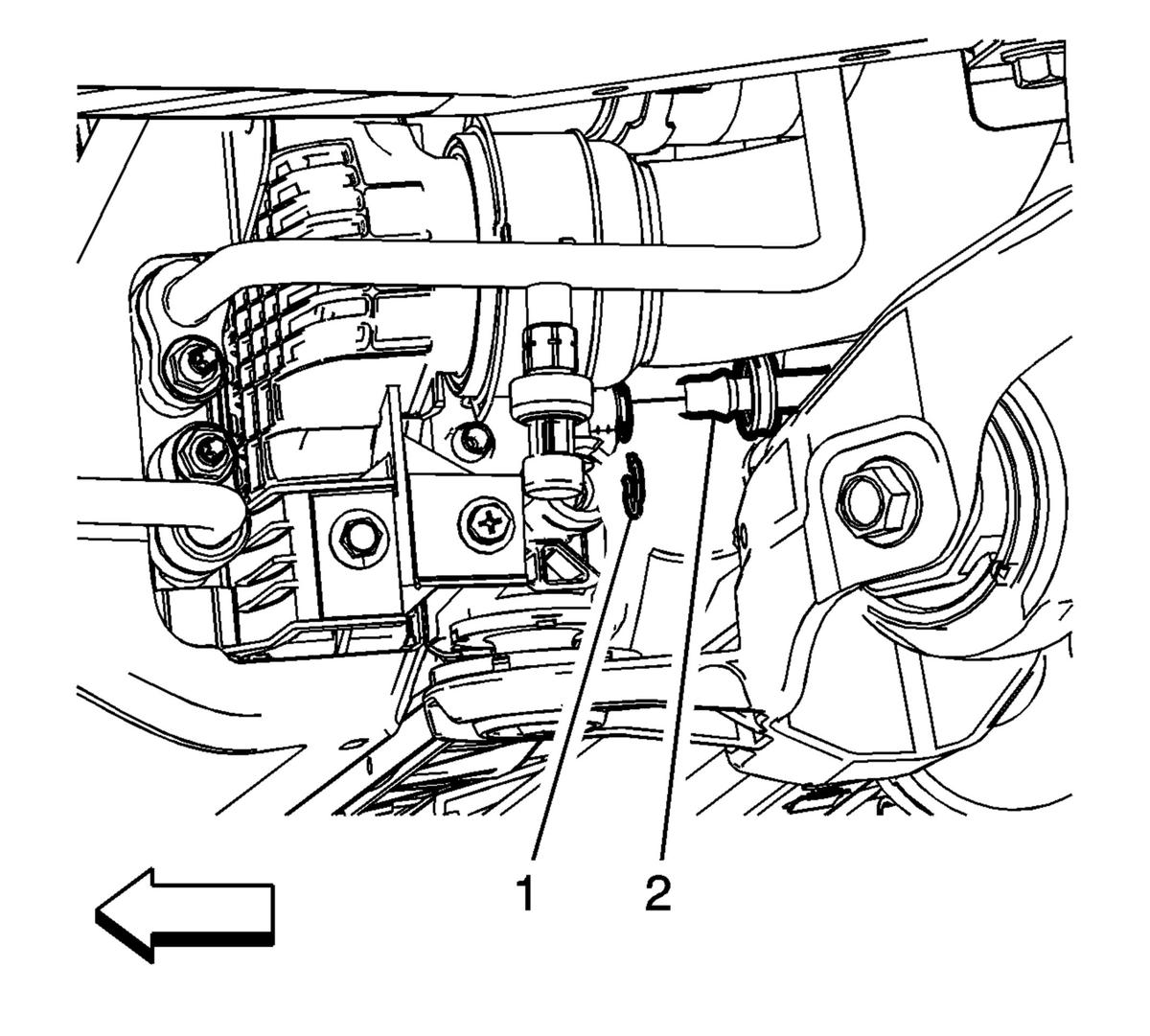

    Fig 3: Transmission Fluid Cooler Inlet And Outlet Pipe
    GM2884378Courtesy of GENERAL MOTORS COMPANY
  5. Install the transmission fluid cooler pipe (2) to the radiator. Refer to Transmission Fluid Cooler Pipe Replacement (LF3 With V03) .

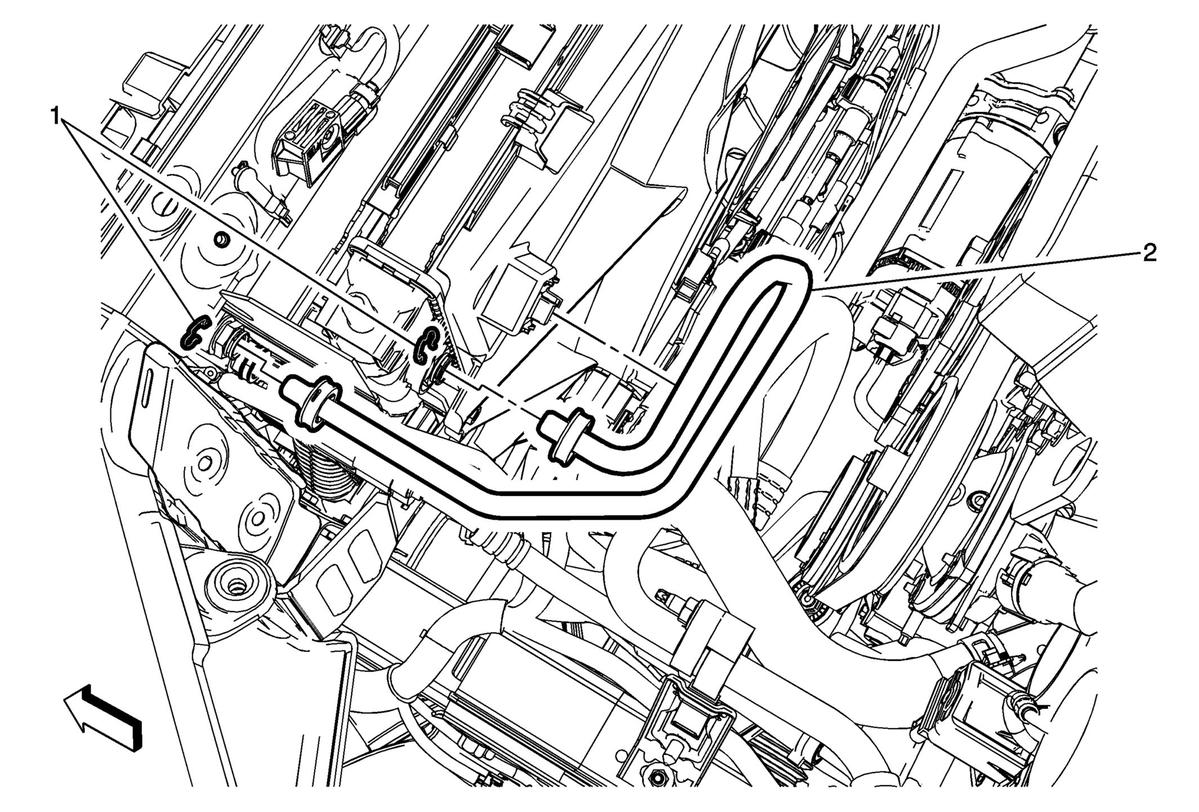

    Fig 4: Transmission Fluid Cooler Pipe & Retaining Rings
    GM2884375Courtesy of GENERAL MOTORS COMPANY
  6. Install the radiator outlet hose (1) to the radiator. Refer to Radiator Outlet Hose Replacement (LF3) .

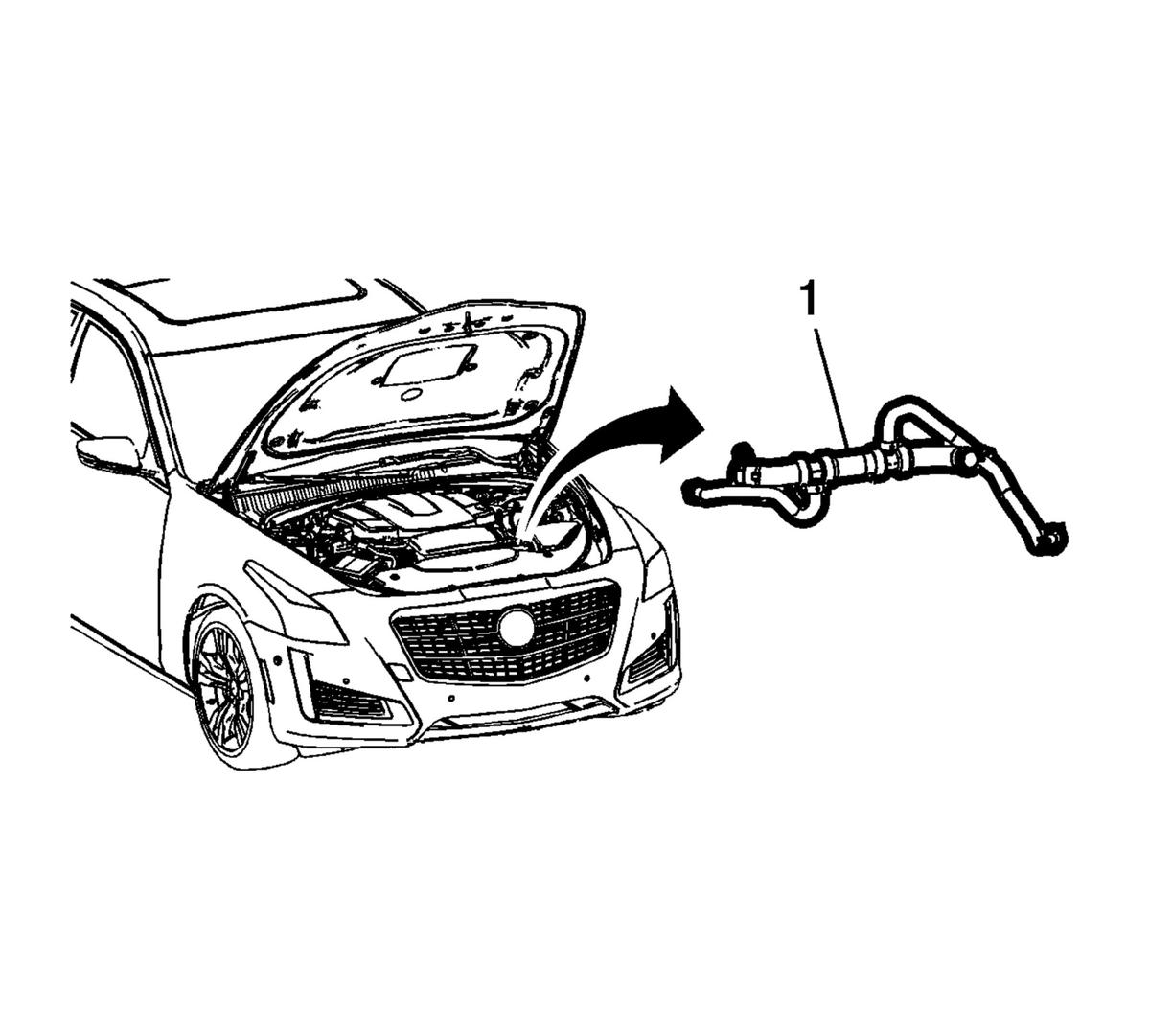

    Fig 5: Radiator Outlet Hose
    GM3581485Courtesy of GENERAL MOTORS COMPANY
  7. Install the auxiliary radiator inlet hose (3) to the auxiliary radiator. Refer to Auxiliary Radiator Inlet Hose Replacement (LF3) .

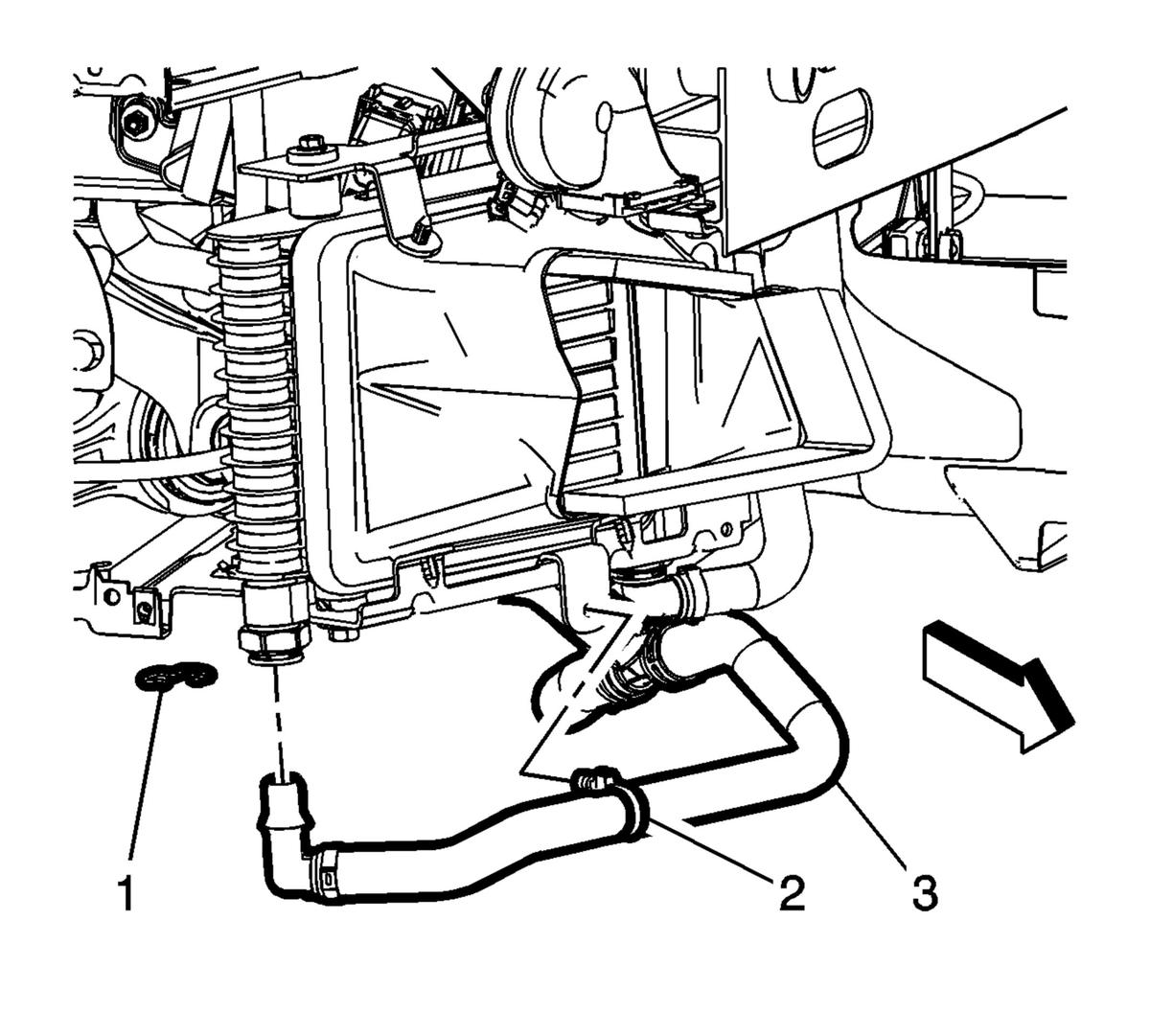

    Fig 6: Auxiliary Radiator Inlet Hose
    GM3600416Courtesy of GENERAL MOTORS COMPANY
  8. Install the radiator inlet hose (2) to the radiator. Refer to Radiator Inlet Hose Replacement (LF3) .
    Fig 7: Radiator Inlet Hose (LF3)
    GM3576053Courtesy of GENERAL MOTORS COMPANY
  9. Connect the radiator surge tank inlet hose (2) to the radiator. Refer to Radiator Surge Tank Inlet Hose Replacement (LF3) .

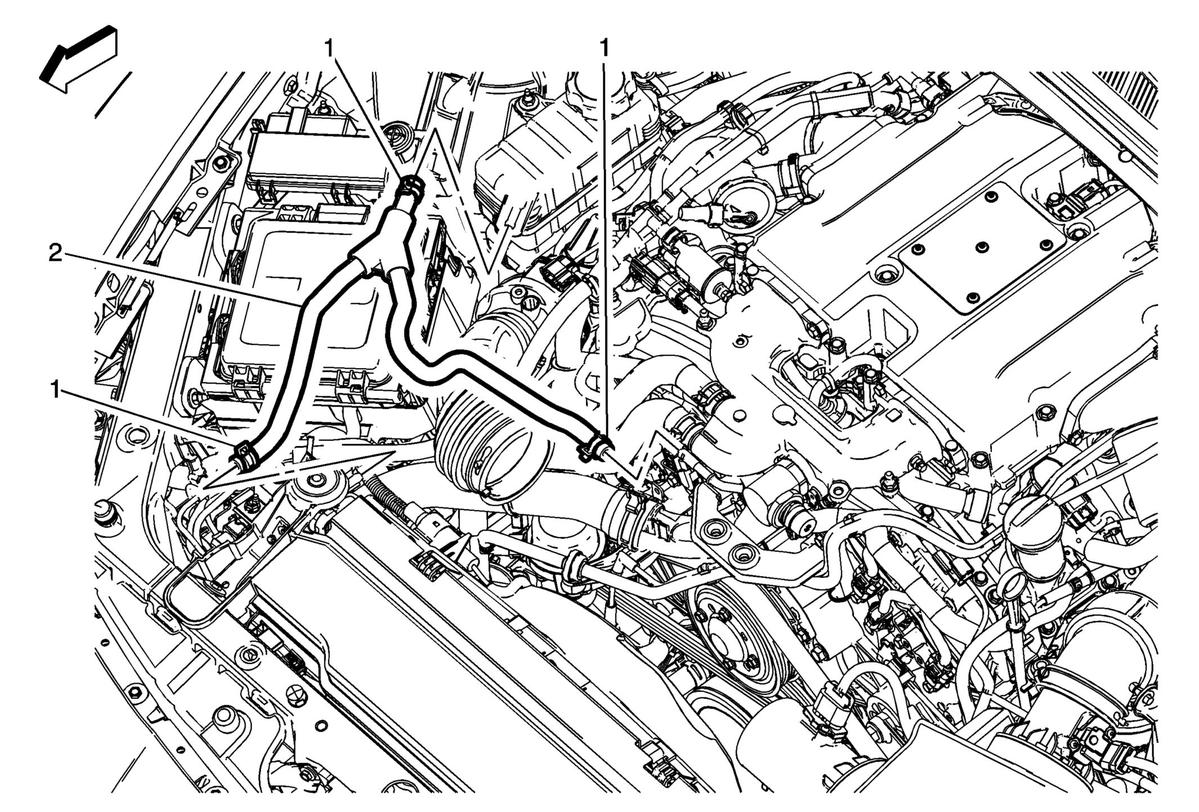

    Fig 8: Radiator Surge Tank Inlet Hose (LF3)
    GM3575960Courtesy of GENERAL MOTORS COMPANY
  10. Install the air conditioning condenser (2). Refer Air Conditioning Condenser Replacement (LF3 with V03) .

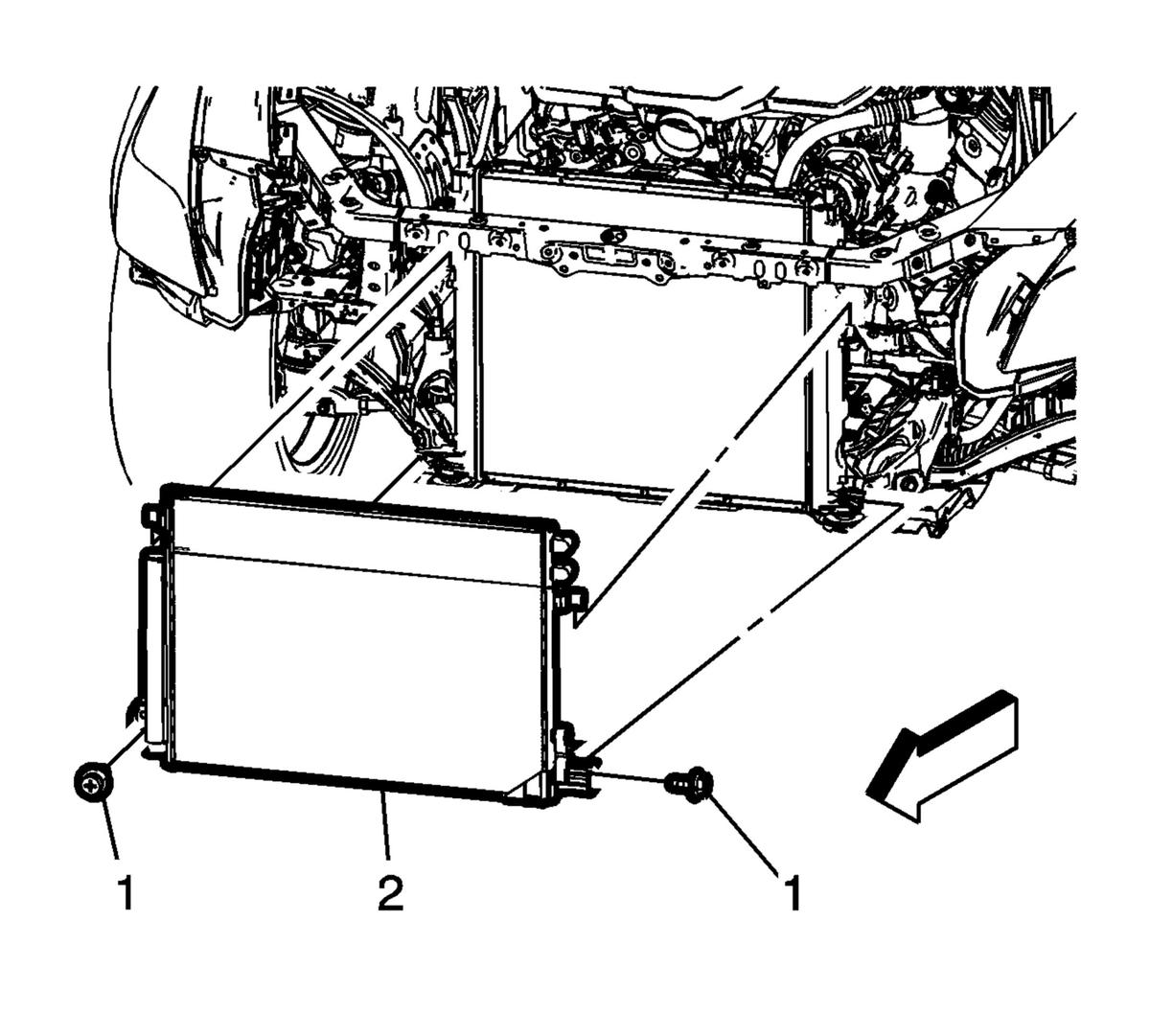

    Fig 9: Air Conditioning Condenser
    GM3511940Courtesy of GENERAL MOTORS COMPANY
  11. Fill the engine cooling system. Refer to Cooling System Draining and Filling (Static Fill)  and Cooling System Draining and Filling (GE 47716) .
  12. Check the cooling system for leaks. Refer to Cooling System Leak Testing .
