Fuel Tank Vent Valve Hose Replacement (Fuel Tank Fuel Pump Module)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement . |
|

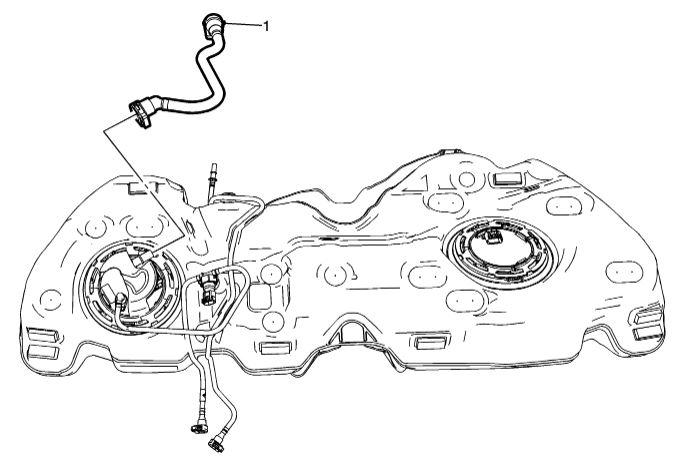

| 1 | Fuel Tank Vent Valve Hose Procedure Disconnect the fuel tank vent valve hose from the fuel tank fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service . |
