Engine Exhaust Flow Control

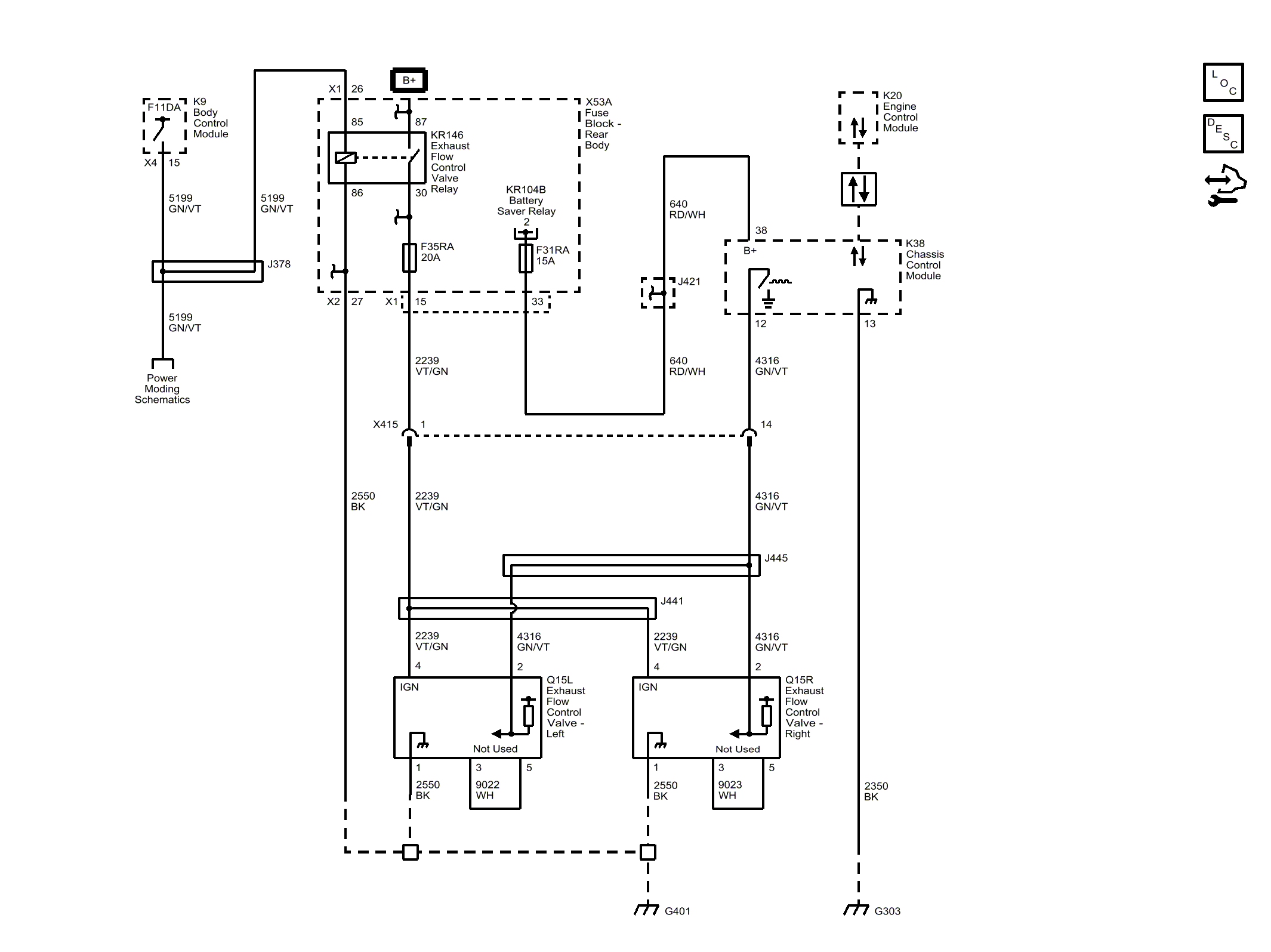

Fig 1: Engine Exhaust Flow Control
GM4493184Courtesy of GENERAL MOTORS COMPANY
