Installation Procedure

  1. Clean and lubricate the exhaust isolators for ease of installation.
  2. With the aid of an assistant, install the exhaust system to the vehicle.

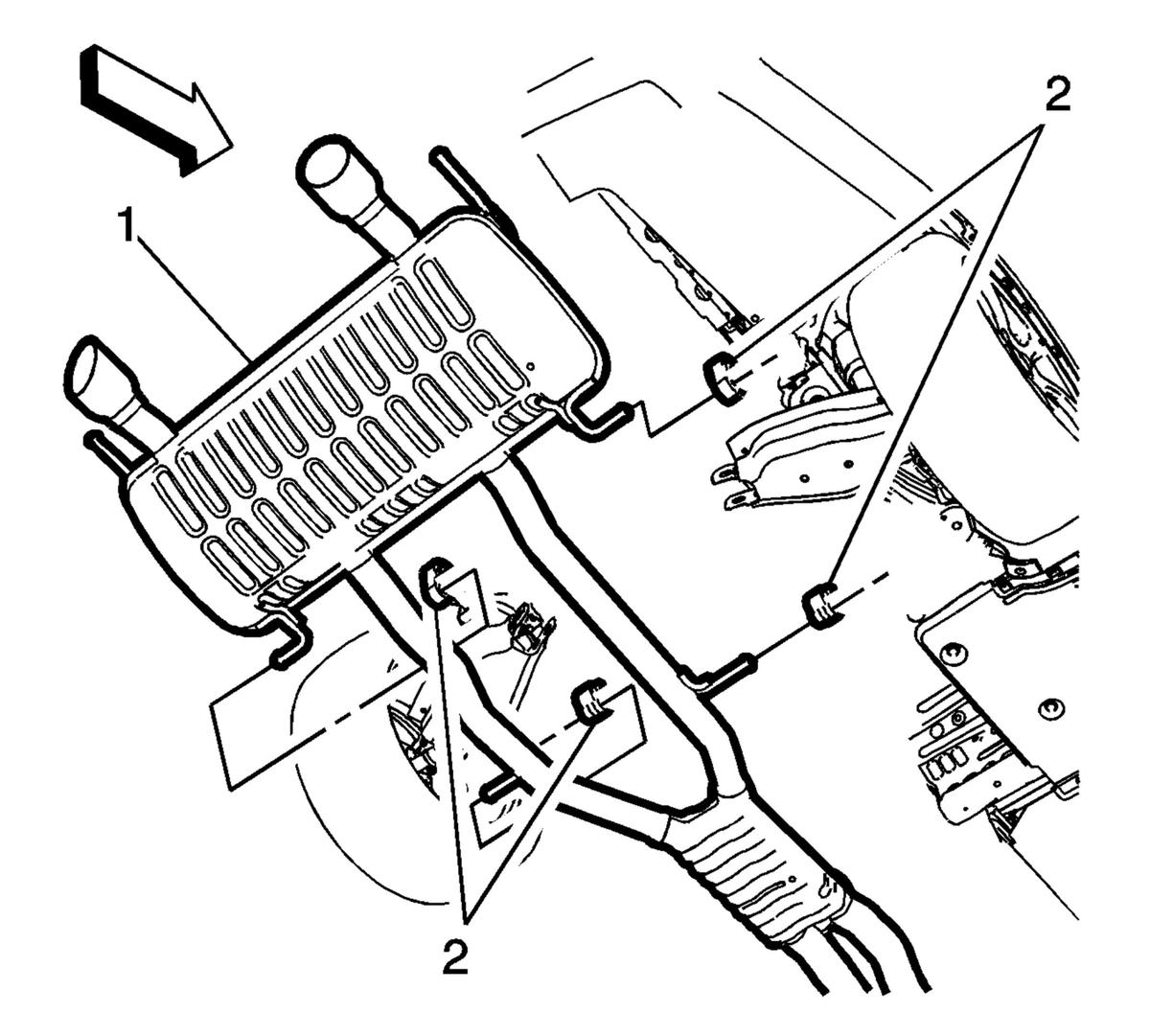

    3. Fig 1: Exhaust Muffler & Isolators
    GM2788817Courtesy of GENERAL MOTORS COMPANY
  3. Install Exhaust Muffler Assembly (1) at Exhaust Muffler Isolator (2)
  4. Install Floor Panel Number 4 Cross Bar Replacement
  5. Install Exhaust Rear Muffler Rear Hanger Replacement (Steel Design) Exhaust Rear Muffler Rear Hanger Replacement (Aluminum Design)
  6. Connect Catalytic Converter at Exhaust Muffler Assembly - Catalytic Converter Replacement - Left Side (LF3) Catalytic Converter Replacement - Left Side (LGX)
  7. Connect Catalytic Converter at Exhaust Muffler Assembly - Catalytic Converter Replacement - Right Side (LF3) Catalytic Converter Replacement - Right Side (LGX)
  8. Install Rear Bumper Fascia ReplacementRear Bumper Fascia Replacement (CTS-V)
