Installation Procedure

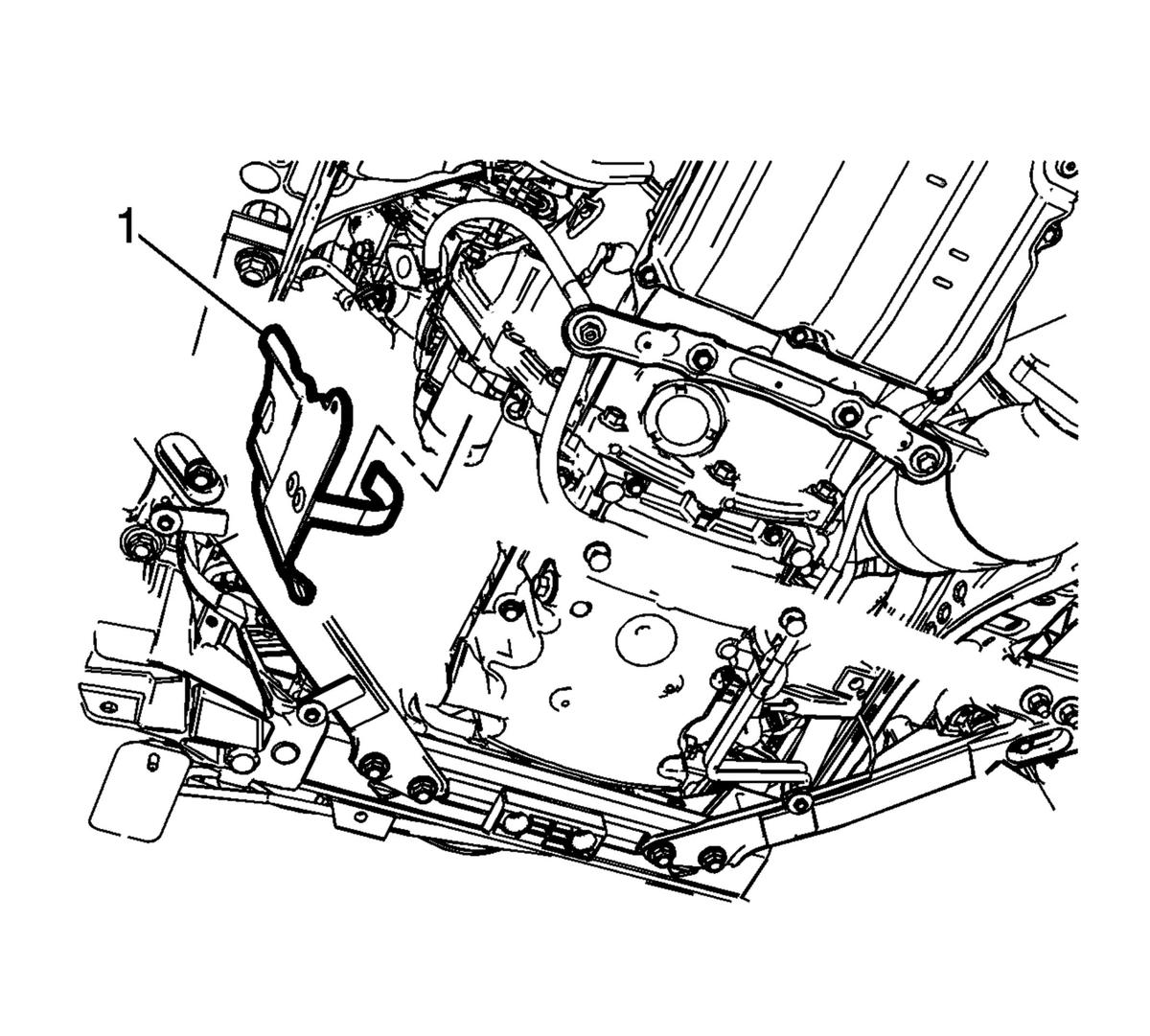

    Fig 1: Starter Heat Shield
    GM3553871Courtesy of GENERAL MOTORS COMPANY
  1. Position the starter shield (1), to the starter, with the retaining clip.

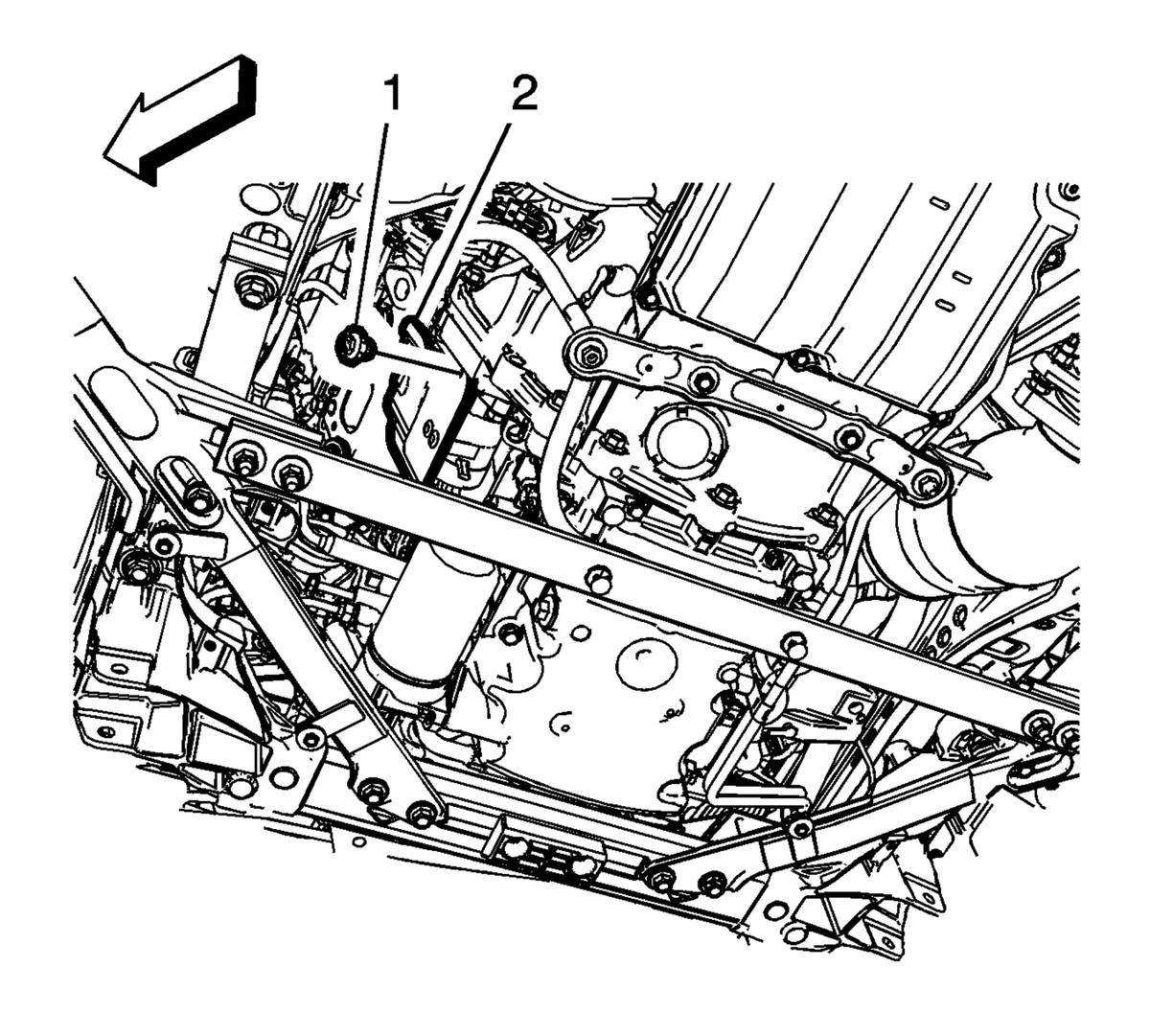

    2. Fig 2: Starter Shield Fastener
    GM3553870Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the starter shield fastener (1) and tighten to 4.7 N.m (42 lb in).
  3. Lower the vehicle.
