Power, Ground, Serial Data and Traction Control Switch

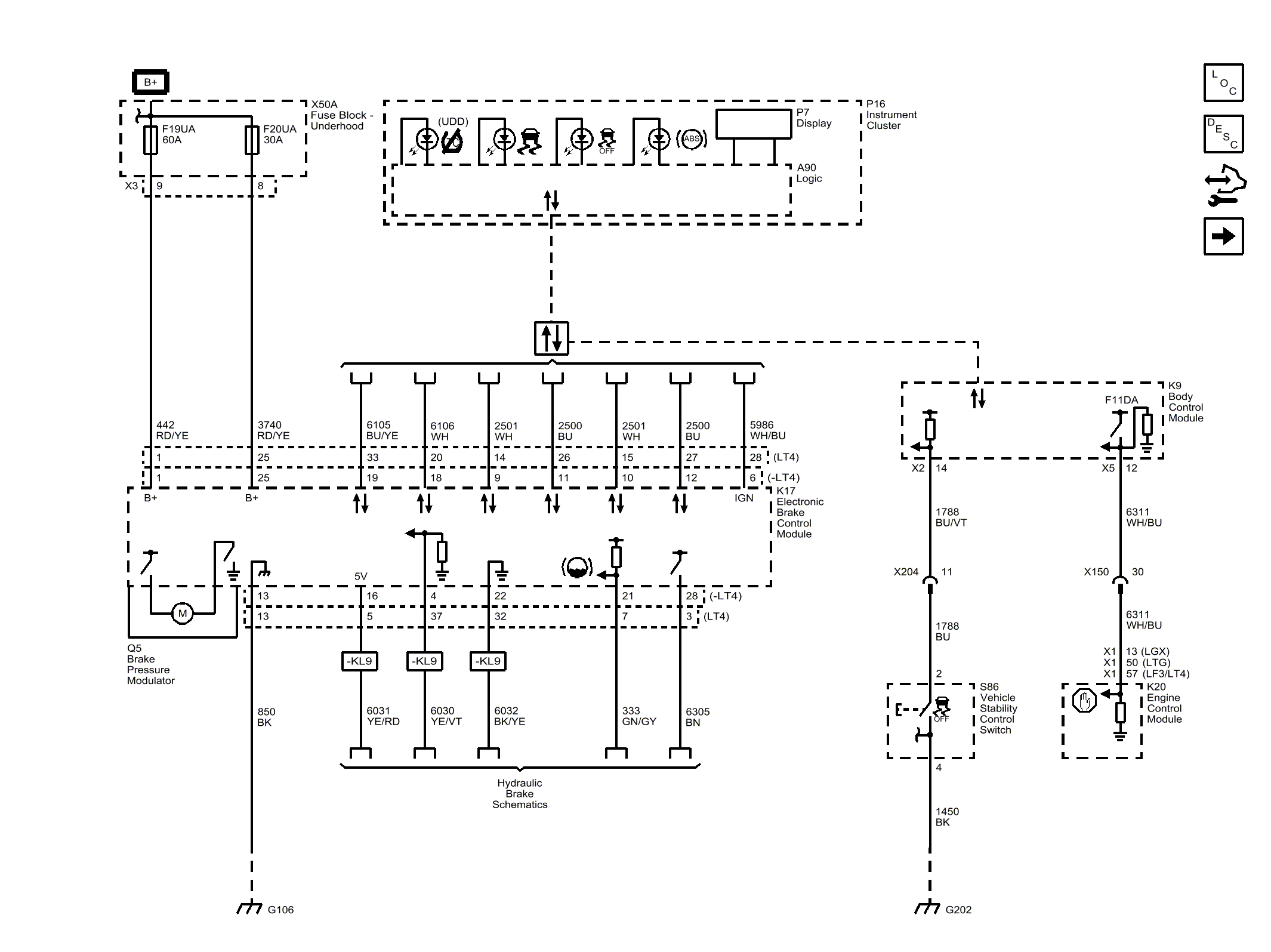

Fig 1: Power, Ground, Serial Data and Traction Control Switch

GM4492731

Courtesy of GENERAL MOTORS COMPANY
