Rear Seat Heater Control Module Replacement

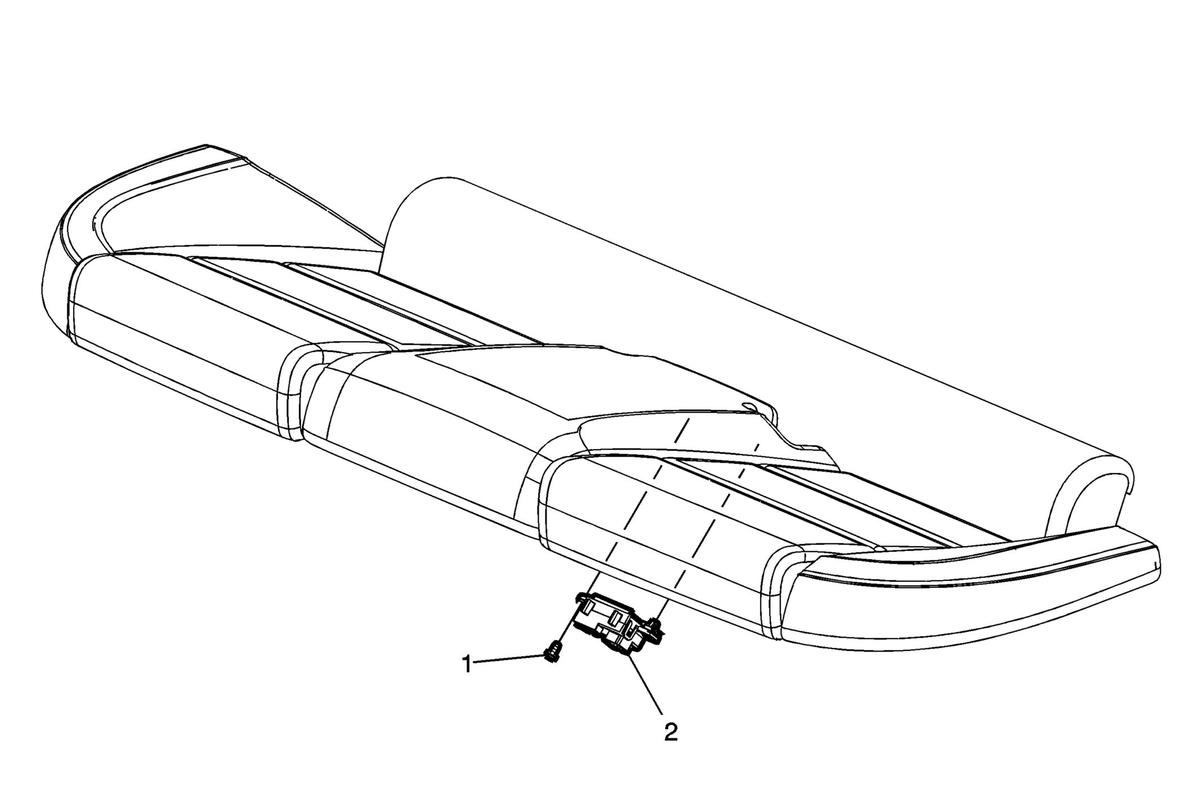

Fig 1: Rear Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1	Rear Seat Heater Control Module Fastener (Qty: 2)
2	Rear Seat Heater Control Module Procedure Disconnect the electrical connector. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .

Rear Seat Heater Control Module Fastener (Qty: 2)

Rear Seat Heater Control Module

Procedure
