Engine Lower Front Splash Shield Replacement

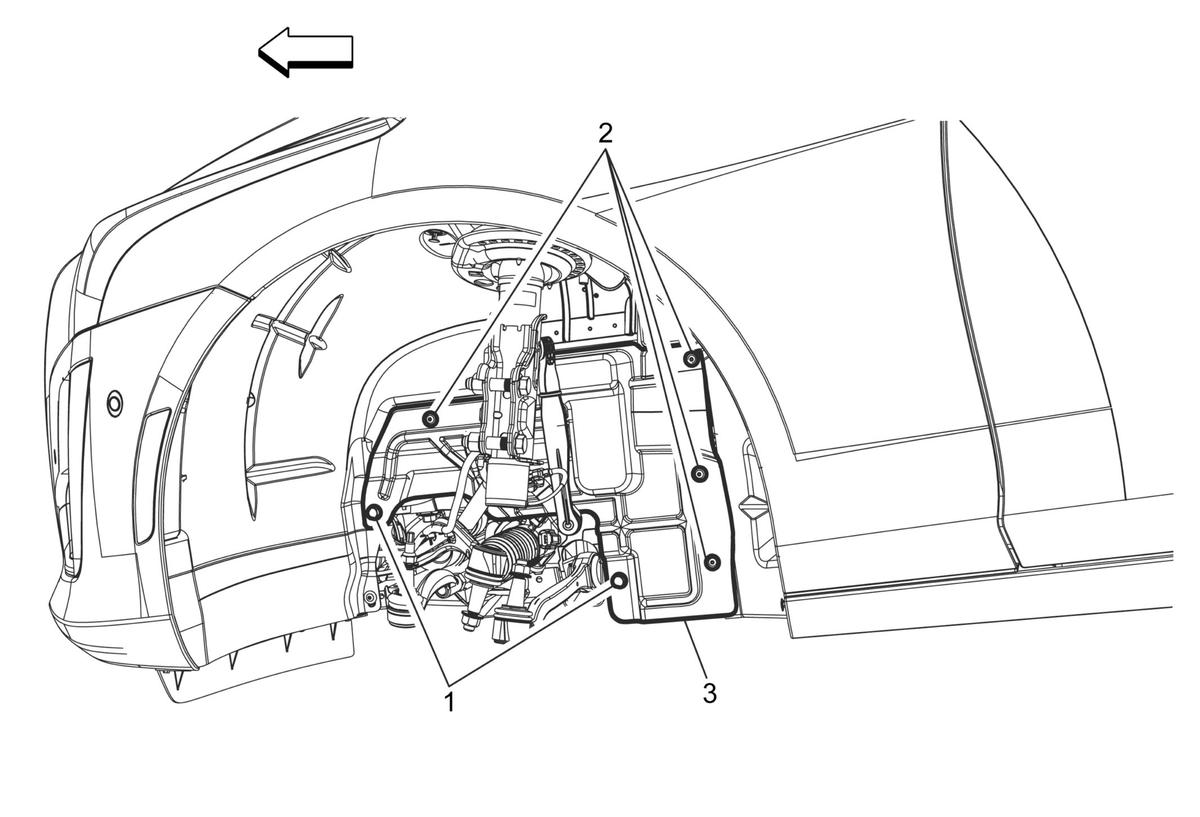

Fig 1: Engine Lower Front Splash Shield
GM3641547Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1 Engine Lower Front Splash Shield Push-In Retainer (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Engine Lower Front Splash Shield Screw (Qty: 4)
3 Engine Lower Front Splash Shield
