Mobile Telephone Microphone Replacement

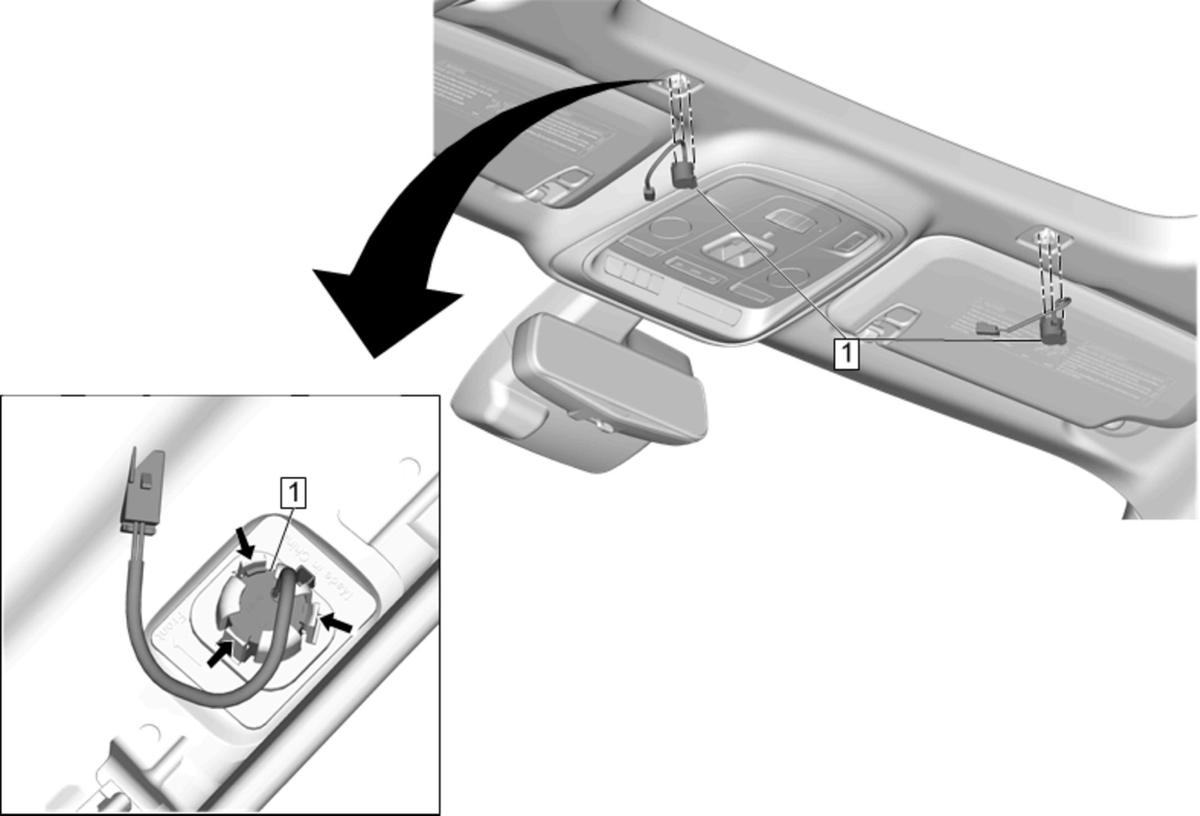

Fig 1: Mobile Telephone Microphone
GM4534621Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Mobile Telephone Microphone Grille Replacement
  2. It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With Sunroof)Headlining Trim Panel Replacement (Without Sunroof)
1 Mobile Telephone Microphone

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
