Removal Procedure

  1. Instrument Panel Compartment [2x]» Remove - Instrument Panel Compartment Replacement

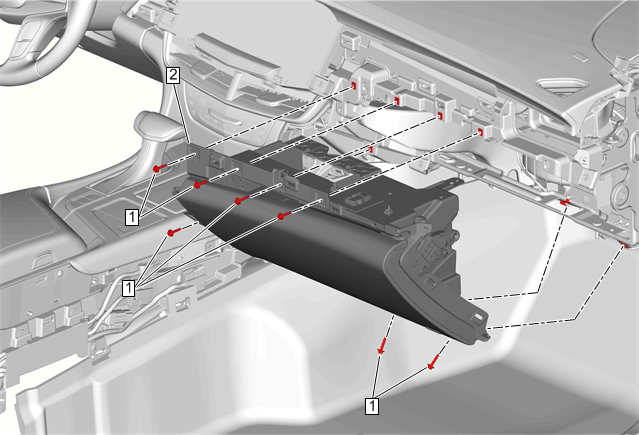

    Fig 1: Instrument Panel Compartment
    GM4248240Courtesy of GENERAL MOTORS COMPANY
  2. Heater and Air Conditioning Mode Control Cam Cover Bolt (1)» Remove [4x]

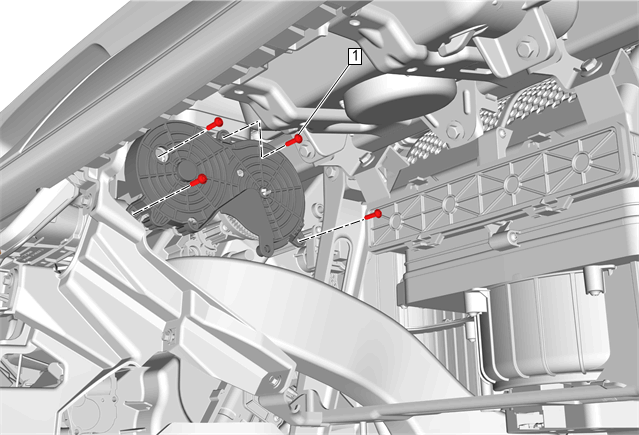

    Fig 2: Heater and Air Conditioning Mode Control Cam Cover And Retaining Bolts
    GM4257773Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the electrical connector.
  4. Heater and Air Conditioning Mode Control Cam Cover (1)» Remove

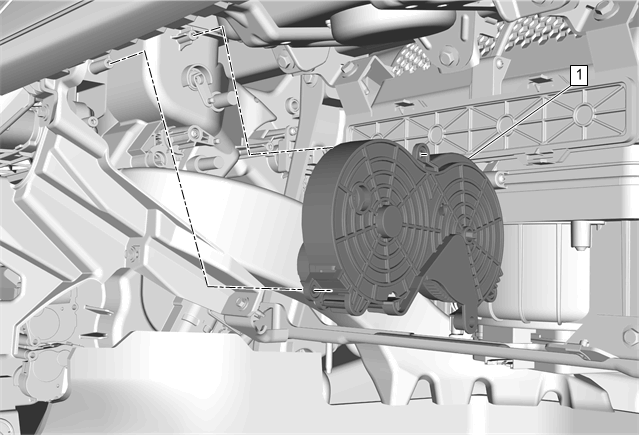

    Fig 3: Heater and Air Conditioning Mode Control Cam Cover
    GM4257774Courtesy of GENERAL MOTORS COMPANY
  5. Transfer components as necessary.
