Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power MODING Schematics
>>
Schematic Wiring Diagrams
>>
Power Moding Wiring Schematics
>>
Ignition Power and Ignition Main Relays
Ignition Power and Ignition Main Relays

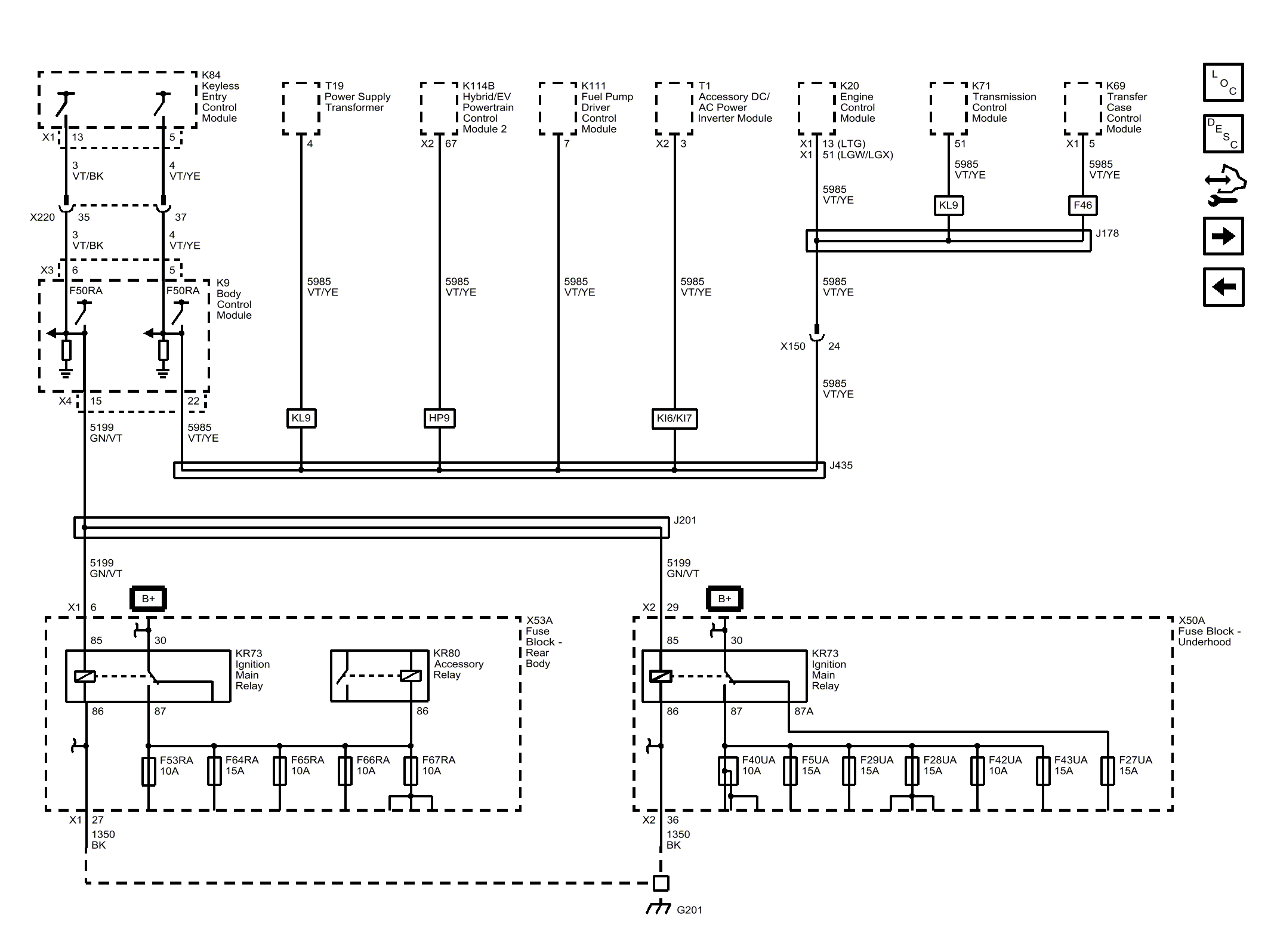

Fig 1: Ignition Power and Ignition Main Relays
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
