Front Seat Heating Control Module Power, Ground, Serial Data and Controls (KA1)

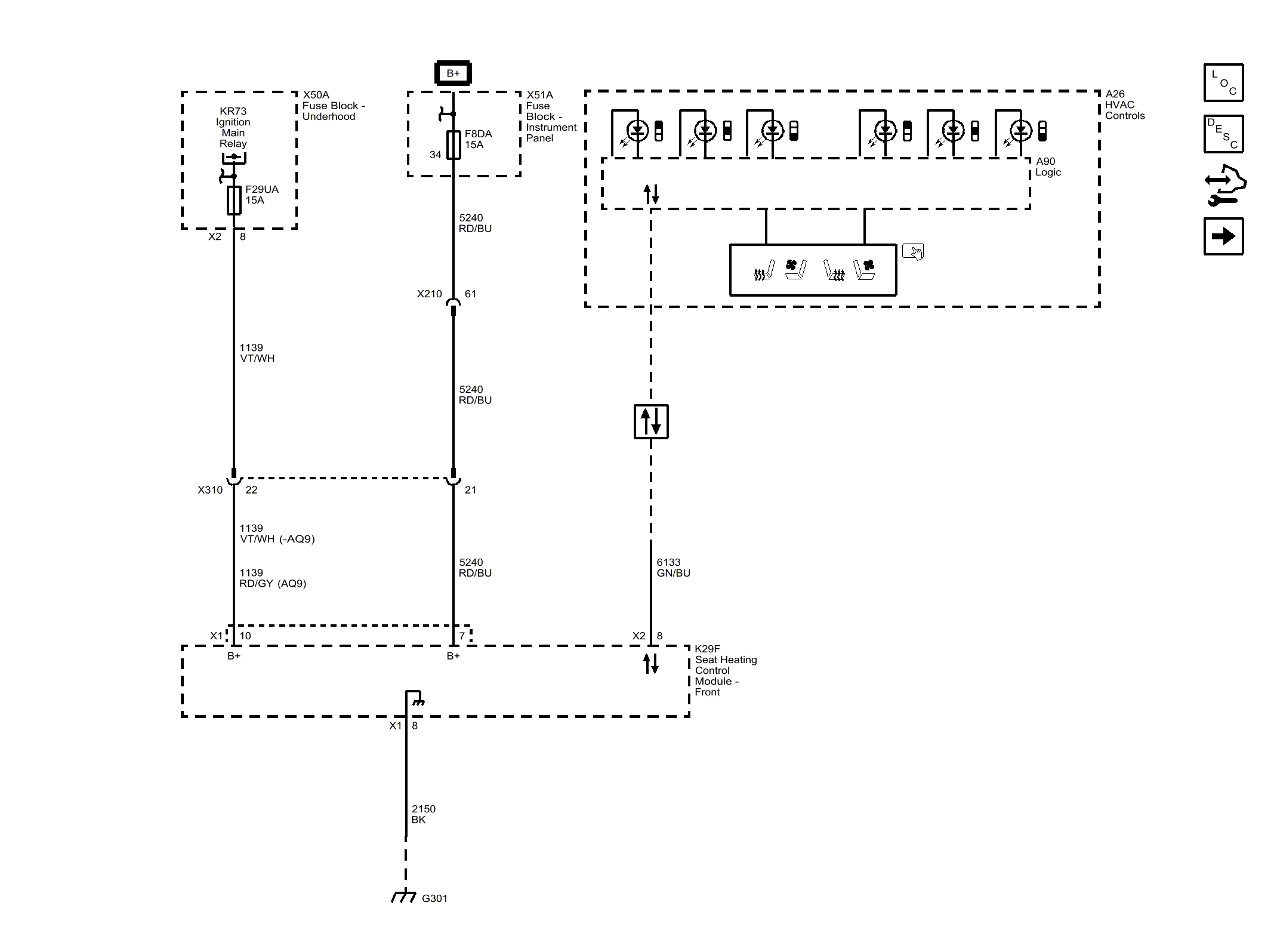

Fig 1: Front Seat Heating Control Module Power, Ground, Serial Data and Controls (KA1)

GM4489985

Courtesy of GENERAL MOTORS COMPANY
