Engine Front Splash Shield Replacement - Left Side (Front)

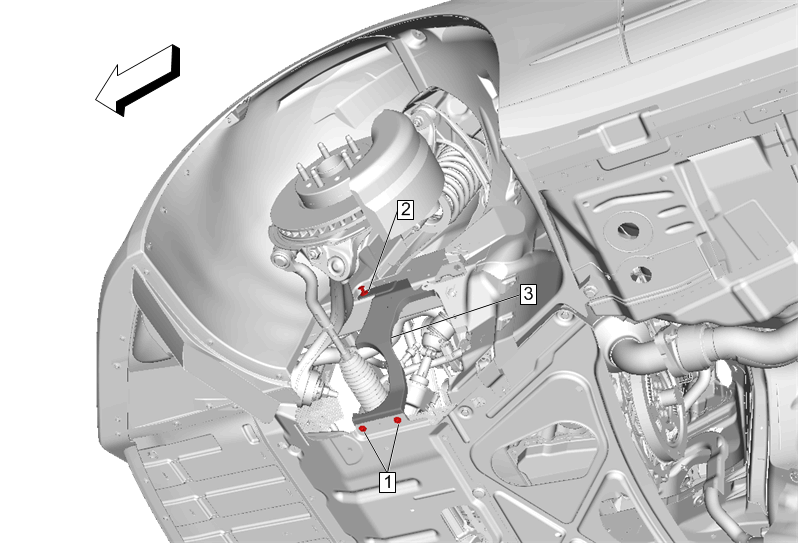

Fig 1: Engine Front Splash Shield - Left Side (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the left front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
1	Engine Front Splash Shield Bolt [2x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Retainer
3	Engine Front Splash Shield - Left Side
