Front Suspension 4 Corner Leveling System Position Sensor Replacement

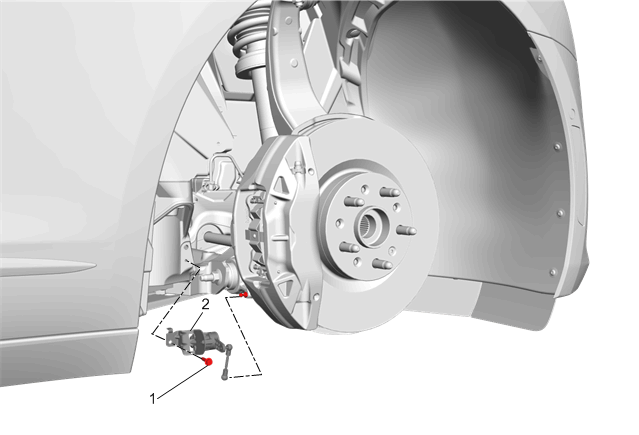

Fig 1: Front Suspension 4 Corner Leveling System Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement
1	Front Suspension 4 Corner Leveling System Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Suspension 4 Corner Leveling System Position Sensor Procedure Disconnect the electrical connector. Using an appropriate tool, separate the ball and socket.

Callout

Component Name

Front Suspension 4 Corner Leveling System Position Sensor Fastener

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Front Suspension 4 Corner Leveling System Position Sensor

Procedure
