Radio/Navigation System Wiring Schematics: Controls

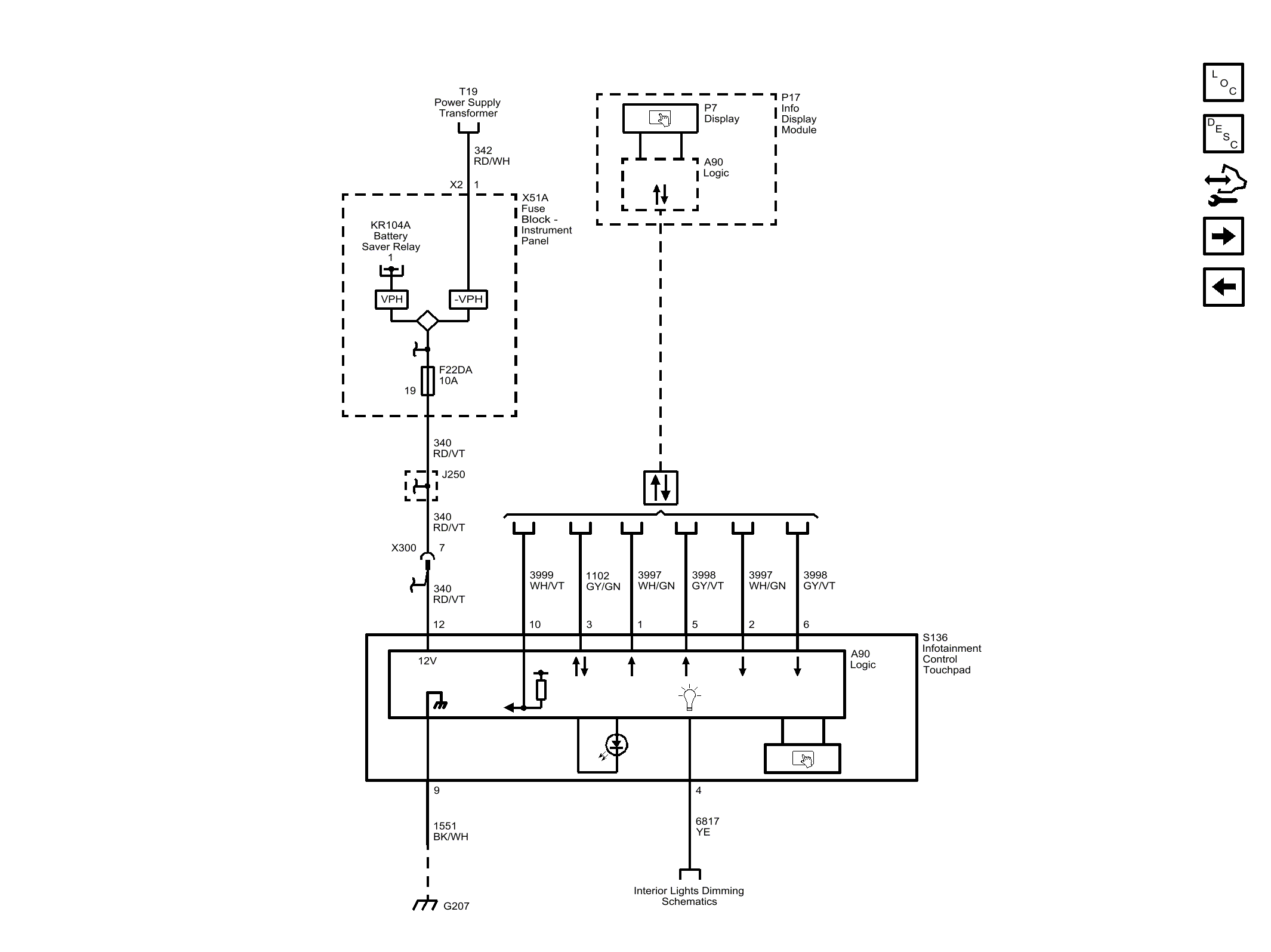

Fig 1: Controls

GM4489722

Courtesy of GENERAL MOTORS COMPANY
