Installation Procedure

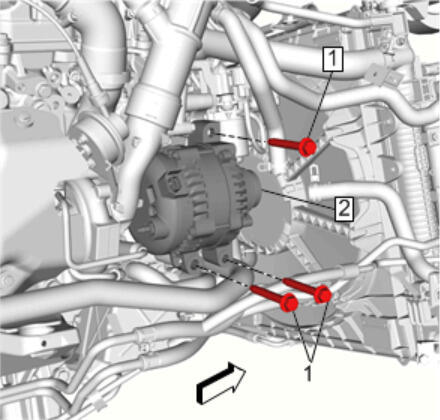

    Fig 1: Generator Bolt
    GM4277485Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install and tighten Generator Bolt (1) (Qty: 3) to 58 N.m (43 lb ft)

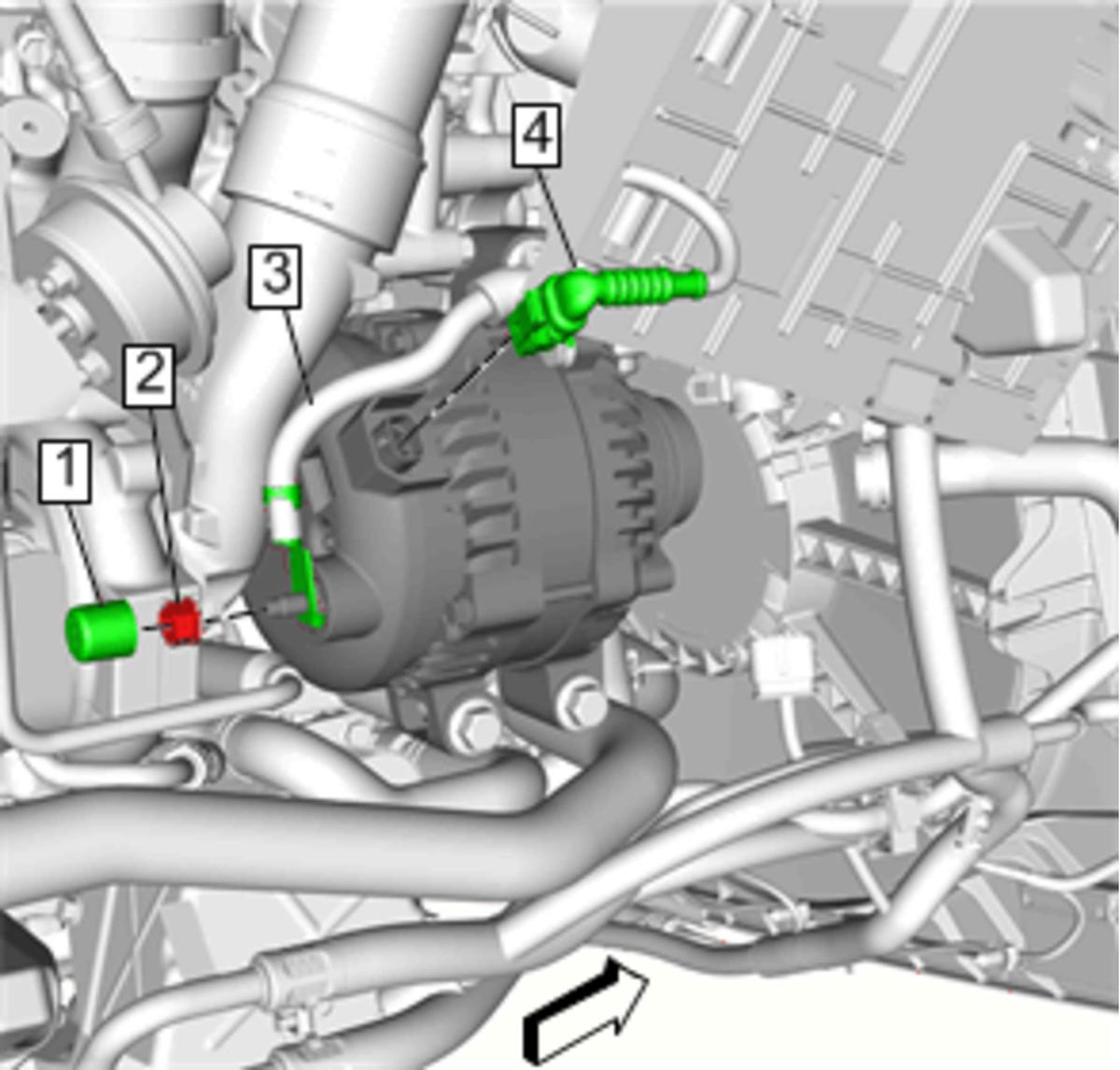

    3. Fig 2: Generator Electrical Connectors
    GM4277484Courtesy of GENERAL MOTORS COMPANY
  3. Connect Electrical Connector (4)
  4. Install Starter Solenoid Cable (3)
  5. Install and tighten Generator Nut (2) to 15 N.m (11 lb ft)
  6. Install Protective Cap (1)

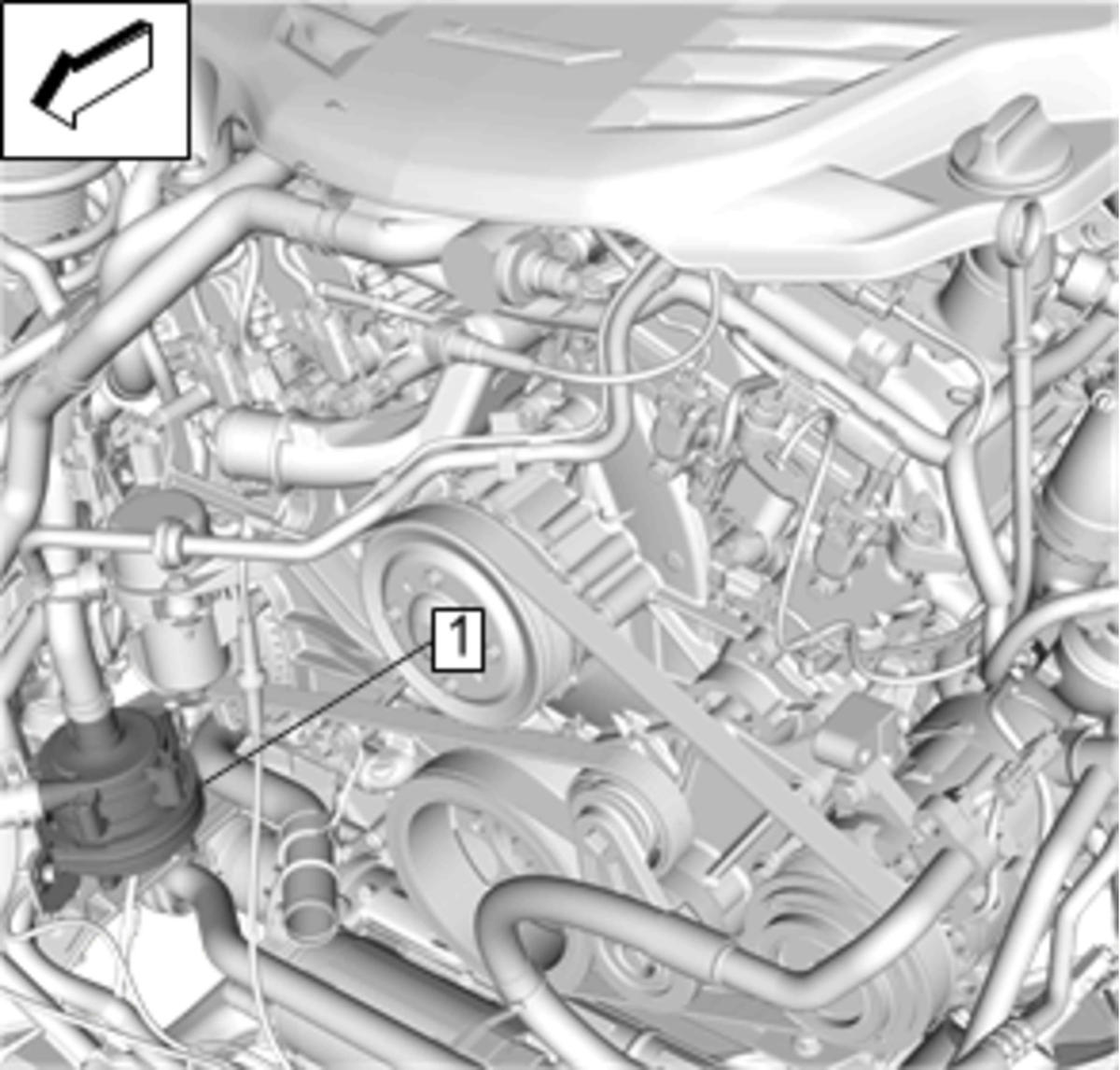

    7. Fig 3: Charge Air Cooler Coolant Pump
    GM4277609Courtesy of GENERAL MOTORS COMPANY
  7. Install Charge Air Cooler Coolant Pump (1). Refer to Charge Air Cooler Coolant Pump Replacement (LF4)

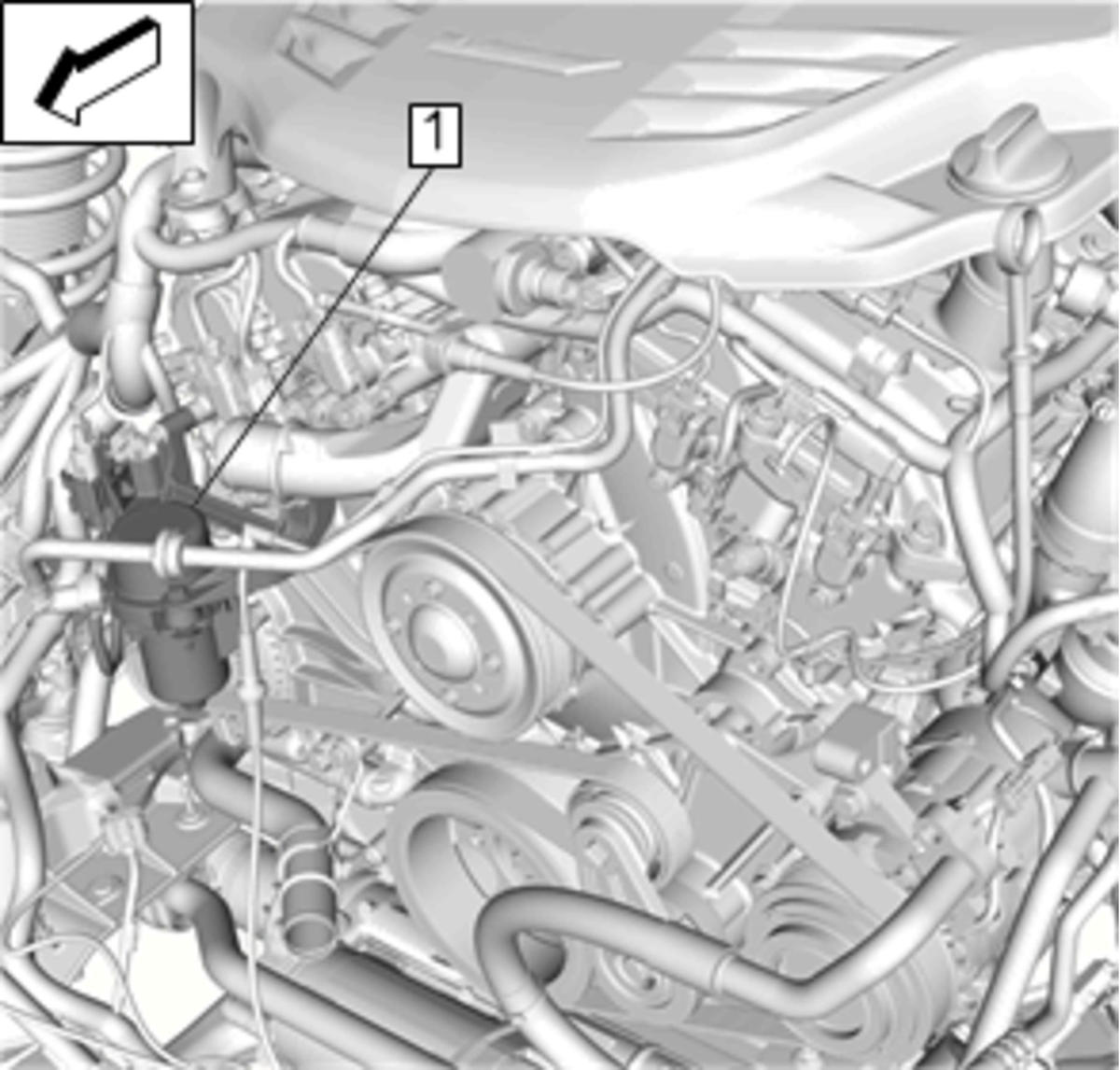

    8. Fig 4: Power Brake Booster Pump
    GM4277601Courtesy of GENERAL MOTORS COMPANY
  8. Install Power Brake Booster Pump (1). Refer to Power Brake Booster Pump Replacement

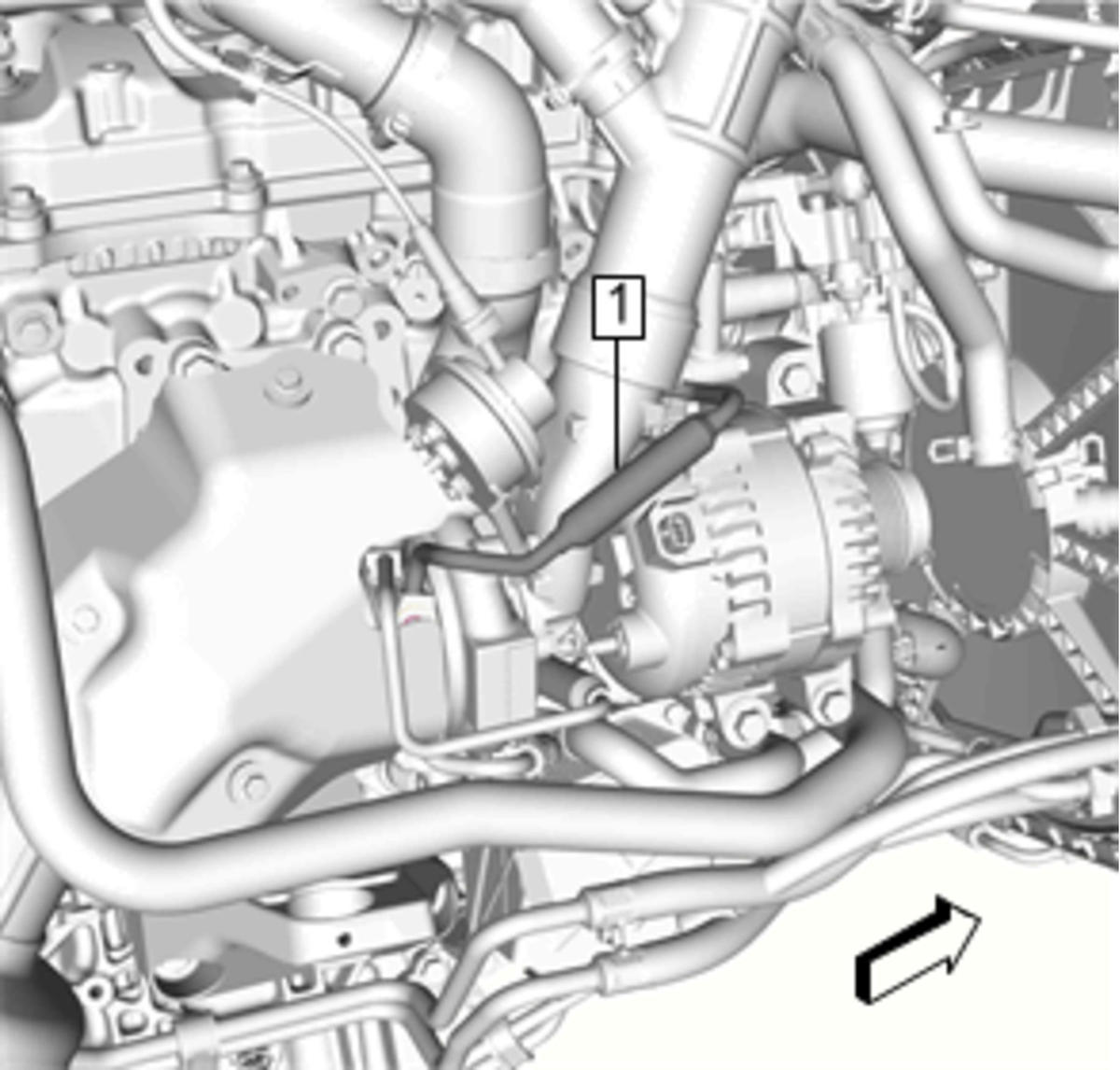

    9. Fig 5: Turbocharger Coolant Return Pipe
    GM4277467Courtesy of GENERAL MOTORS COMPANY
  9. Install Turbocharger Coolant Return Pipe (1). Refer to Turbocharger Coolant Return Pipe Replacement (LF4 - Bank 1)Turbocharger Coolant Return Pipe Replacement (LF4 - Bank 2)
  10. Install the drive belt. Refer to Drive Belt Replacement (LF4)
  11. Install Drivetrain and Front Suspension Frame. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LF4)
  12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
