Rear Body Fuse Block Replacement

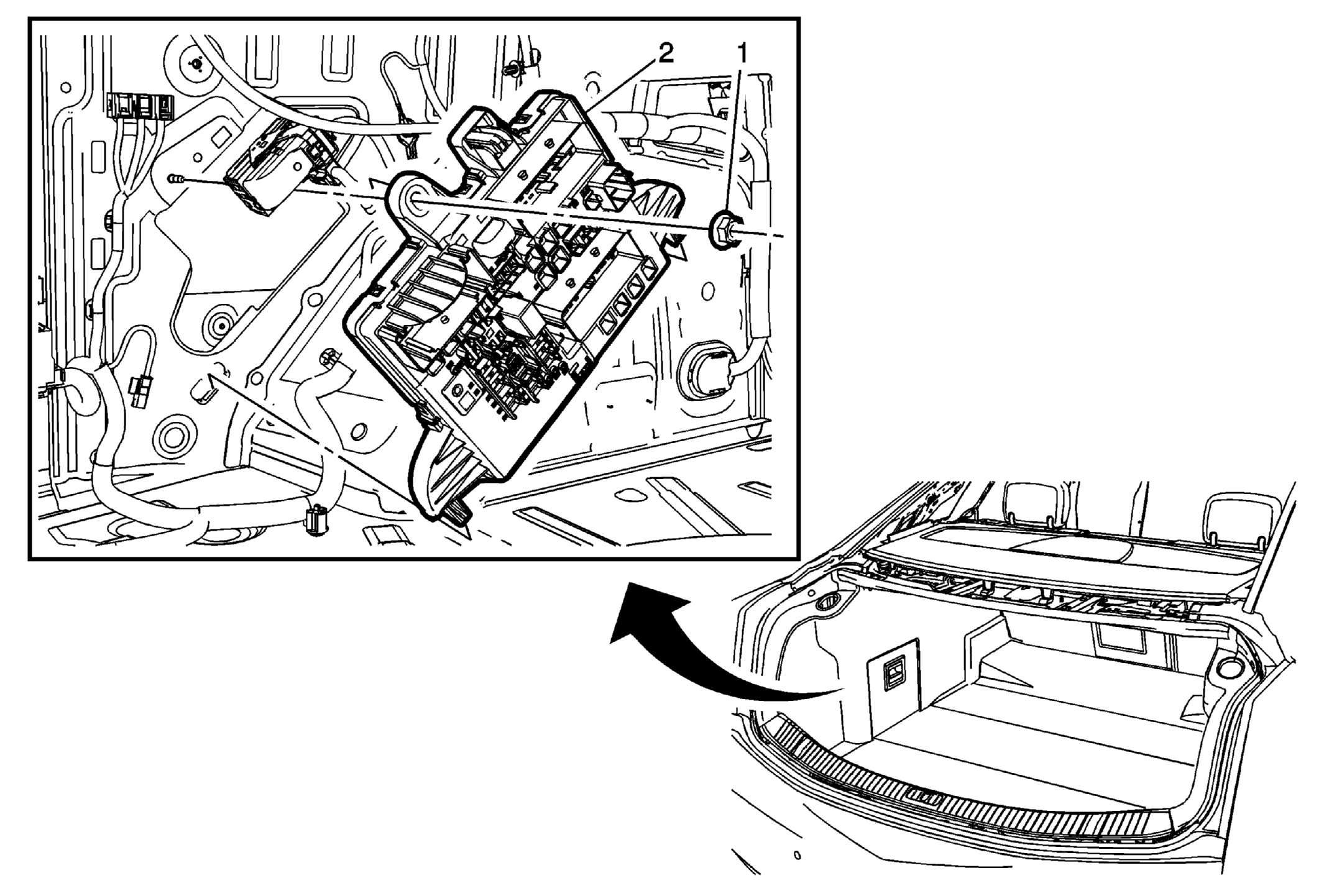

Fig 1: Rear Body Fuse Block & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left side fuse block access cover from the left rear compartment side trim panel.
1	Rear Body Fuse Block Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Body Fuse Block Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure
Remove the left side fuse block access cover from the left rear compartment side trim panel.

Rear Body Fuse Block Fastener

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Body Fuse Block

Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the electrical connectors.
