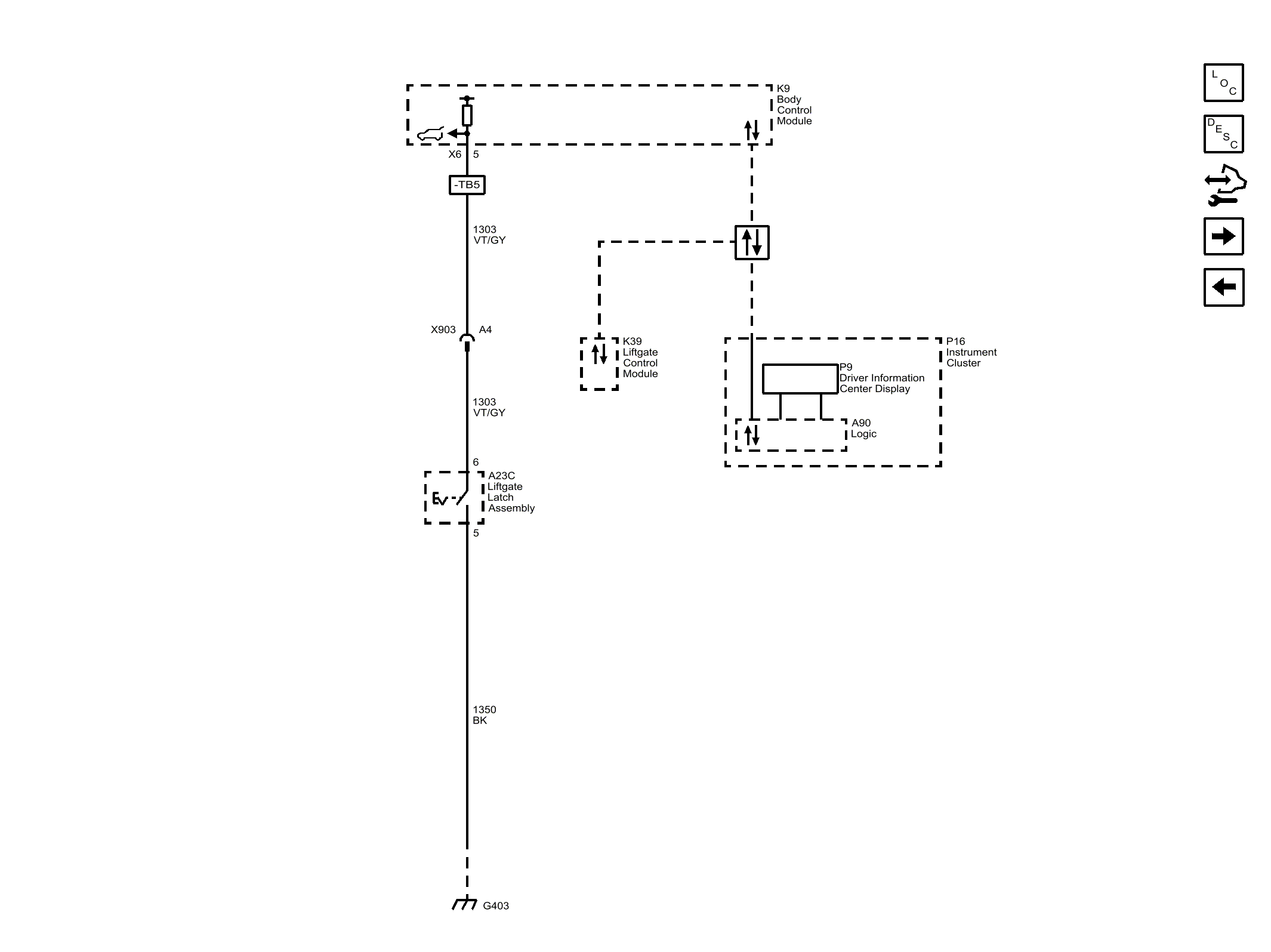

Home >> Cadillac >> 2016 >> SRX Base >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Power Door Lock System And Release Systems >> Schematic Wiring Diagrams >> Release Systems Wiring Schematics >> Liftgate Switch
