Front Side Door Lock Cylinder Rod Replacement

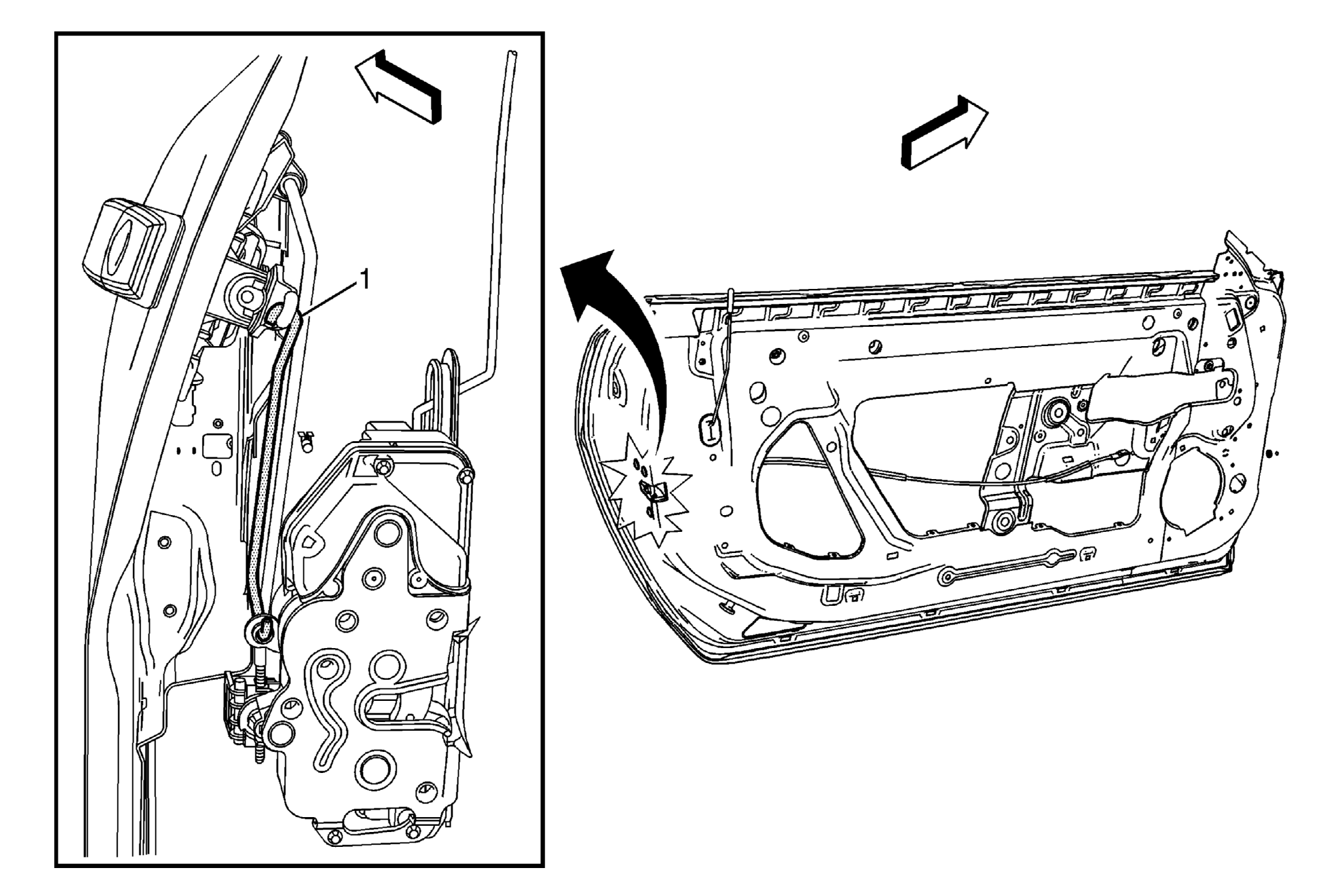

Fig 1: Front Side Door Lock Cylinder Rod
GM2177980Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
  2. Remove the front side door lock cover. Refer to Front Side Door Lock Cover Replacement .
  3. Remove the front side door lock. Refer to Front Side Door Lock Replacement .
1 Front Side Door Locking Cylinder Rod

Procedures

  1. Disconnect the electrical connectors.
  2. Transfer the front side lock rod.
  3. Inspect the door locking system for proper operation before installing the trim panel.
