Front Side Door Inside Handle Cable Replacement

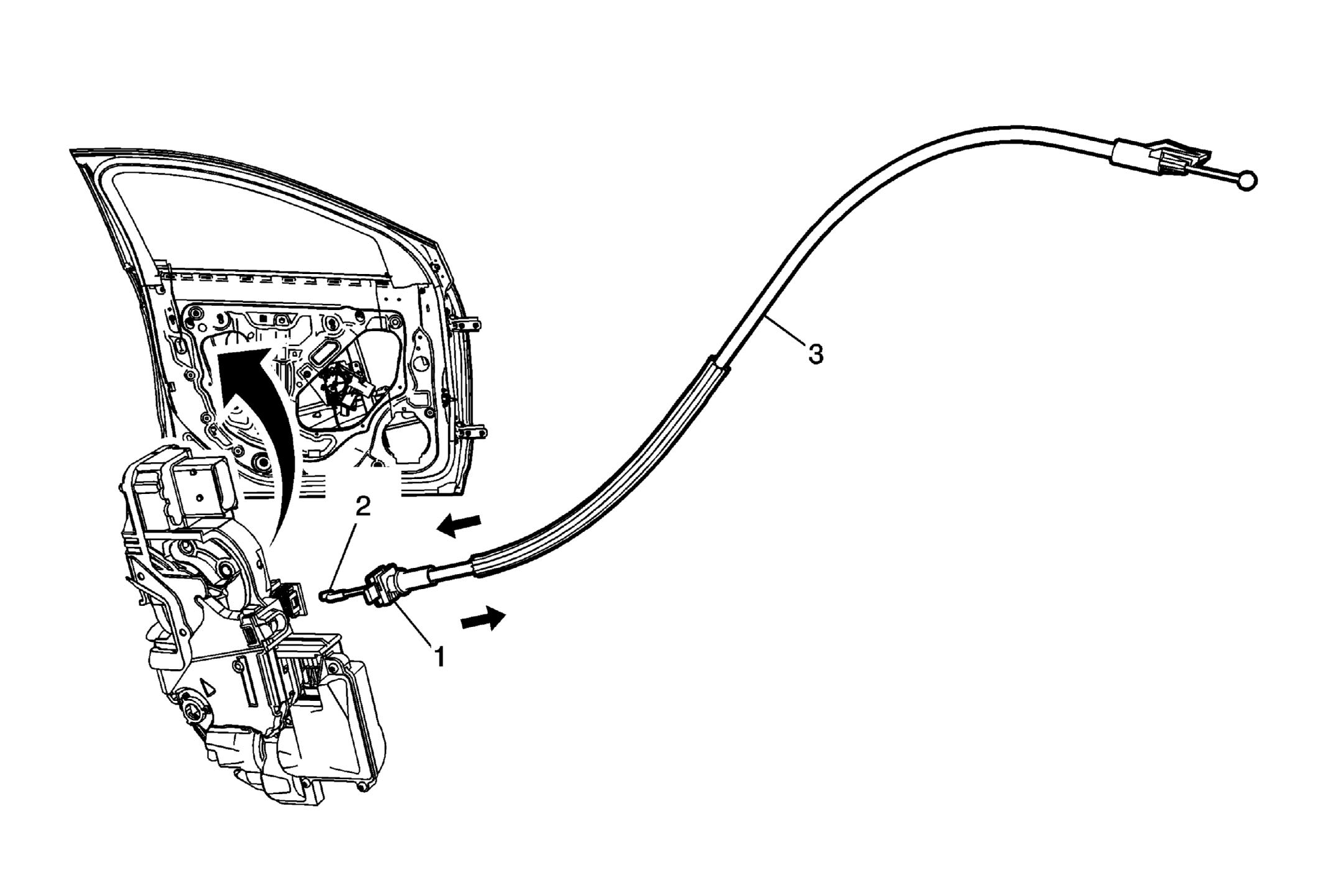

Fig 1: Front Side Door Inside Handle Cable
GM2226134Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
  2. Remove the front side door lock. Refer to Front Side Door Lock Replacement
1 Front Side Door Inside Handle Cable Retainer

Procedure

  1. Release the cable retainer to open access door on the lock.
  2. Release the cable retainer and slide cable out of the lock.
2 Front Side Door Inside Handle Cable to Lock Retainer
3 Front Side Door Inside Handle Cable
Procedure
Inspect the door for properly alignment, if needed refer to Front Side Door Lock Striker Adjustment .
