Accessory DC Power Control Module Cooling Air Inlet Duct Replacement

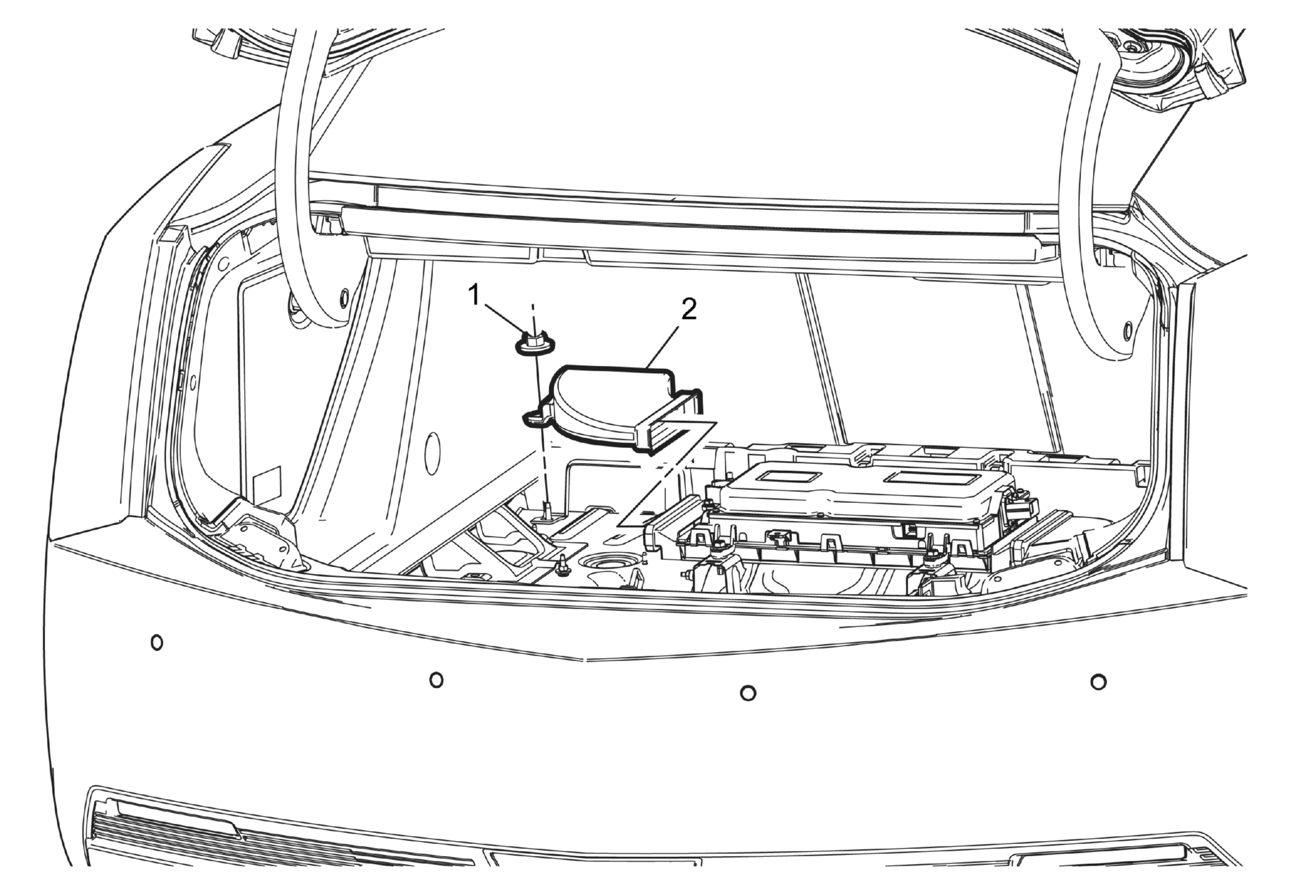

Fig 1: Accessory DC Power Control Module Cooling Air Inlet Duct

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure  Remove the floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement .
1	Accessory DC Power Control Module Cooling Air Inlet Duct Fastener CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Accessory DC Power Control Module Cooling Air Inlet Duct
