Easy Keyless Entry (ATH)

WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

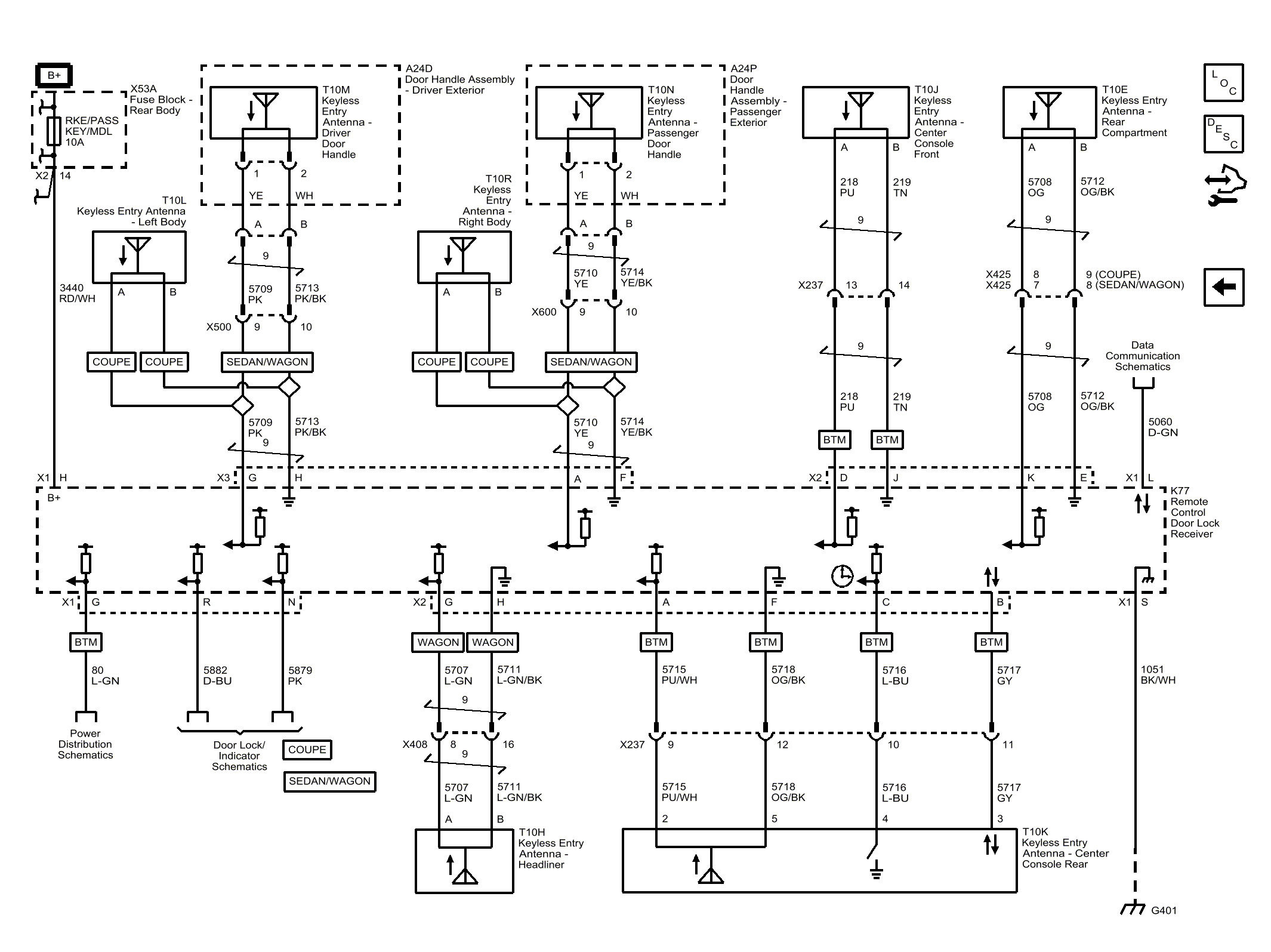

Fig 1: Easy Keyless Entry (ATH)
GM3766846Courtesy of GENERAL MOTORS COMPANY
