Object GMLAN Communications Enable (UGN or UVZ)

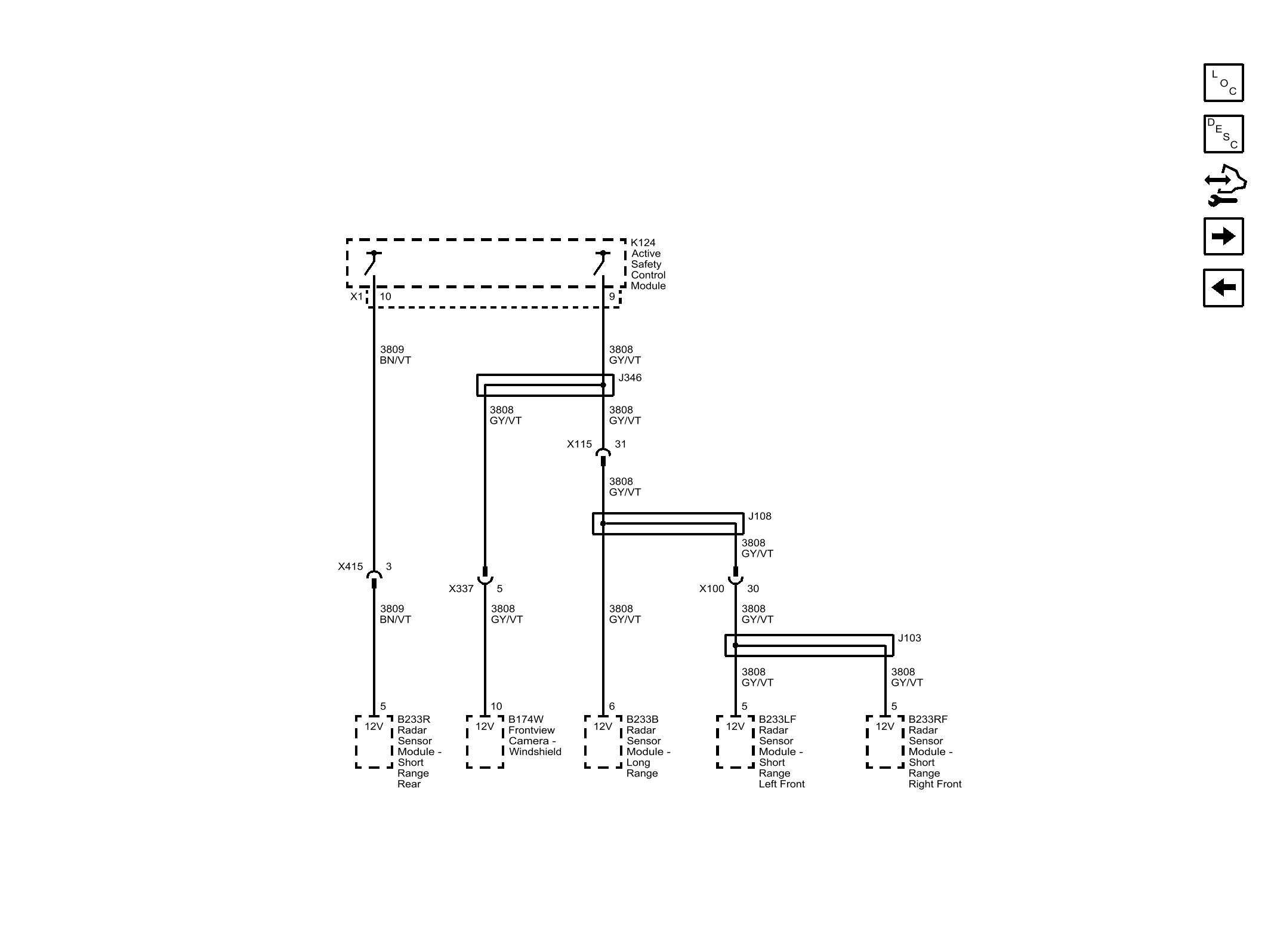

Fig 1: Object GMLAN Communications Enable (UGN or UVZ)

GM4078794

Courtesy of GENERAL MOTORS COMPANY
