Fuel Pressure Sensor Replacement - Fuel Feed Pipe
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Gasoline/Gasoline Vapors Warning
.
WARNING:
Refer to Safety Glasses Warning
. Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement . |
|

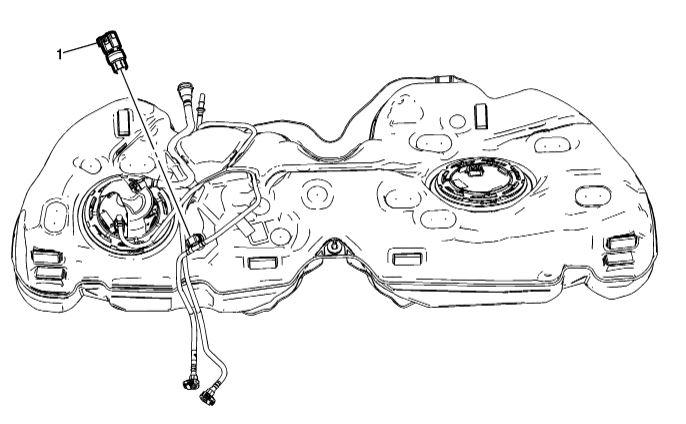

| 1 | Fuel Tank Pressure Sensor
CAUTION:
Refer to Component Fastener Tightening Caution
. Procedure Disconnect electrical connector and unclip sensor from retainer. |
