Front Side Door Window Switch Replacement - Right Side

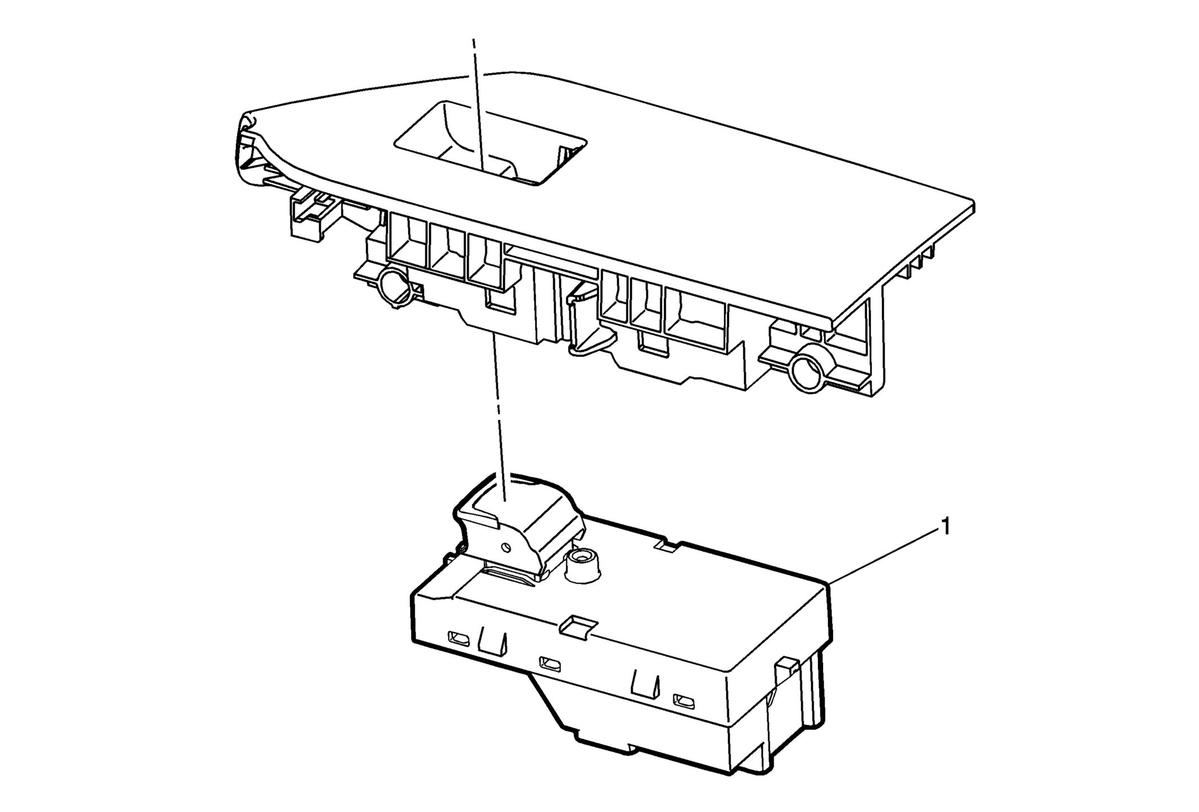

Fig 1: Front Side Door Window Switch - Right Side
GM3464519Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door) .
1 Front Side Door Window Switch Assembly - Right Side

Procedure

  1. Release tabs on switch to remove from front side door armrest switch mount plate.
  2. Refer to Control Module References for programming and set up procedures.
