Rear Body Fuse Block Replacement

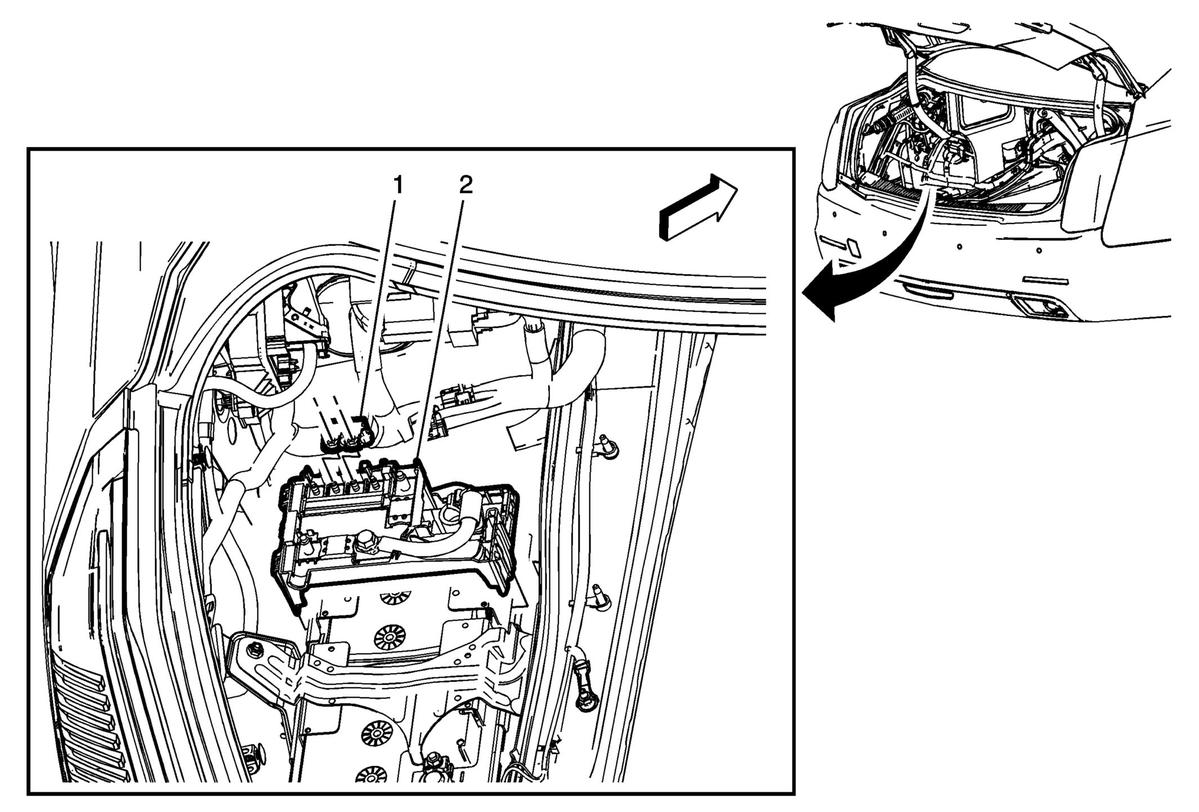

Fig 1: Rear Body Fuse Block

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the left hand side rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Left Side . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the battery positive cable by opening the battery fuse block cover and loosen the battery post cable clamp fastener and set the battery positive cable aside.
1	Rear Body Fuse Block Terminal Nut CAUTION: Refer to Fastener Caution . Procedure Reposition the fuse block terminal wires. Tighten 5 N.m (44 lb in)
2	Rear Body Fuse Block Procedure Loosen the positive battery post terminal nut. Release the tab retainers on each side of the rear body fuse block and remove.

Callout

Component Name

Preliminary Procedure

Reposition the left hand side rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Left Side .
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the battery positive cable by opening the battery fuse block cover and loosen the battery post cable clamp fastener and set the battery positive cable aside.

Rear Body Fuse Block Terminal Nut

CAUTION: Refer to Fastener Caution .

Procedure
Reposition the fuse block terminal wires.
Tighten
5 N.m (44 lb in)

Rear Body Fuse Block
Procedure
