Ignition and Start Switch Replacement

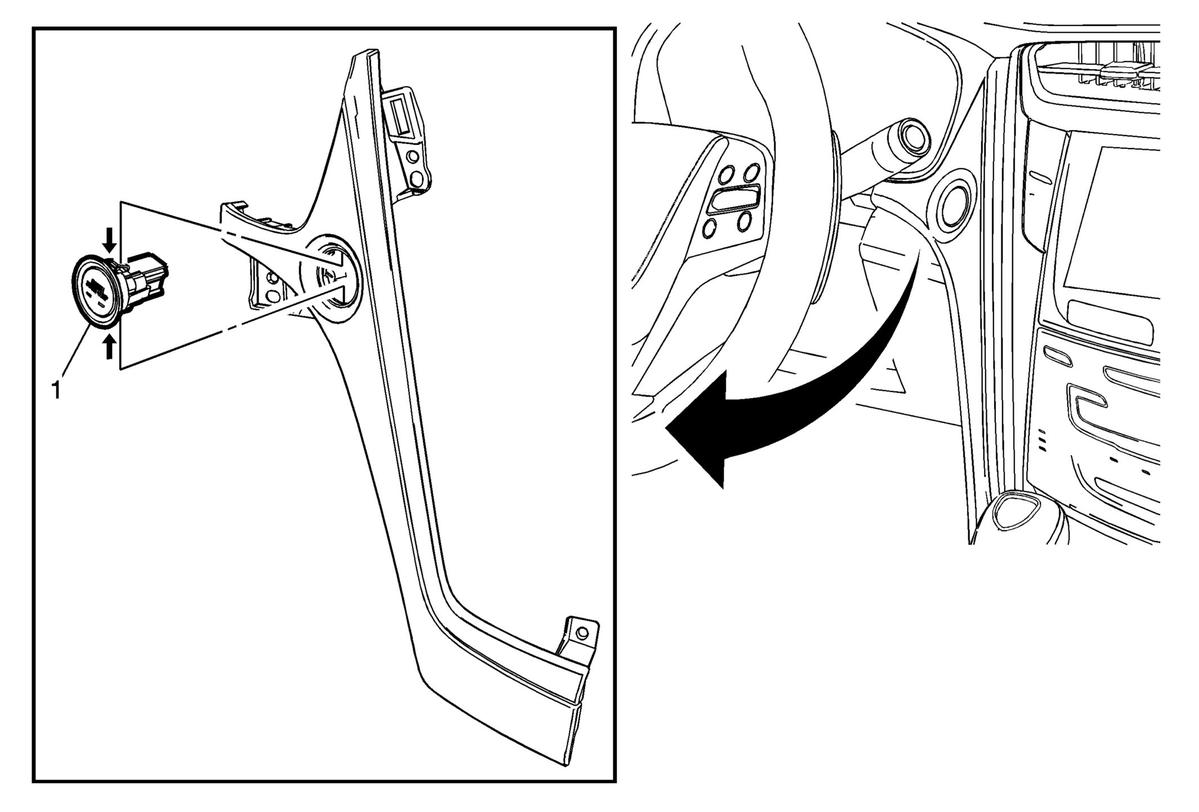

Fig 1: Ignition and Start Switch
GM3461711Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel lower center trim panel - left side. Refer to Instrument Panel Lower Center Trim Panel Replacement (Right Side) and Instrument Panel Lower Center Trim Panel Replacement (Left Side) .
1 Ignition and Start Switch

Procedure

  1. Disconnect electrical connection.
  2. Depress tabs on switch and remove from the panel.
