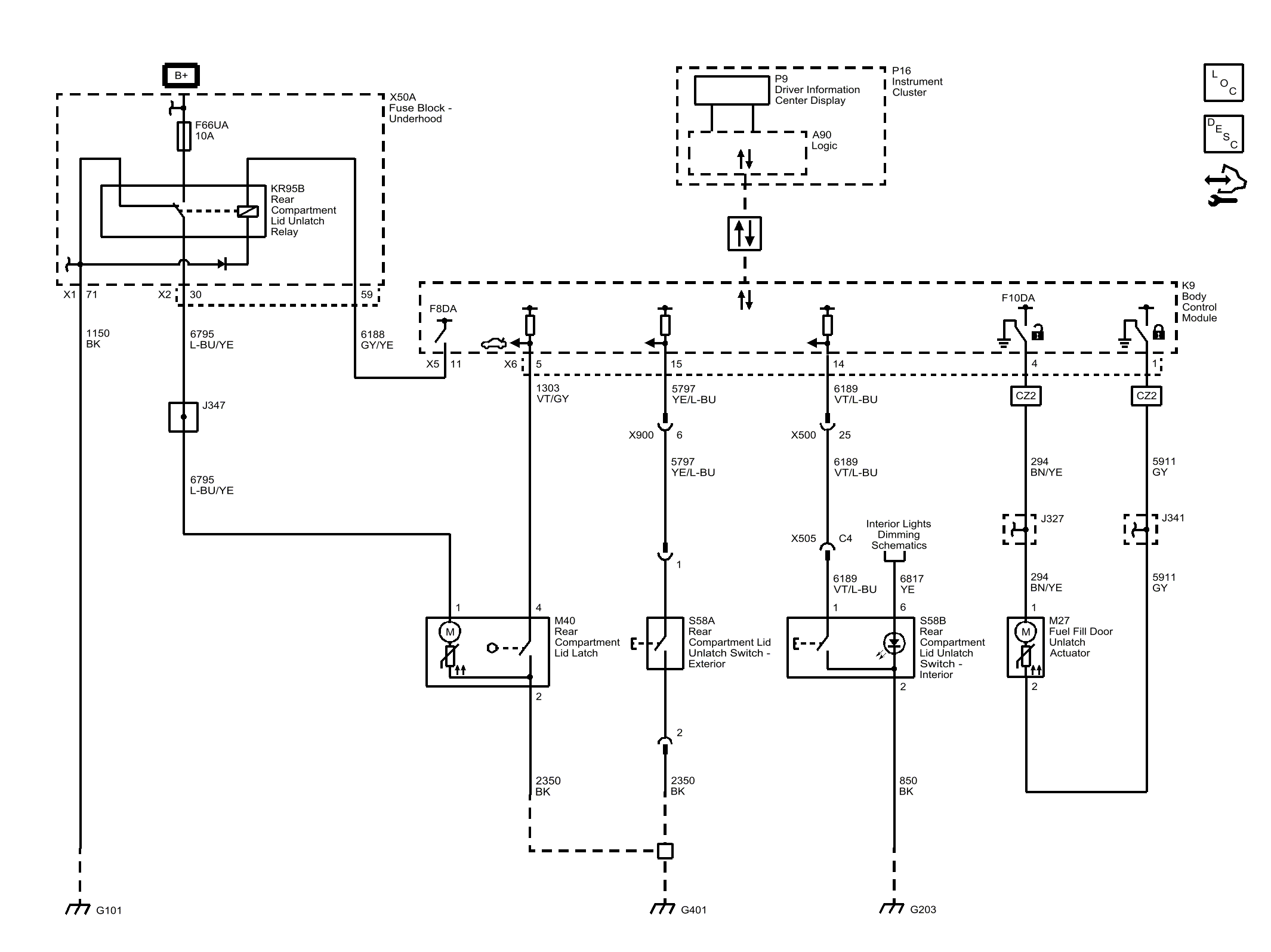

Home >> Cadillac >> 2015 >> XTS Base >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Power Door Lock System And Release Systems >> Schematic Wiring Diagrams >> Release Systems Wiring Schematics >> Rear Compartment
